URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )AX,ZX

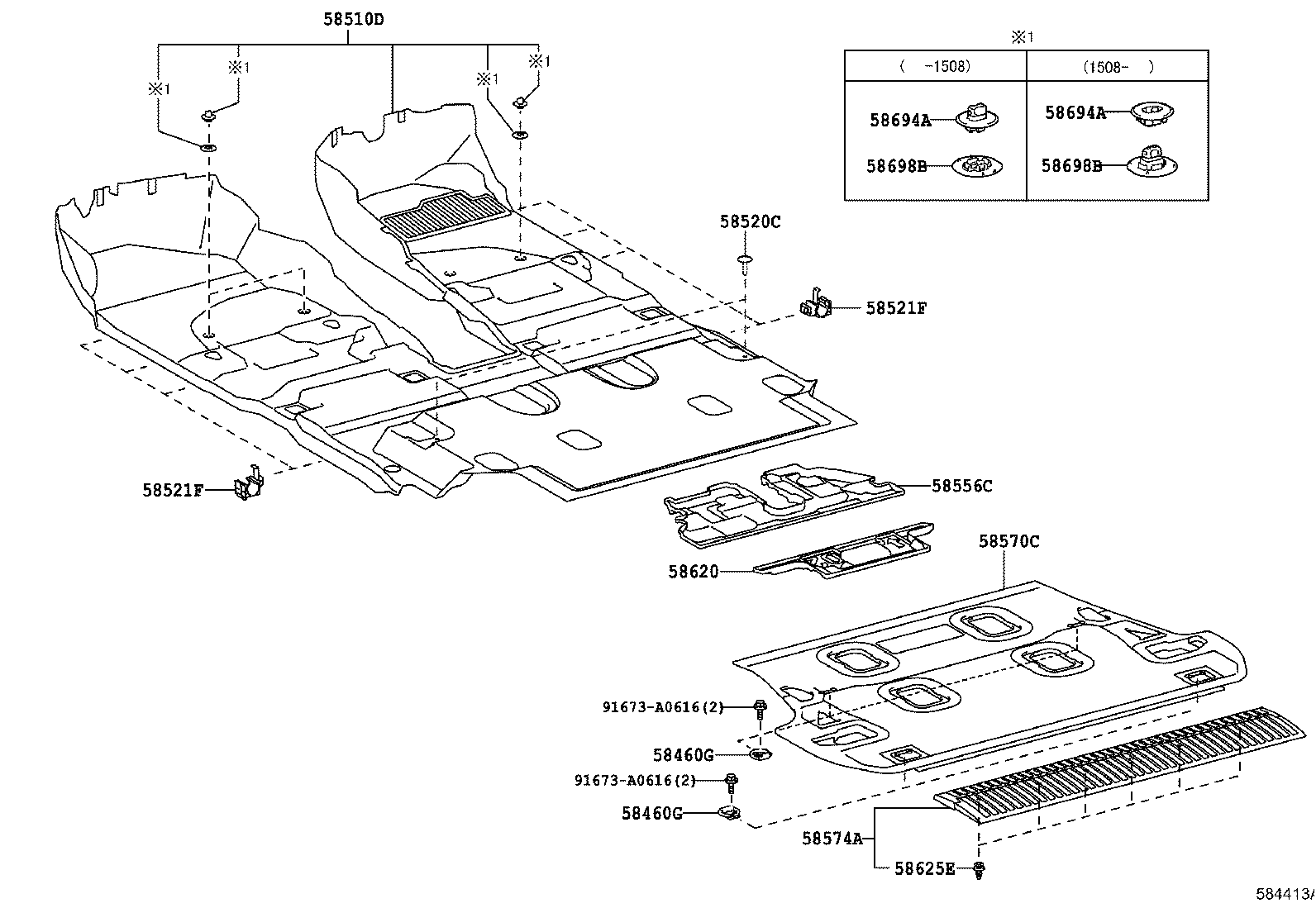

Click highlighted areas on diagram

diagram 58460G 58460G 58510D 58520C 58521F 58521F 58556C 58570C 58574A 58620 58625E 58694A 58694A 58698B 58698B 91673A0616 91673A0616
Part # Description Qty Price
58460G - STRIKER ASSY, LUGGAGE HOLD BELT
58460-35012

URJ202

 4
58460G - STRIKER ASSY, LUGGAGE HOLD BELT
58460-35012

URJ202

 4
58510D - CARPET ASSY, FLOOR, FRONT
58510-60E73B2

URJ202..AX

MD.GRAY,TRIM1#,2#

 1
58510-60E73A1

URJ202..AX,ZX

SHELL,TRIM0#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-05164C0

URJ202

BLACK

 2
58521F - HOOK, FLOOR CARPET
58521-60040

URJ202

 8
58521F - HOOK, FLOOR CARPET
58521-60040

URJ202

 8
58556C - SILENCER, REAR FLOOR
58556-60071

URJ202..AX,ZX

 1
58556-60070

URJ202..AX,ZX

 1
58570C - CARPET ASSY, REAR FLOOR
58570-60A92B1

URJ202..AX

MD.GRAY,TRIM1#,2#

 1
58570-60A92A1

URJ202..AX

SHELL,TRIM0#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-60110A1

URJ202

SHELL,TRIM0#

 1
58574-60110B0

URJ202..AX

MD.GRAY,TRIM1#,2#

 1
58620 - SILENCER, REAR FLOOR
58557-60070

URJ202..AX,ZX

 1
58557-60071

URJ202..AX,ZX

 1
58625E - CLIP(FOR REAR FLOOR MAT PLATE)
90467-09203

URJ202

 6
58694A - PLATE, MAT SET, UPPER
58694-60010A0

URJ202..AX,ZX

IVORY,TRIM0#

 4
58694-60010C0

URJ202..AX

BLACK,TRIM1#,2#

 4
58694A - PLATE, MAT SET, UPPER
58694-60010A0

URJ202..AX,ZX

IVORY,TRIM0#

 4
58694-60010C0

URJ202..AX

BLACK,TRIM1#,2#

 4
58698B - PLATE, MAT SET, LOWER
58698-76010

URJ202..AX,ZX

 4
58698B - PLATE, MAT SET, LOWER
58698-76010

URJ202..AX,ZX

 4
Common parts
91673-A0616
