URJ202W-GNTAK (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1508)

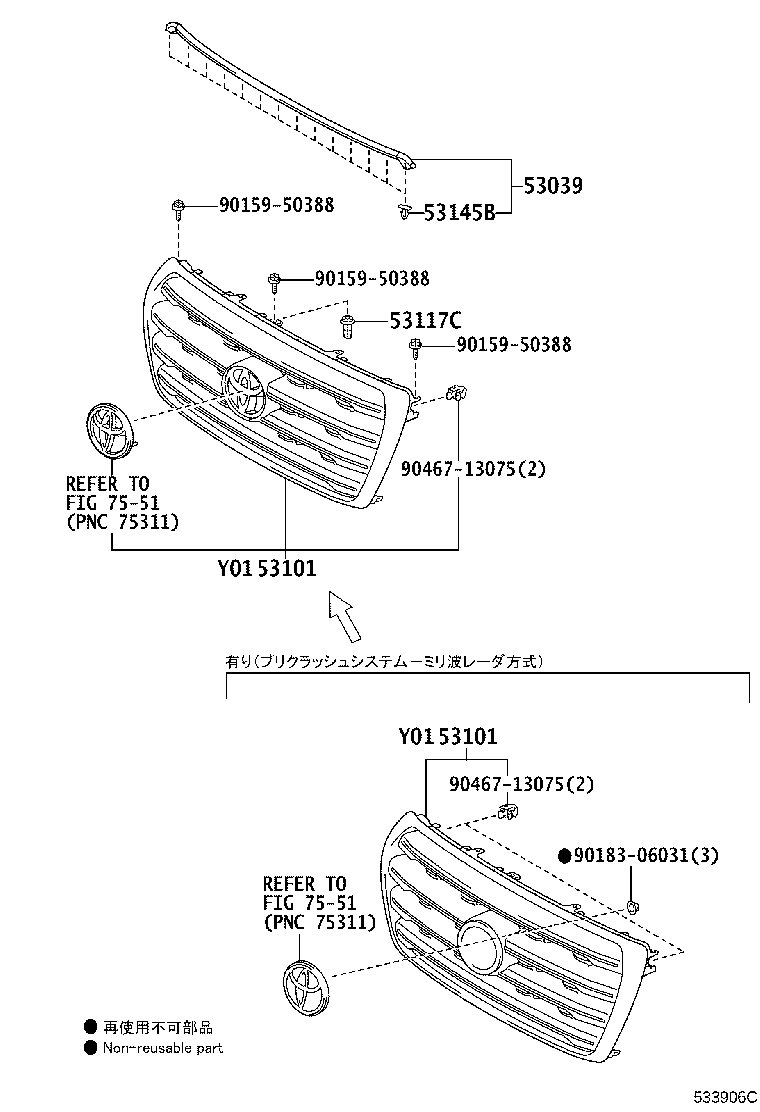

Click highlighted areas on diagram

diagram 53039 53101 53101 53117C 53145B 7551 7551 9015950388 9015950388 9015950388 9018306031 9046713075 9046713075
Part # Description Qty Price
53039 - SEAL, RADIATOR, UPPER
53039-60010

URJ202

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-60A20

URJ202..AX,ZX

ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
53101-60917

URJ202..AX,ZX

ﾒｯｷ,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ

 1
53101-60880

URJ202

ﾒｯｷ

 1
53101-60916

URJ202..AX,ZX

ﾒｯｷ,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ父oｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
53101-60917

URJ202..AX,ZX

ﾒｯｷ,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ父oｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-60A20

URJ202..AX,ZX

ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
53101-60917

URJ202..AX,ZX

ﾒｯｷ,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ

 1
53101-60880

URJ202

ﾒｯｷ

 1
53101-60916

URJ202..AX,ZX

ﾒｯｷ,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ父oｯｸﾓﾆﾀ−ﾌﾛﾝﾄ,ｻｲﾄﾞ X 2 & ｶﾞｲﾄﾞ付き

 1
53101-60917

URJ202..AX,ZX

ﾒｯｷ,ﾌﾟﾘｸﾗｯｼｭｾｰﾌﾃｨｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾌﾟﾘｸﾗｯｼｭﾌﾞﾚｰｷ父oｯｸﾓﾆﾀ−ｶﾞｲﾄﾞ付

 1
53117C - RETAINER, RADIATOR GRILLE, NO.1
53117-60060

URJ202

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-60030

URJ202

 14
Common parts
90159-50388
90183-06031
90467-13075
Linked diagrams
7551
