URJ202W-GNTAK (2012)
Toyota Land Cruiser
Production
Jan 2012
-
Aug 2015
Engine
1URFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0709- )AX,GX ; (0905-1508)ZX

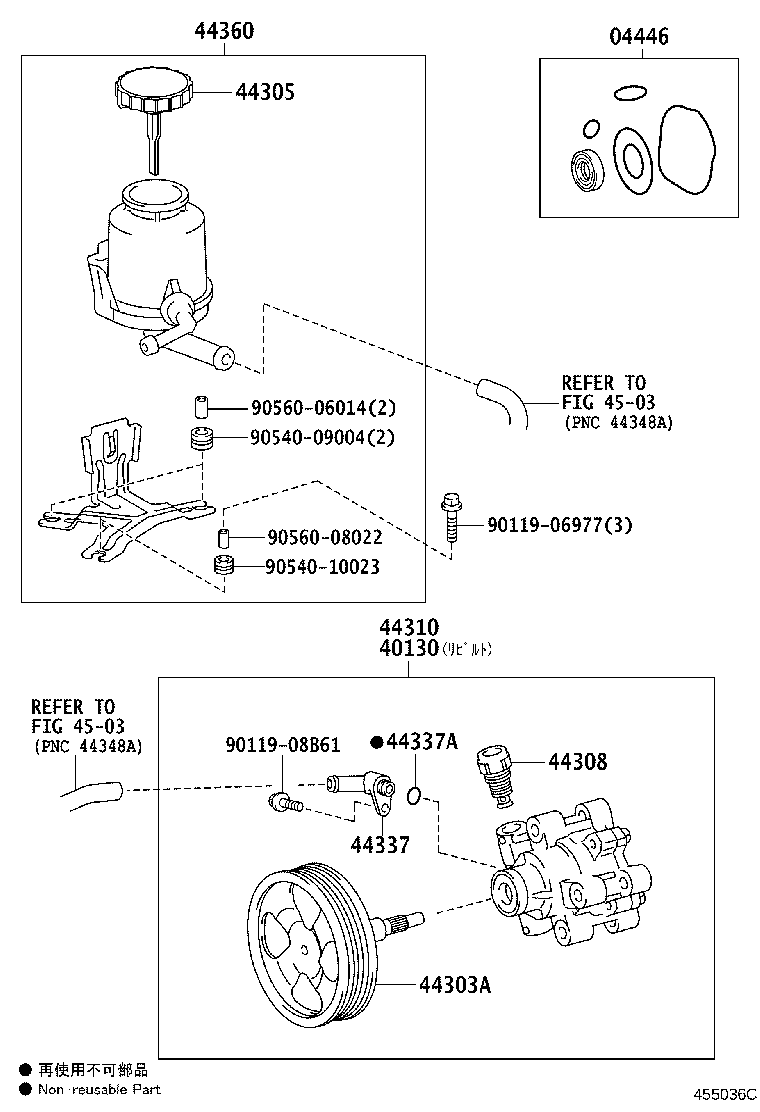

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-60260 |
URJ202 |
1 | ||
| 40130 - PUMP ASSY,VANE REBUILT | ||||
| 40130-60490 |
URJ202 |
1 | ||
| 44303A - SHAFT SUB-ASSY, W/PULLEY | ||||
| 44303-60030 |
URJ202 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-37030 |
URJ202 |
1 | ||
| 44305-37031 |
URJ202 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-60220 |
URJ202 |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-60490 |
URJ202 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-60220 |
URJ202 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-15025 |
URJ202 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-60290 |
URJ202 |
1 | ||
| 44360-60291 |
URJ202 |
1 | ||
| Common parts | ||||
| 90119-06977 | ||||
| 90119-08B61 | ||||
| 90540-09004 | ||||
| 90540-10023 | ||||
| 90560-06014 | ||||
| 90560-08022 | ||||
| Linked diagrams | ||||
| 4503 | ||||
