URJ202W-GNTAK (2012)
Toyota Land Cruiser

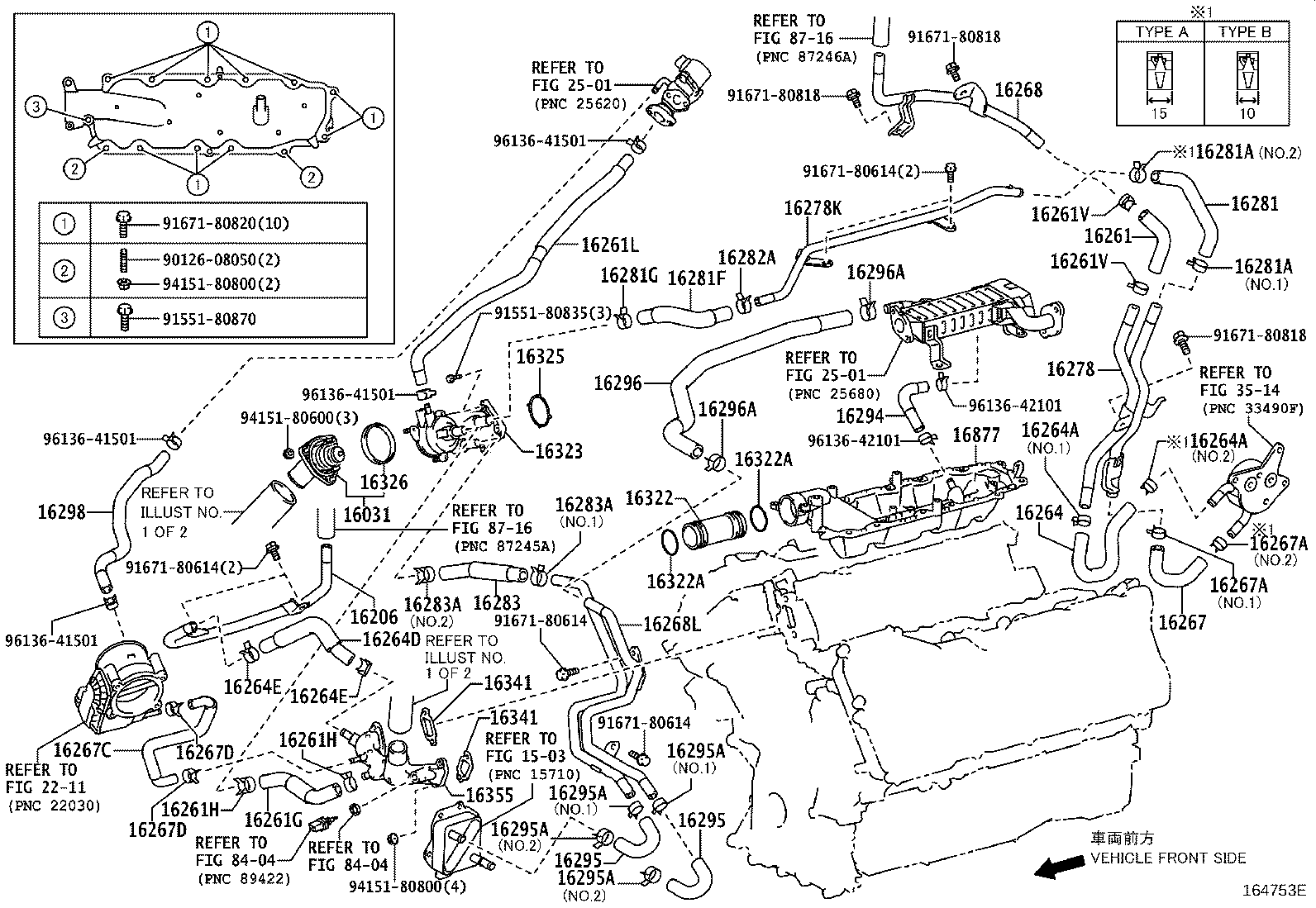

ILLUST NO. 2 OF 2(1201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-38010 |
1URFE..URJ202 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-38070 |
1URFE..URJ202 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-38070 |
1URFE..URJ202 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-38020 |
1URFE..URJ202 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42101 |
1URFE..URJ202 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42101 |
1URFE..URJ202 |
2 | ||
| 16261L - HOSE, WATER BY-PASS | ||||
| 16299-38030 |
1URFE..URJ202 |
1 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1URFE..URJ202 |
2 | ||
| 16261V - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42501 |
1URFE..URJ202 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-38110 |
1URFE..URJ202 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1URFE..URJ202 NO.1 & NO.2 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1URFE..URJ202 NO.1 & NO.2 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-38080 |
1URFE..URJ202 |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1URFE..URJ202 |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-42501 |
1URFE..URJ202 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-38070 |
1URFE..URJ202 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1URFE..URJ202 NO.1 & NO.2 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1URFE..URJ202 NO.1 & NO.2 |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-38010 |
1URFE..URJ202 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1URFE..URJ202 |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1URFE..URJ202 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-38080 |
1URFE..URJ202 |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-38050 |
1URFE..URJ202 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-38050 |
1URFE..URJ202 |
1 | ||
| 16278K - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-38020 |
1URFE..URJ202 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-38060 |
1URFE..URJ202 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
1URFE..URJ202 NO.1 & NO.2 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
1URFE..URJ202 NO.1 & NO.2 |
2 | ||
| 16281F - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-38050 |
1URFE..URJ202 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1URFE..URJ202 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42501 |
1URFE..URJ202 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-38020 |
1URFE..URJ202 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
1URFE..URJ202 NO.2 |
1 | ||
| 96136-52101 |
1URFE..URJ202 NO.1 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
1URFE..URJ202 NO.2 |
1 | ||
| 96136-52101 |
1URFE..URJ202 NO.1 |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16294-38010 |
1URFE..URJ202 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-38010 |
1URFE..URJ202 |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-38010 |
1URFE..URJ202 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-42101 |
1URFE..URJ202 NO.2 |
2 | ||
| 96136-52101 |
1URFE..URJ202 NO.1 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-42101 |
1URFE..URJ202 NO.2 |
2 | ||
| 96136-52101 |
1URFE..URJ202 NO.1 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-42101 |
1URFE..URJ202 NO.2 |
2 | ||
| 96136-52101 |
1URFE..URJ202 NO.1 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-42101 |
1URFE..URJ202 NO.2 |
2 | ||
| 96136-52101 |
1URFE..URJ202 NO.1 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-38040 |
1URFE..URJ202 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42101 |
1URFE..URJ202 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42101 |
1URFE..URJ202 |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-38020 |
1URFE..URJ202 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-38010 |
1URFE..URJ202 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35035 |
1URFE..URJ202 |
2 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35035 |
1URFE..URJ202 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-38050 |
1URFE..URJ202 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-38010 |
1URFE..URJ202 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-38010 |
1URFE..URJ202 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38030 |
1URFE..URJ202 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38030 |
1URFE..URJ202 |
2 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-38040 |
1URFE..URJ202 |
1 | ||
| 16877 - COVER, HEAT EXCHANGER, NO.1 | ||||
| 16870-38050 |
1URFE..URJ202 |
1 | ||
| Common parts | ||||
| 90126-08050 | ||||
| 91551-80835 | ||||
| 91551-80870 | ||||
| 91671-80614 | ||||
| 91671-80818 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 96136-41501 | ||||
| 96136-42101 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 2211 | ||||
| 2501 | ||||
| 3514 | ||||
| 8404 | ||||
| 8716 | ||||
