URJ202W-GNTAK (2009)
Toyota Land Cruiser

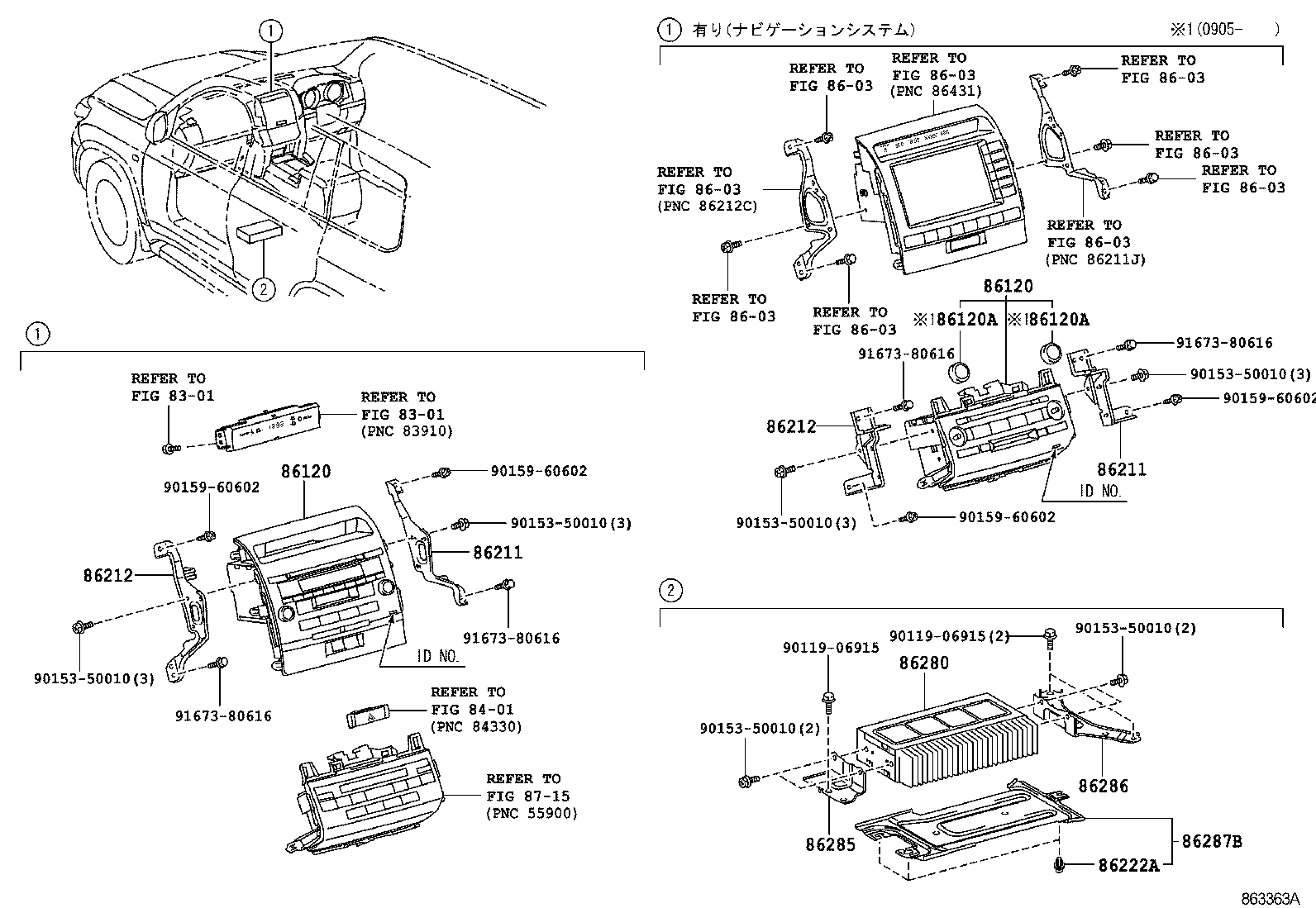

ILLUST NO. 1 OF 3(0709-1201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60F10 |
URJ202..AX PIONEER,ID=P0526,EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD@GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60F10 |
URJ202..AX PIONEER,ID=P0526,EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD@GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22066 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22066 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
2 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60210 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86211-60230 |
URJ202..AX,GX |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60210 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86211-60230 |
URJ202..AX,GX |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60230 |
URJ202..AX,GX |
1 | ||
| 86212-60210 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60230 |
URJ202..AX,GX |
1 | ||
| 86212-60210 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86222A - CLIP, RADIO RECEIVER BRACKET NO.1 | ||||
| 90467-10161 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
3 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-60500 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-60200 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-60070 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-60070 |
URJ202..AX EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 90159-60602 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8301 | ||||
| 8401 | ||||
| 8603 | ||||
| 8715 | ||||
ILLUST NO. 2 OF 3(0905-1201)
USBｼﾞｬｯｸ & ECU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48030 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ |
1 | ||
| 861A1 - COMPUTER, MULTI-MEDIA INTERFACE | ||||
| 861A0-77010 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 861A0-77010 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 861A2 - BRACKET, MULTI-MEDIA INTERFACE, NO.1 | ||||
| 861A2-60040 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 861A3 - BRACKET, MULTI-MEDIA INTERFACE, NO.2 | ||||
| 861A3-60040 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ) |
1 | ||
| 86453A - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-60040 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.1 |
1 | ||
| 86453-60050 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.2 |
1 | ||
| 86453-60060 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.3 |
1 | ||
| 86453A - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-60040 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.1 |
1 | ||
| 86453-60050 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.2 |
1 | ||
| 86453-60060 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.3 |
1 | ||
| 86453A - WIRE, MULTI-MEDIA MODULE | ||||
| 86453-60040 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.1 |
1 | ||
| 86453-60050 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.2 |
1 | ||
| 86453-60060 |
URJ202..AX ｵｰﾃﾞｨｵ(日本仕向け用)−EMVN+DVDﾁｪﾝｼﾞｬ+MD+AM/FM 9ｽﾋﾟｰｶ&EMV & ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(HDD GPS 音声認識 BLUETOOTH ﾃﾞｼﾞﾀﾙﾃﾚﾋﾞ),NO.3 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
