URJ202W-GMTNK (2010)

Toyota Land Cruiser

Production Aug 2010 - Jan 2012
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

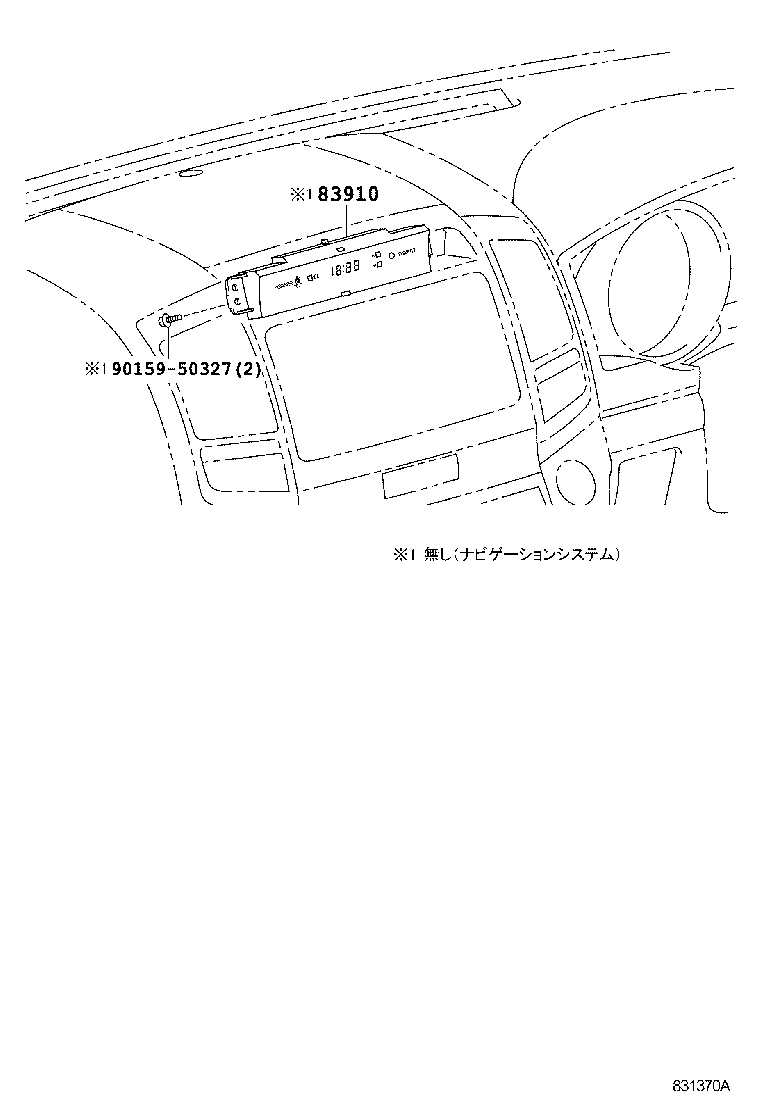

ILLUST NO. 2 OF 2(0709-1508)

Click highlighted areas on diagram

ｸﾛｯｸ

diagram 83910 9015950327
Part # Description Qty Price
83910 - CLOCK ASSY
83910-60220

URJ202..AX,GX

 1
Common parts
90159-50327

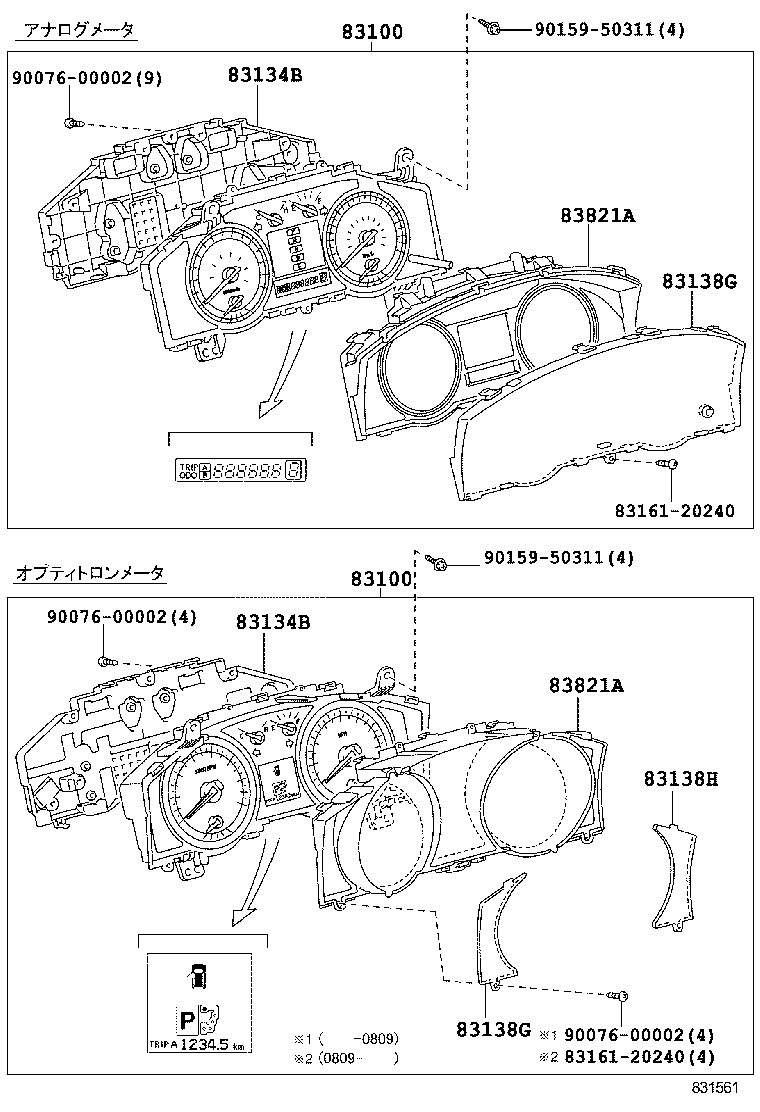

ILLUST NO. 1 OF 2(0709-1201)

Click highlighted areas on diagram

ｺﾝﾋﾞﾈｰｼｮﾝﾒｰﾀ

diagram 83100 83100 83134B 83134B 83138G 83138G 83138H 8316120240 8316120240 83821A 83821A 9007600002 9007600002 9007600002 9015950311 9015950311
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-60X40

URJ202..GX

YAZAKI

 1
83100 - METER ASSY, COMBINATION
83800-60X40

URJ202..GX

YAZAKI

 1
83134B - COVER, COMBINATION METER, NO.2
83822-60J80

URJ202..GX

 1
83134B - COVER, COMBINATION METER, NO.2
83822-60J80

URJ202..GX

 1
83138G - GLASS, COMBINATION METER
83852-60J80

URJ202..GX

 1
83138G - GLASS, COMBINATION METER
83852-60J80

URJ202..GX

 1
83821A - COVER, COMBINATION METER, NO.1
83821-60J80

URJ202..GX

 1
83821A - COVER, COMBINATION METER, NO.1
83821-60J80

URJ202..GX

 1
Common parts
83161-20240
90076-00002
90159-50311
