URJ202W-GMTNK (2015)
Toyota Land Cruiser
Production
Aug 2015
-
Sep 9999
Engine
1URFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1508- )

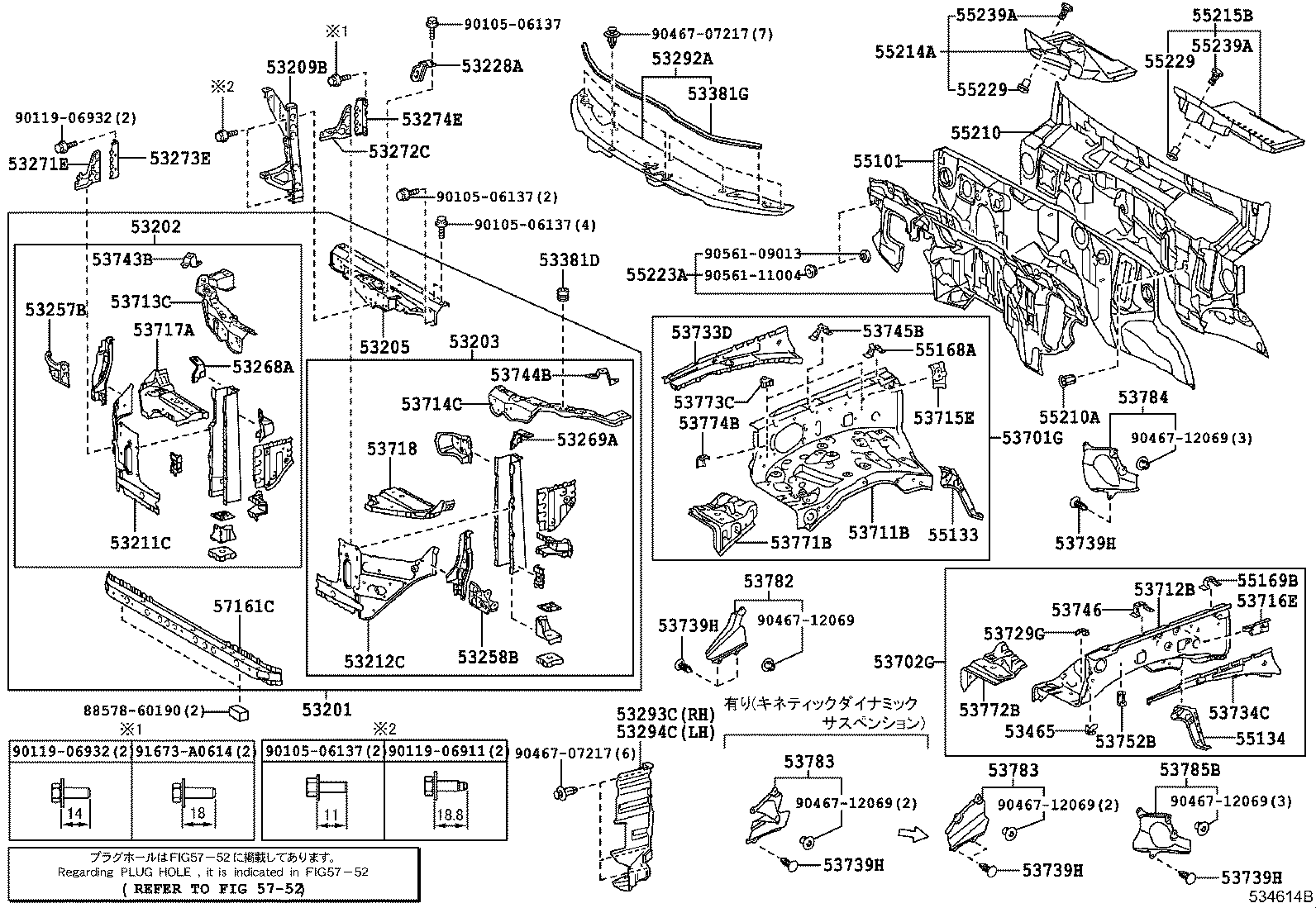

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-60300 |
URJ202 |
1 | ||
| 53201-60330 |
URJ202 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-60260 |
URJ202 |
1 | ||
| 53202-60280 |
URJ202 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-60290 |
URJ202 |
1 | ||
| 53203-60270 |
URJ202 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-60060 |
URJ202 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-60170 |
URJ202 |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-60230 |
URJ202 |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-60190 |
URJ202 |
1 | ||
| 53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1 | ||||
| 53228-60050 |
URJ202 |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-60100 |
URJ202 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-60050 |
URJ202 |
1 | ||
| 53268A - REINFORCEMENT, RADIATOR MOUNTING, RH | ||||
| 53265-60030 |
URJ202 |
1 | ||
| 53269A - REINFORCEMENT, RADIATOR MOUNTING, LH | ||||
| 53266-60010 |
URJ202 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-60080 |
URJ202 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-60080 |
URJ202 |
1 | ||
| 53273E - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-60070 |
URJ202 |
1 | ||
| 53274E - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-60070 |
URJ202 |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-60140 |
URJ202 |
1 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-60170 |
URJ202 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-60170 |
URJ202 |
1 | ||
| 53381D - BUMPER, HOOD TO FRONT SHROUD | ||||
| 53382-60030 |
URJ202 |
2 | ||
| 53381G - SEAL, HOOD TO RADIATOR SUPPORT, NO.1 | ||||
| 53381-60150 |
URJ202 |
1 | ||
| 53465 - BRACKET,WASHER TANK | ||||
| 53753-60010 |
URJ202 |
1 | ||
| 53701G - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-60E70 |
URJ202 |
1 | ||
| 53702G - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-60B30 |
URJ202 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-60A40 |
URJ202 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-60A60 |
URJ202 |
1 | ||
| 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH | ||||
| 53713-60100 |
URJ202 |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-60060 |
URJ202 |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-60040 |
URJ202 |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-60040 |
URJ202 |
1 | ||
| 53717A - PLATE, FENDER APRON | ||||
| 53717-60020 |
URJ202 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-60020 |
URJ202 |
1 | ||
| 53729G - BRACKET, FENDER APRON, LH | ||||
| 53729-60030 |
URJ202 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-60050 |
URJ202 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-60060 |
URJ202 |
1 | ||
| 53739H - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10210 |
URJ202 |
6 | ||
| 90467-10216 |
URJ202 |
6 | ||
| 53739H - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10210 |
URJ202 |
6 | ||
| 90467-10216 |
URJ202 |
6 | ||
| 53739H - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10210 |
URJ202 |
6 | ||
| 90467-10216 |
URJ202 |
6 | ||
| 53739H - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10210 |
URJ202 |
6 | ||
| 90467-10216 |
URJ202 |
6 | ||
| 53739H - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-10210 |
URJ202 |
6 | ||
| 90467-10216 |
URJ202 |
6 | ||
| 53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-60160 |
URJ202 |
1 | ||
| 53743-60110 |
URJ202 |
1 | ||
| 53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-60120 |
URJ202 |
1 | ||
| 53744-60100 |
URJ202 |
1 | ||
| 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH | ||||
| 53745-60070 |
URJ202 |
1 | ||
| 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH | ||||
| 53745-60070 |
URJ202 |
1 | ||
| 53752B - BRACKET, WASHER TANK MOUNTING | ||||
| 53752-60010 |
URJ202 |
1 | ||
| 53771B - SUPPORT, BATTERY CARRIER, RH | ||||
| 53771-60040 |
URJ202 |
1 | ||
| 53772B - SUPPORT, BATTERY CARRIER, LH | ||||
| 53704-60040 |
URJ202 |
1 | ||
| 53773C - BRACKET, AIR CLEANER MOUNTING | ||||
| 53773-60060 |
URJ202 |
2 | ||
| 53774B - BRACKET, AIR CLEANER MOUNTING, NO.2 | ||||
| 53774-60040 |
URJ202 |
1 | ||
| 53782 - PACKING, FRONT FENDER APRON TRIM, A | ||||
| 53781-60020 |
URJ202 |
1 | ||
| 53783 - PACKING, FRONT FENDER APRON TRIM, B | ||||
| 53782-60020 |
URJ202 |
1 | ||
| 53783 - PACKING, FRONT FENDER APRON TRIM, B | ||||
| 53782-60020 |
URJ202 |
1 | ||
| 53784 - PACKING, FRONT FENDER APRON TRIM, C | ||||
| 53783-60110 |
URJ202 |
1 | ||
| 53785B - PACKING, FRONT FENDER APRON TRIM, D | ||||
| 53784-60100 |
URJ202 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-60D00 |
URJ202 |
1 | ||
| 55133 - PLATE, FRONT FENDER APRON SET, LOWER RH | ||||
| 55133-60050 |
URJ202 |
1 | ||
| 55134 - PLATE, FRONT FENDER APRON SET, LOWER LH | ||||
| 55134-60050 |
URJ202 |
1 | ||
| 55168A - BRACKET, FRONT FENDER MOUNTING, RH | ||||
| 55731-60050 |
URJ202 |
1 | ||
| 55169B - BRACKET, FRONT FENDER MOUNTING, LH | ||||
| 55731-60050 |
URJ202 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-60210 |
URJ202 |
1 | ||
| 55210-60211 |
URJ202 |
1 | ||
| 55210A - CLIP | ||||
| 90467-06155 |
URJ202 |
1 | ||
| 55214A - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55215-60040 |
URJ202 |
1 | ||
| 55215B - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55214-60020 |
URJ202 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-60371 |
URJ202 |
1 | ||
| 55223-60370 |
URJ202 |
1 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
URJ202 |
4 | ||
| 55229 - PLATE, DASH PANEL INSULATOR, NO.4 | ||||
| 55229-48010 |
URJ202 |
4 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
URJ202 |
4 | ||
| 55239A - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-48020 |
URJ202 |
4 | ||
| 57161C - MEMBER, FRONT CROSS | ||||
| 57161-60020 |
URJ202 |
1 | ||
| Common parts | ||||
| 88578-60190 | ||||
| 90105-06137 | ||||
| 90119-06911 | ||||
| 90119-06932 | ||||
| 90467-07217 | ||||
| 90467-12069 | ||||
| 90561-09013 | ||||
| 90561-11004 | ||||
| 91673-A0614 | ||||
| Linked diagrams | ||||
| 5752 | ||||
