HDJ101K-RNPGZ (1998)

Toyota Land Cruiser

Production Jan 1998 - Aug 2002
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )VX,VXL

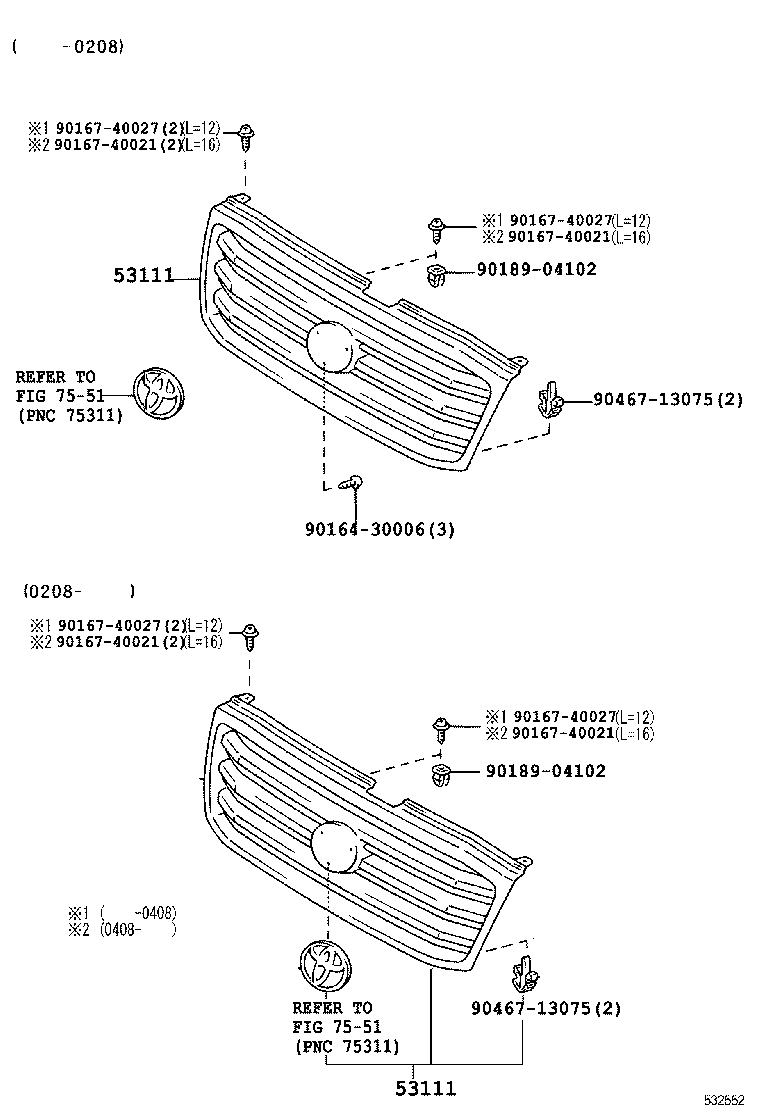

Click highlighted areas on diagram

diagram 53111 53111 7551 7551 9016430006 9016740021 9016740021 9016740021 9016740021 9016740027 9016740027 9016740027 9016740027 9018904102 9018904102 9046713075 9046713075
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-60340

HDJ101,UZJ100..VX,VXL

ﾒｯｷ

 1
53111 - GRILLE, RADIATOR
53111-60340

HDJ101,UZJ100..VX,VXL

ﾒｯｷ

 1
Common parts
90164-30006
90167-40021
90167-40027
90189-04102
90467-13075
Linked diagrams
7551
