HDJ101K-RNPGZ (1998)

Toyota Land Cruiser

Production Jan 1998 - Aug 2002
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0208)ATM

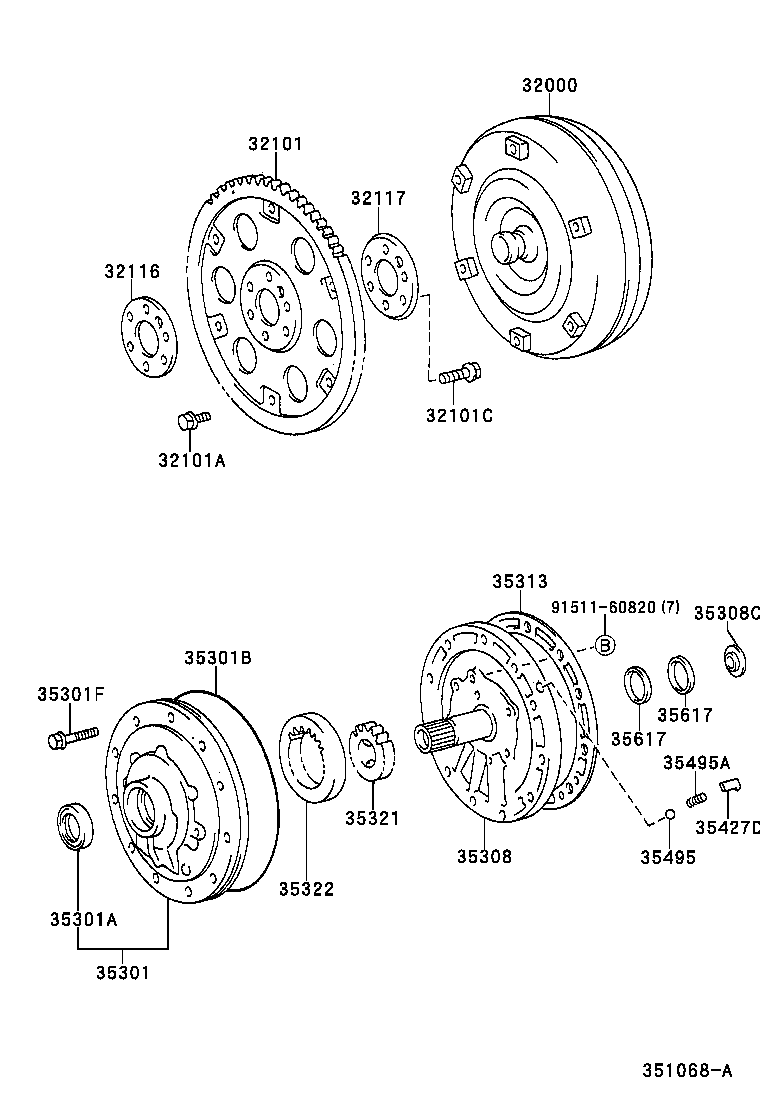

Click highlighted areas on diagram

A442F

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35308 35308C 35313 35321 35322 35427D 35495 35495A 35617 35617 9151160820
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-60200

HDJ101..ATM

 1
32000-60150

HDJ101..ATM

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-60040

HDJ101..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-10790

HDJ101..ATM

*10−1.25PX14−9,ﾌﾞﾗｯｸ

 5
90119-10789

HDJ101..ATM

*10−1.25PX14−9,ｸﾞﾘｰﾝ

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12198

HDJ101..ATM

 8
32117 - SPACER, DRIVE PLATE, REAR
32117-60030

HDJ101..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-60020

HDJ101,UZJ100..ATM

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-42010

HDJ101,UZJ100..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99029

HDJ101,UZJ100..ATM

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08213

HDJ101,UZJ100..ATM

*8−1.25PX60−20

 1
90105-08212

HDJ101,UZJ100..ATM

*8−1.25PX60−30

 10
35308 - COVER SUB-ASSY, FRONT OIL PUMP
35308-60080

HDJ101..ATM

 1
35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
35789-36050

HDJ101,UZJ100..ATM

厚さ=1.0

 1
35789-36040

HDJ101,UZJ100..ATM

厚さ=0.8

 1
35789-36060

HDJ101,UZJ100..ATM

厚さ=1.4

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-60010

HDJ101,UZJ100..ATM

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-60040

HDJ101,UZJ100..ATM

厚さ=13.948−13.962

 1
35321-60080

HDJ101,UZJ100..ATM

厚さ=14.008−14.022

 1
35321-60050

HDJ101,UZJ100..ATM

厚さ=13.963−13.977

 1
35321-60060

HDJ101,UZJ100..ATM

厚さ=13.978−13.992

 1
35321-60070

HDJ101,UZJ100..ATM

厚さ=13.993−14.007

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-60040

HDJ101,UZJ100..ATM

厚さ=13.948−13.962

 1
35322-60050

HDJ101,UZJ100..ATM

厚さ=13.963−13.977

 1
35322-60070

HDJ101,UZJ100..ATM

厚さ=13.993−14.007

 1
35322-60080

HDJ101,UZJ100..ATM

厚さ=14.008−14.022

 1
35322-60060

HDJ101,UZJ100..ATM

厚さ=13.978−13.992

 1
35427D - SEAT, CHECK VALVE SPRING
35427-60010

HDJ101,UZJ100..ATM

 1
35495 - BALL, CHECK
35495-60010

HDJ101,UZJ100..ATM

 1
35495A - SPRING, COMPRESSION (FOR CHECK BALL)
90501-18106

HDJ101,UZJ100..ATM

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60010

HDJ101,UZJ100..ATM

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60010

HDJ101,UZJ100..ATM

 2
Common parts
91511-60820
