HDJ101K-RNMEZ (1998)

Toyota Land Cruiser

Production Jan 1998 - Aug 2002
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0505)VX,VXL

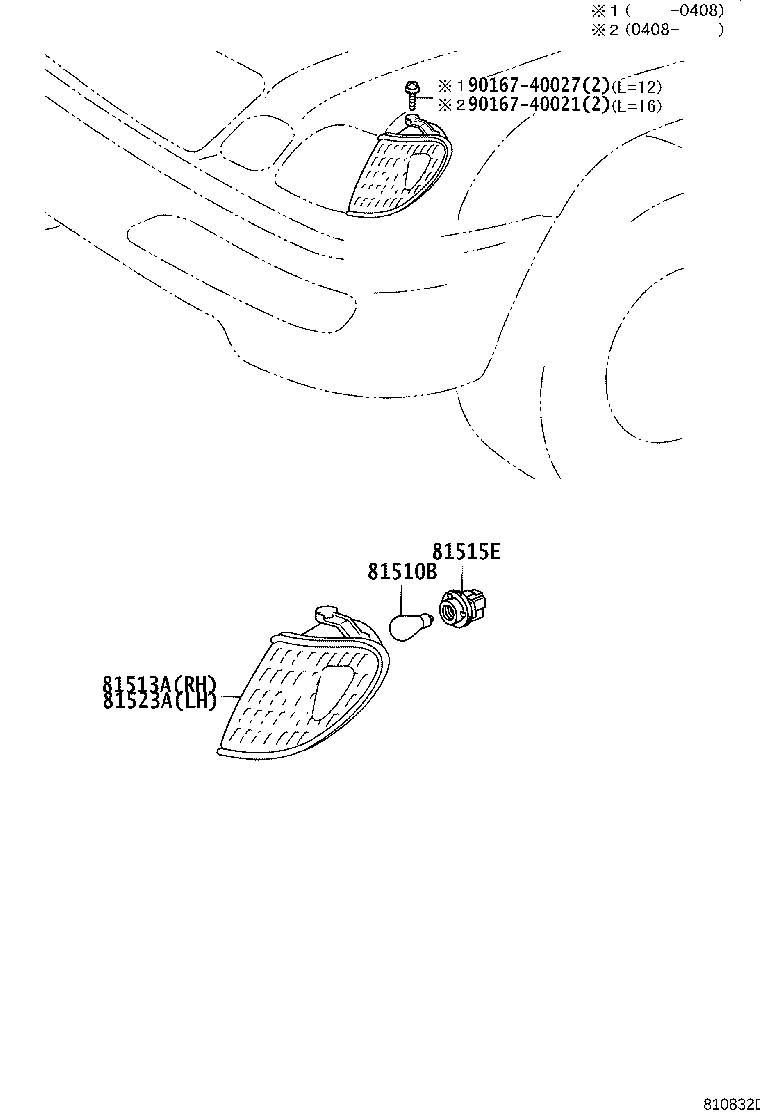

Click highlighted areas on diagram

diagram 81510B 81513A 81515E 81523A 9016740021 9016740027
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009

HDJ101,UZJ100

12V 21W,ｱﾝﾊﾞｰ

 2
81513A - UNIT ASSY, FRONT TURN SIGNAL LAMP, RH
81511-60490

HDJ101,UZJ100..VX,VXL

 1
81515E - SOCKET PLUG ASSY
90075-60006

HDJ101,UZJ100..VX,VXL

 2
81523A - UNIT ASSY, FRONT TURN SIGNAL LAMP, LH
81521-60360

HDJ101,UZJ100..VX,VXL

 1
Common parts
90167-40021
90167-40027
