HDJ101K-RNMEZ (1998)

Toyota Land Cruiser

Production Jan 1998 - Aug 2002
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

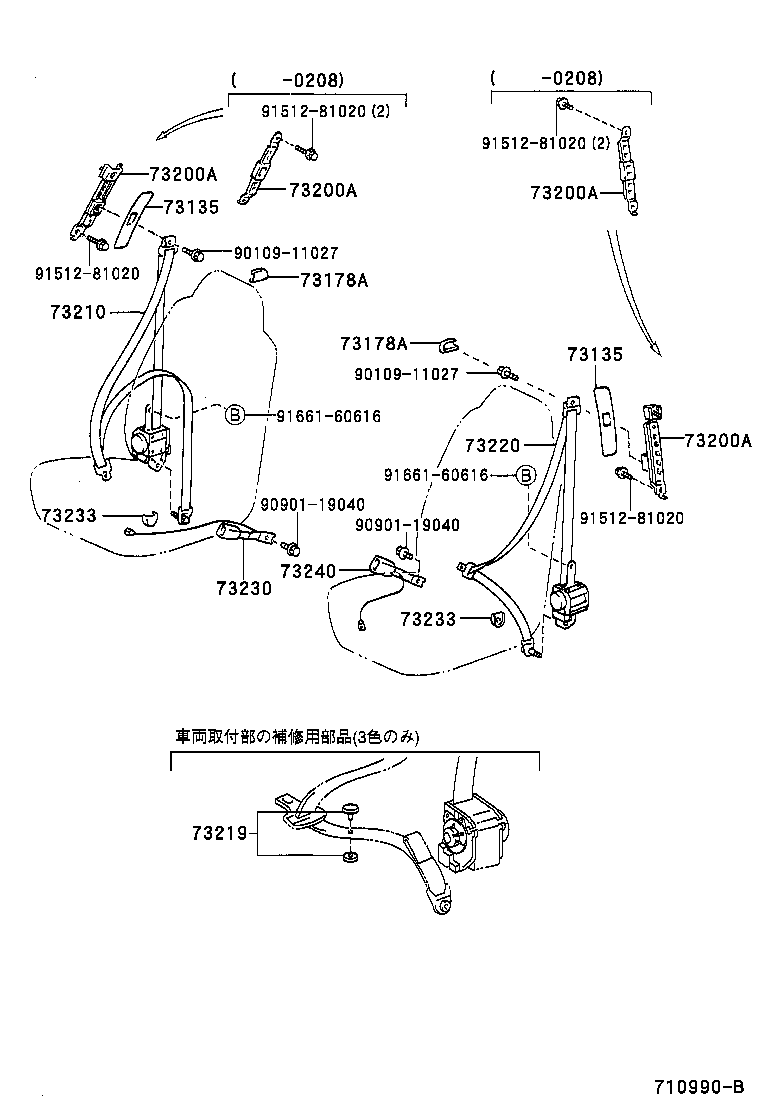

ILLUST NO. 1 OF 3(9801- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼ-ﾄ

diagram 73135 73135 73178A 73178A 73200A 73200A 73200A 73200A 73210 73219 73220 73230 73233 73233 73240 9010911027 9010911027 9090119040 9090119040 9151281020 9151281020 9151281020 9151281020 9166160616 9166160616
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-60010A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 2
73135-60010B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-60010A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 2
73135-60010B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B7

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 2
73178-12040A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-12040B7

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 2
73178-12040A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020C0

HDJ101,UZJ100..VX,VXL

BLACK,TRIM1#,4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020C0

HDJ101,UZJ100..VX,VXL

BLACK,TRIM1#,4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020C0

HDJ101,UZJ100..VX,VXL

BLACK,TRIM1#,4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020C0

HDJ101,UZJ100..VX,VXL

BLACK,TRIM1#,4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-60400A0

HDJ101,UZJ100

IVORY,TRIM4#

 1
73210-60401B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73210-60400B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73210-60402B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73210-60402A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73210-60401A0

HDJ101,UZJ100

IVORY,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-60320A0

HDJ101,UZJ100

IVORY,TRIM4#

 1
73220-60321B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73220-60322A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73220-60322B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73220-60320B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73220-60321A0

HDJ101,UZJ100

IVORY,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-60300B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 1
73230-60300A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B5

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 2
73233-33010A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010B5

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 2
73233-33010A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-60300A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 1
73230-60300B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 1
Common parts
90109-11027
90901-19040
91512-81020
91661-60616

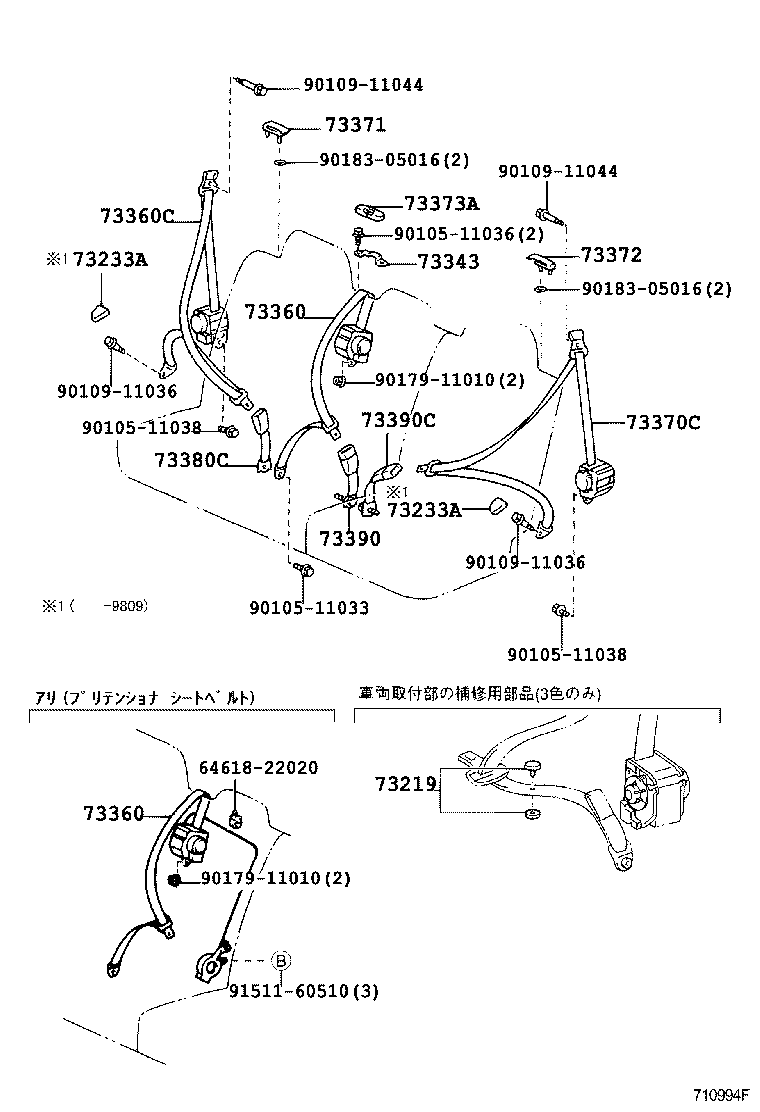

ILLUST NO. 2 OF 3(9801- )VX,VXL

Click highlighted areas on diagram

ｾｶﾝﾄﾞ ｼ-ﾄ

diagram 6461822020 73219 73233A 73233A 73343 73360 73360 73360C 73370C 73371 73372 73373A 73380C 73390 73390C 9010511033 9010511036 9010511038 9010511038 9010911036 9010911036 9010911044 9010911044 9017911010 9017911010 9018305016 9018305016 9151160510
Part # Description Qty Price
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-33010B5

HDJ101,UZJ100

MD.GRAY,TRIM1#

 2
73233-33010A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 2
73233A - COVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
73233-33010B5

HDJ101,UZJ100

MD.GRAY,TRIM1#

 2
73233-33010A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 2
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-60020

HDJ101,UZJ100

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73301-60200A0

HDJ101,UZJ100..VX

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4#

 1
73301-60230A0

HDJ101..VX

IVORY,TRIM4#

 1
73301-60200B0

HDJ101,UZJ100..VX,VXL

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),BLUISH GRAY,TRIM1#

 1
73301-60230B0

HDJ101

BLUISH GRAY,TRIM1#

 1
73301-60231B0

HDJ101

BLUISH GRAY,TRIM1#

 1
73301-60231A0

HDJ101..VX

IVORY,TRIM4#

 1
73301-60201B0

HDJ101,UZJ100..VX,VXL

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),BLUISH GRAY,TRIM1#

 1
73301-60201A0

HDJ101,UZJ100..CYG,VX

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73301-60200A0

HDJ101,UZJ100..VX

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4#

 1
73301-60230A0

HDJ101..VX

IVORY,TRIM4#

 1
73301-60200B0

HDJ101,UZJ100..VX,VXL

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),BLUISH GRAY,TRIM1#

 1
73301-60230B0

HDJ101

BLUISH GRAY,TRIM1#

 1
73301-60231B0

HDJ101

BLUISH GRAY,TRIM1#

 1
73301-60231A0

HDJ101..VX

IVORY,TRIM4#

 1
73301-60201B0

HDJ101,UZJ100..VX,VXL

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),BLUISH GRAY,TRIM1#

 1
73301-60201A0

HDJ101,UZJ100..CYG,VX

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-60331A0

HDJ101,UZJ100..VX,VXL

IVORY,TRIM4#

 1
73360-60330A0

HDJ101,UZJ100

IVORY,TRIM4#

 1
73360-60331B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73360-60330B0

HDJ101,UZJ100

BLUISH GRAY,TRIM1#

 1
73360-60332B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73360-60332A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-60190B0

HDJ101,UZJ100

BLUISH GRAY,TRIM1#

 1
73370-60190A0

HDJ101,UZJ100

IVORY,TRIM4#

 1
73370-60192A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 1
73370-60191A0

HDJ101,UZJ100..VX,VXL

IVORY,TRIM4#

 1
73370-60192B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73370-60191B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-60030A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73371-60030B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-60030B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 1
73371-60030A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73373A - COVER, REAR SEAT SHOULDER BELT, RH
73373-60040B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 1
73373-60040E0

HDJ101,UZJ100..VX

MD.OAK,TRIM4#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-60170A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73380-60170B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73306-60140A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73306-60140B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73380-60180A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73380-60180B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
Common parts
64618-22020
90105-11033
90105-11036
90105-11038
90109-11036
90109-11044
90179-11010
90183-05016
91511-60510

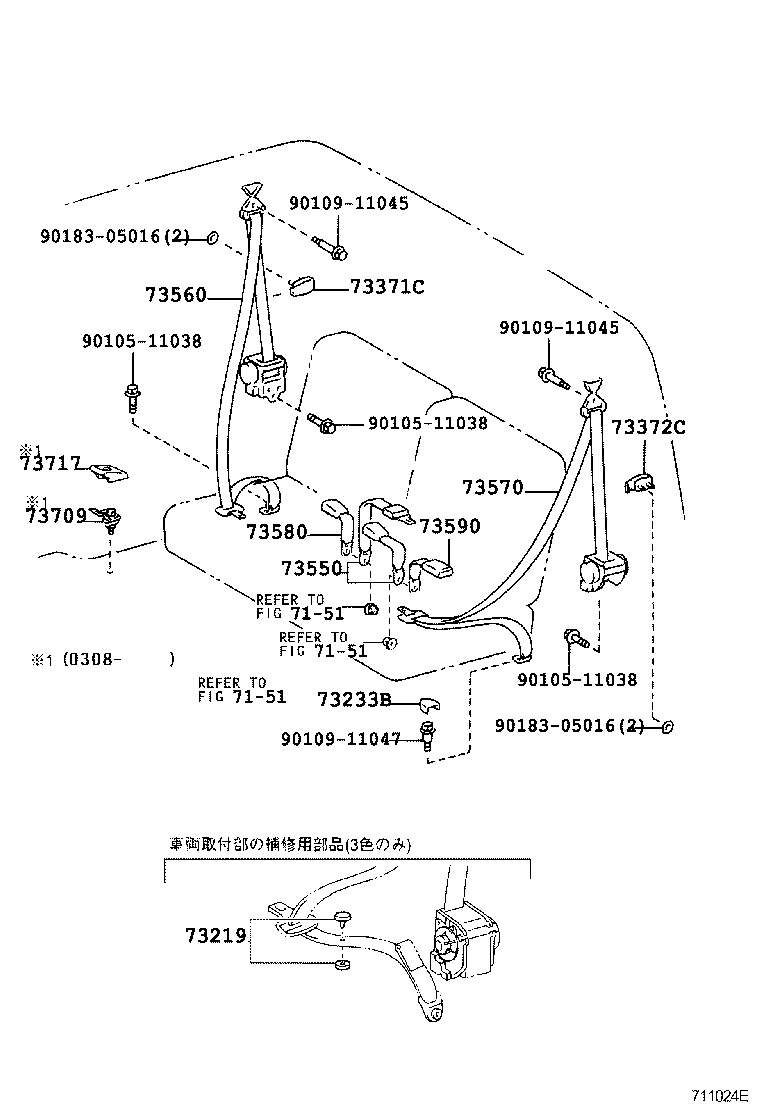

ILLUST NO. 3 OF 3(9801- )

Click highlighted areas on diagram

ｻ-ﾄﾞ ｼ-ﾄ

diagram 7151 7151 7151 73219 73233B 73371C 73372C 73550 73560 73570 73580 73590 73709 73717 9010511038 9010511038 9010511038 9010911045 9010911045 9010911047 9018305016 9018305016
Part # Description Qty Price
Common parts
90105-11038
90109-11045
90109-11047
90183-05016
Linked diagrams
7151

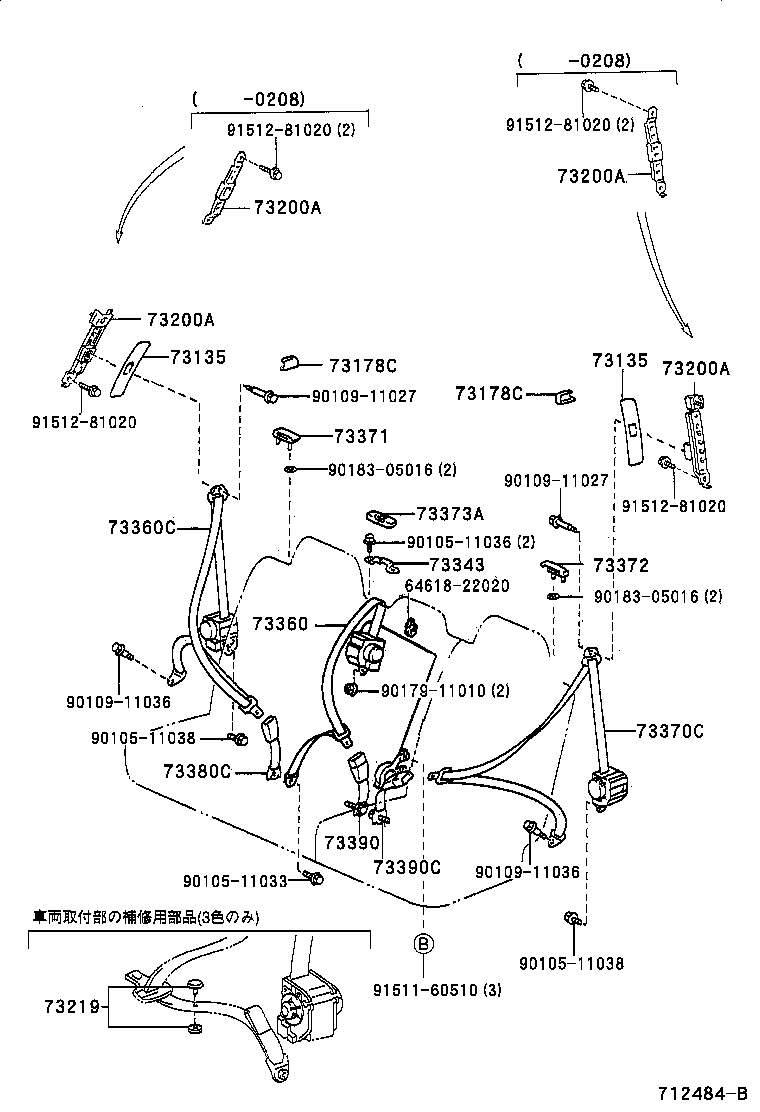

ILLUST NO. 2 OF 3(9901- )

Click highlighted areas on diagram

ｾｶﾝﾄﾞ ｼ-ﾄ ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙ ｼ-ﾄﾍﾞﾙﾄ)

diagram 6461822020 73135 73135 73178C 73178C 73200A 73200A 73200A 73200A 73219 73343 73360 73360C 73370C 73371 73372 73373A 73380C 73390 73390C 9010511033 9010511036 9010511038 9010511038 9010911027 9010911027 9010911036 9010911036 9017911010 9018305016 9018305016 9151160510 9151281020 9151281020 9151281020 9151281020
Part # Description Qty Price
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-60010A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 2
73135-60010B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 2
73135 - COVER, SHOULDER BELT ANCHORAGE PLATE
73135-60010A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 2
73135-60010B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020C0

HDJ101,UZJ100..VX,VXL

BLACK,TRIM1#,4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020C0

HDJ101,UZJ100..VX,VXL

BLACK,TRIM1#,4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020C0

HDJ101,UZJ100..VX,VXL

BLACK,TRIM1#,4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-60020C0

HDJ101,UZJ100..VX,VXL

BLACK,TRIM1#,4#

 2
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-60020

HDJ101,UZJ100

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73301-60200A0

HDJ101,UZJ100..VX

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4#

 1
73301-60230A0

HDJ101..VX

IVORY,TRIM4#

 1
73301-60200B0

HDJ101,UZJ100..VX,VXL

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),BLUISH GRAY,TRIM1#

 1
73301-60230B0

HDJ101

BLUISH GRAY,TRIM1#

 1
73301-60231B0

HDJ101

BLUISH GRAY,TRIM1#

 1
73301-60231A0

HDJ101..VX

IVORY,TRIM4#

 1
73301-60201B0

HDJ101,UZJ100..VX,VXL

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),BLUISH GRAY,TRIM1#

 1
73301-60201A0

HDJ101,UZJ100..CYG,VX

ｱﾘ(ﾌﾟﾘﾃﾝｼﾖﾅ ｼ-ﾄﾍﾞﾙﾄ),IVORY,TRIM4#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-60331A0

HDJ101,UZJ100..VX,VXL

IVORY,TRIM4#

 1
73360-60330A0

HDJ101,UZJ100

IVORY,TRIM4#

 1
73360-60331B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73360-60330B0

HDJ101,UZJ100

BLUISH GRAY,TRIM1#

 1
73360-60332B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73360-60332A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-60190B0

HDJ101,UZJ100

BLUISH GRAY,TRIM1#

 1
73370-60190A0

HDJ101,UZJ100

IVORY,TRIM4#

 1
73370-60192A0

HDJ101,UZJ100..VX

IVORY,TRIM4#

 1
73370-60191A0

HDJ101,UZJ100..VX,VXL

IVORY,TRIM4#

 1
73370-60192B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73370-60191B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73371 - HANGER, REAR SEAT SHOULDER BELT, RH
73371-60030A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73371-60030B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 1
73372 - HANGER, REAR SEAT SHOULDER BELT, LH
73371-60030B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 1
73371-60030A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73373A - COVER, REAR SEAT SHOULDER BELT, RH
73373-60040B0

HDJ101,UZJ100..VX,VXL

MD.GRAY,TRIM1#

 1
73373-60040E0

HDJ101,UZJ100..VX

MD.OAK,TRIM4#

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-60170A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73380-60170B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73306-60140A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73306-60140B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73380-60180A0

HDJ101,UZJ100..CYG,VX

IVORY,TRIM4#

 1
73380-60180B0

HDJ101,UZJ100..VX,VXL

BLUISH GRAY,TRIM1#

 1
Common parts
64618-22020
90105-11033
90105-11036
90105-11038
90109-11027
90109-11036
90179-11010
90183-05016
91511-60510
91512-81020
