HDJ101K-RNMEZ (1998)

Toyota Land Cruiser

Production Jan 1998 - Aug 2002
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0208)VX,VXL

Click highlighted areas on diagram

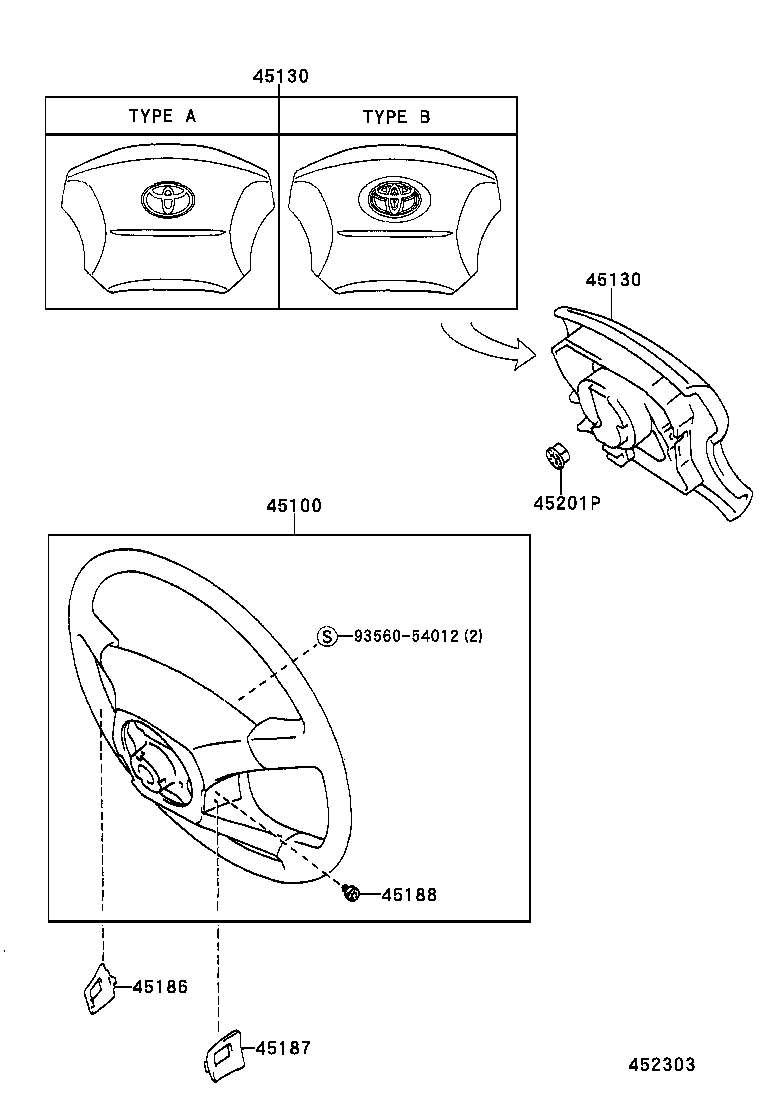

4-SPOKE,URETHANE,W(*80)

diagram 45100 45130 45130 45186 45187 45188 45201P 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60280E0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60390E0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60280B0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1#

 1
45100-60440B0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1#

 1
45100-60440E0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60390B1

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-60180B0

HDJ101,UZJ100..VX,VXL

SHADOW GRAY,TRIM1#

 1
45130-60250B0

HDJ101,UZJ100..VX,VXL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾒﾂｷ ｵ-ﾅﾒﾝﾄ,SHADOW GRAY,TRIM1#

 1
45130-60230B0

HDJ101,UZJ100..VX,VXL

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1#

 1
45130-60180E0

HDJ101,UZJ100

OAK,TRIM4#

 1
45130-60230E0

HDJ101,UZJ100

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,OAK,TRIM4#

 1
45130-60250E0

HDJ101,UZJ100..CYG,VX

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾒﾂｷ ｵ-ﾅﾒﾝﾄ,OAK,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-60180B0

HDJ101,UZJ100..VX,VXL

SHADOW GRAY,TRIM1#

 1
45130-60250B0

HDJ101,UZJ100..VX,VXL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾒﾂｷ ｵ-ﾅﾒﾝﾄ,SHADOW GRAY,TRIM1#

 1
45130-60230B0

HDJ101,UZJ100..VX,VXL

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1#

 1
45130-60180E0

HDJ101,UZJ100

OAK,TRIM4#

 1
45130-60230E0

HDJ101,UZJ100

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,OAK,TRIM4#

 1
45130-60250E0

HDJ101,UZJ100..CYG,VX

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾒﾂｷ ｵ-ﾅﾒﾝﾄ,OAK,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60020E0

HDJ101,UZJ100..VX

OAK,TRIM4#

 1
45186-60020B3

HDJ101,UZJ100..VX

SHADOW GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030B3

HDJ101,UZJ100..VX,VXL

SHADOW GRAY,TRIM1#

 1
45187-50030E0

HDJ101,UZJ100..CYG,VX

OAK,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

HDJ101,UZJ100

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

HDJ101,UZJ100

 1
Common parts
93560-54012

(9801-0208)

Click highlighted areas on diagram

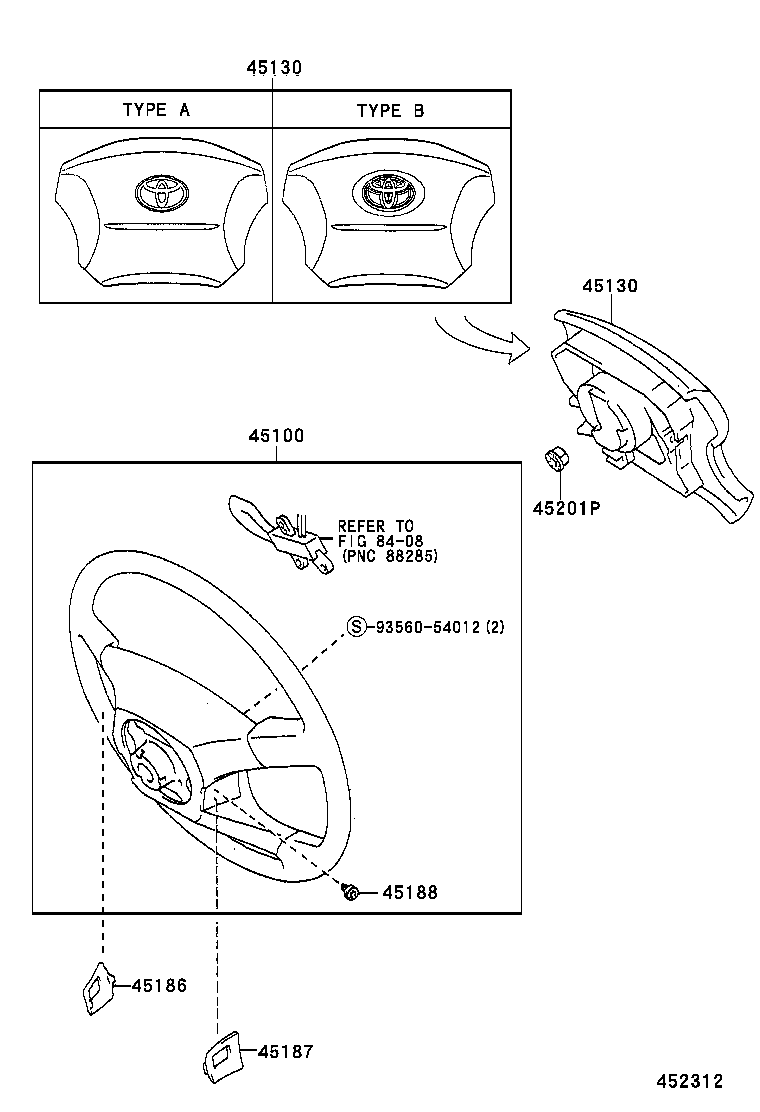

4-SPOKE,LEATHER,W(*80 & *CRC)

diagram 45100 45130 45130 45186 45187 45188 45201P 8408 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60280E0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60390E0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60280B0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1#

 1
45100-60440B0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1#

 1
45100-60440E0

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60390B1

HDJ101,UZJ100..VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SHADOW GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-60180B0

HDJ101,UZJ100..VX,VXL

SHADOW GRAY,TRIM1#

 1
45130-60250B0

HDJ101,UZJ100..VX,VXL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾒﾂｷ ｵ-ﾅﾒﾝﾄ,SHADOW GRAY,TRIM1#

 1
45130-60230B0

HDJ101,UZJ100..VX,VXL

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1#

 1
45130-60180E0

HDJ101,UZJ100

OAK,TRIM4#

 1
45130-60230E0

HDJ101,UZJ100

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,OAK,TRIM4#

 1
45130-60250E0

HDJ101,UZJ100..CYG,VX

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾒﾂｷ ｵ-ﾅﾒﾝﾄ,OAK,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-60180B0

HDJ101,UZJ100..VX,VXL

SHADOW GRAY,TRIM1#

 1
45130-60250B0

HDJ101,UZJ100..VX,VXL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾒﾂｷ ｵ-ﾅﾒﾝﾄ,SHADOW GRAY,TRIM1#

 1
45130-60230B0

HDJ101,UZJ100..VX,VXL

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SHADOW GRAY,TRIM1#

 1
45130-60180E0

HDJ101,UZJ100

OAK,TRIM4#

 1
45130-60230E0

HDJ101,UZJ100

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,OAK,TRIM4#

 1
45130-60250E0

HDJ101,UZJ100..CYG,VX

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ & ﾒﾂｷ ｵ-ﾅﾒﾝﾄ,OAK,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60020E0

HDJ101,UZJ100..VX

OAK,TRIM4#

 1
45186-60020B3

HDJ101,UZJ100..VX

SHADOW GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030B3

HDJ101,UZJ100..VX,VXL

SHADOW GRAY,TRIM1#

 1
45187-50030E0

HDJ101,UZJ100..CYG,VX

OAK,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

HDJ101,UZJ100

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

HDJ101,UZJ100

 1
Common parts
93560-54012
Linked diagrams
8408
