HDJ101K-RNMEZ (1998)

Toyota Land Cruiser

Production Jan 1998 - Aug 2002
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

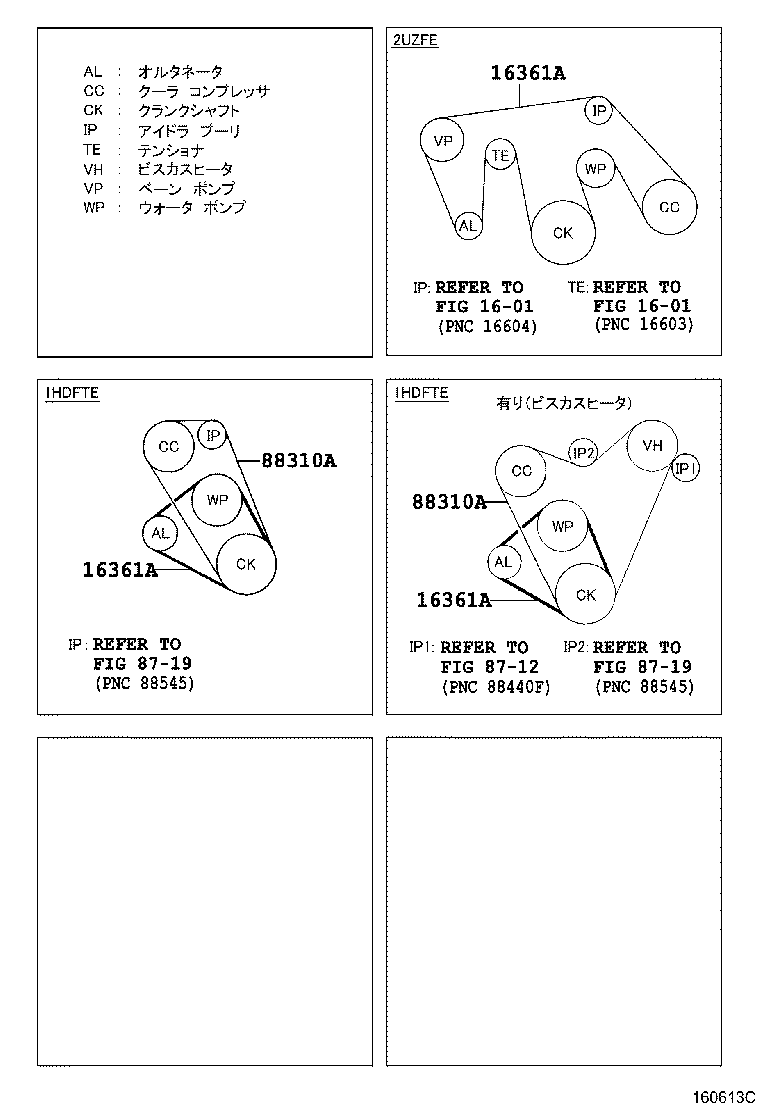

Click highlighted areas on diagram

diagram 1601 1601 16361A 16361A 16361A 8712 8719 8719 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02452

1HDFTE..HDJ101

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02452

1HDFTE..HDJ101

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02452

1HDFTE..HDJ101

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-31240

HDJ101

長さ=1240

 1
99364-31720

HDJ101

長さ=1720,ｱﾘ(ﾋﾞｽｶｽ ﾋ-ﾀ)

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-31240

HDJ101

長さ=1240

 1
99364-31720

HDJ101

長さ=1720,ｱﾘ(ﾋﾞｽｶｽ ﾋ-ﾀ)

 1
Linked diagrams
1601
8712
8719
