HDJ101K-RNMEZ (1998)

Toyota Land Cruiser

Production Jan 1998 - Aug 2002
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )1HDFTE

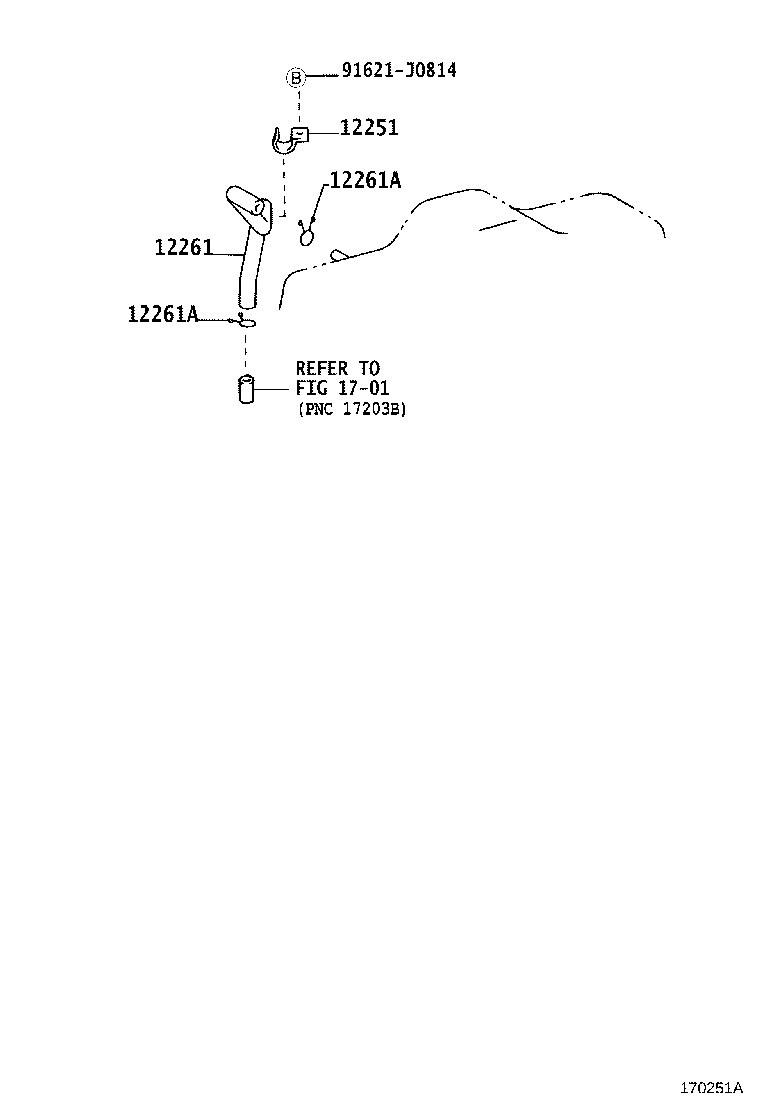

Click highlighted areas on diagram

diagram 12251 12261 12261A 12261A 1701 91621J0814
Part # Description Qty Price
12251 - CLAMP, VENTILATION TUBE
12251-17010

1HDFTE..HDJ101

 1
12261 - HOSE, VENTILATION
12261-17020

1HDFTE..HDJ101

 1
12261-17021

1HDFTE..HDJ101

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1HDFTE..HDJ101

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1HDFTE..HDJ101

 2
Common parts
91621-J0814
Linked diagrams
1701
