GRJ79K-DKMNK (2014)

Toyota Land Cruiser

Production Aug 2014 - Jul 2015
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )

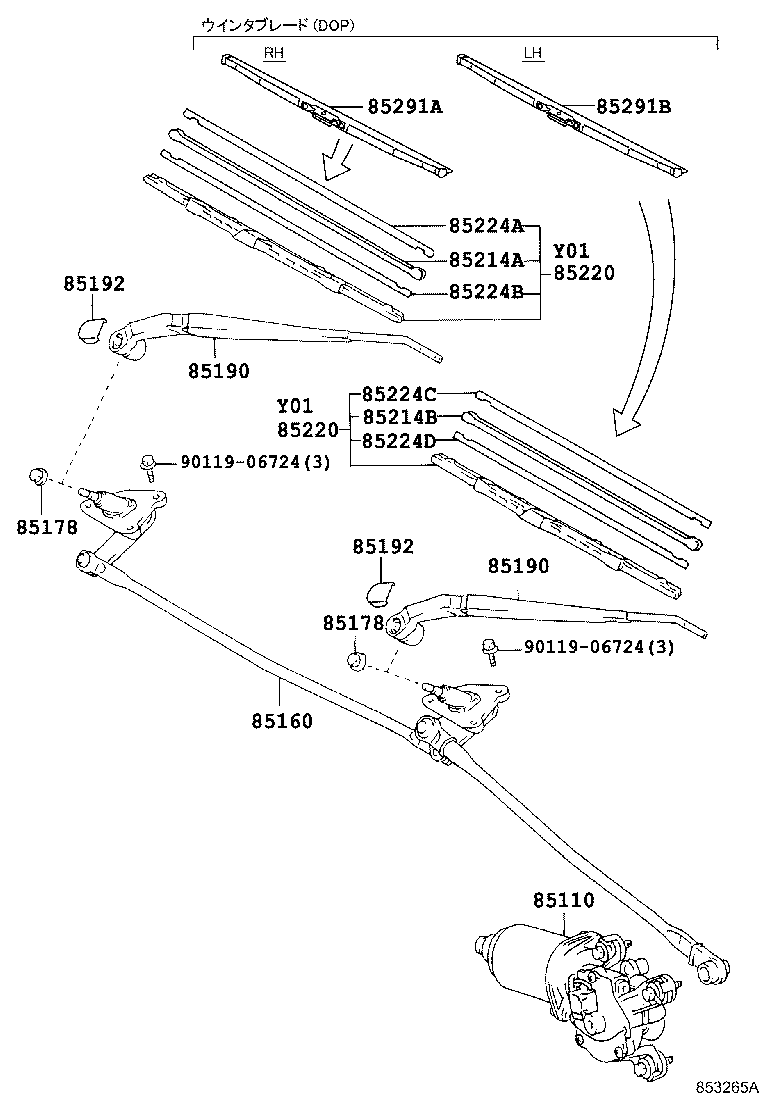

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85190 85190 85192 85192 85214A 85214B 85220 85220 85224A 85224B 85224C 85224D 85291A 85291B 9011906724 9011906724
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-60460

GRJ7#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-60132

GRJ7#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

GRJ7#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

GRJ7#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85221-60072

GRJ7#

左側

 1
85211-60062

GRJ7#

右側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85221-60072

GRJ7#

左側

 1
85211-60062

GRJ7#

右側

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

GRJ7#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

GRJ7#

 2
85214A - RUBBER, WIPER, RH
85214-12301

GRJ7#

 1
85214B - RUBBER, WIPER, LH
85214-50061

GRJ7#

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85222-60052

GRJ7#

左側

 1
85212-60022

GRJ7#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85222-60052

GRJ7#

左側

 1
85212-60022

GRJ7#

右側

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-60140

GRJ7#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-60140

GRJ7#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-60150

GRJ7#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-60150

GRJ7#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-28150

GRJ79

ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−ｳｲﾝﾀﾌﾞﾚｰﾄﾞ(DOP,ﾌﾛﾝﾄのみ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-28150

GRJ79

ﾜｲﾊﾟｰ ﾌﾞﾚｰﾄﾞ−ｳｲﾝﾀﾌﾞﾚｰﾄﾞ(DOP,ﾌﾛﾝﾄのみ)

 1
Common parts
90119-06724
