GRJ79K-DKMNK (2014)

Toyota Land Cruiser

Production Aug 2014 - Jul 2015
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

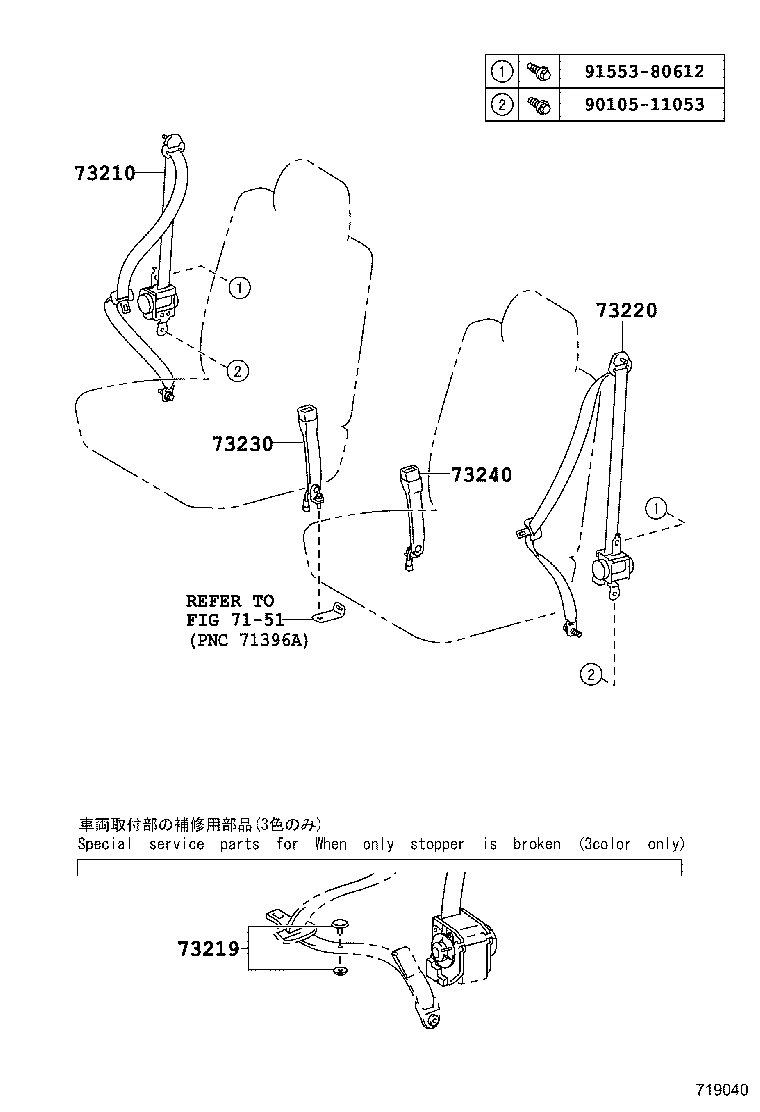

ILLUST NO. 1 OF 2(1408- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄ ﾍﾞﾙﾄ

diagram 7151 73210 73219 73220 73230 73240 9010511053 9155380612
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-60602C0

GRJ7#

BLACK,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

GRJ7#

ﾍﾞｰｼﾞｭ

 1
73219-33020

GRJ7#

ｸﾞﾚｰ

 1
73219-33010

GRJ7#

ﾌﾞﾗｯｸ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-60492C0

GRJ7#

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-60153C0

GRJ7#

BLACK,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-60183C0

GRJ7#

BLACK,TRIM1#

 1
Common parts
90105-11053
91553-80612
Linked diagrams
7151

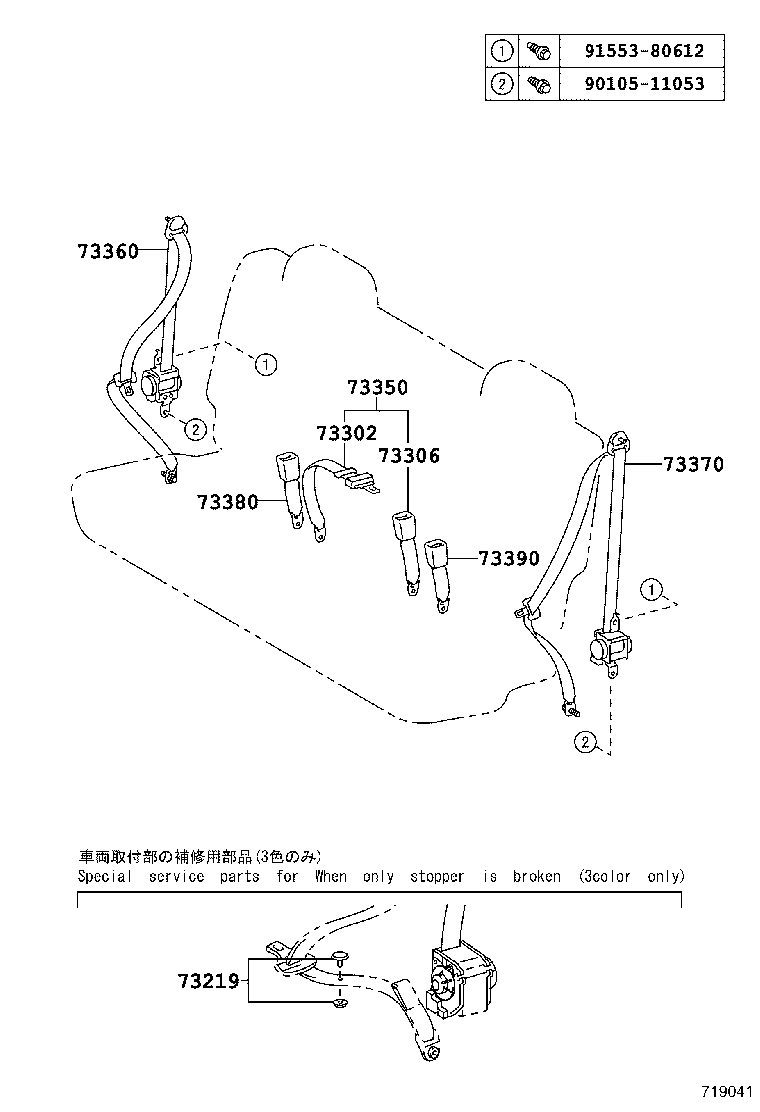

ILLUST NO. 2 OF 2(1408- )

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ ﾍﾞﾙﾄ

diagram 73219 73302 73306 73350 73360 73370 73380 73390 9010511053 9155380612
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33030

GRJ7#

ﾍﾞｰｼﾞｭ

 1
73219-33020

GRJ7#

ｸﾞﾚｰ

 1
73219-33010

GRJ7#

ﾌﾞﾗｯｸ

 1
73302 - BELT SUB-ASSY, REAR SEAT OUTER
73301-60251C0

GRJ7#

BLACK,TRIM1#

 1
73306 - BELT SUB-ASSY SEAT, INNER
73306-60102C0

GRJ7#

BLACK,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-60251C0

GRJ7#

BLACK,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-60462C0

GRJ7#

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-60462C0

GRJ7#

BLACK,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-60210C0

GRJ7#

BLACK,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-60210C0

GRJ7#

BLACK,TRIM1#

 1
Common parts
90105-11053
91553-80612
