GRJ79K-DKMNK (2014)

Toyota Land Cruiser

Production Aug 2014 - Jul 2015
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )

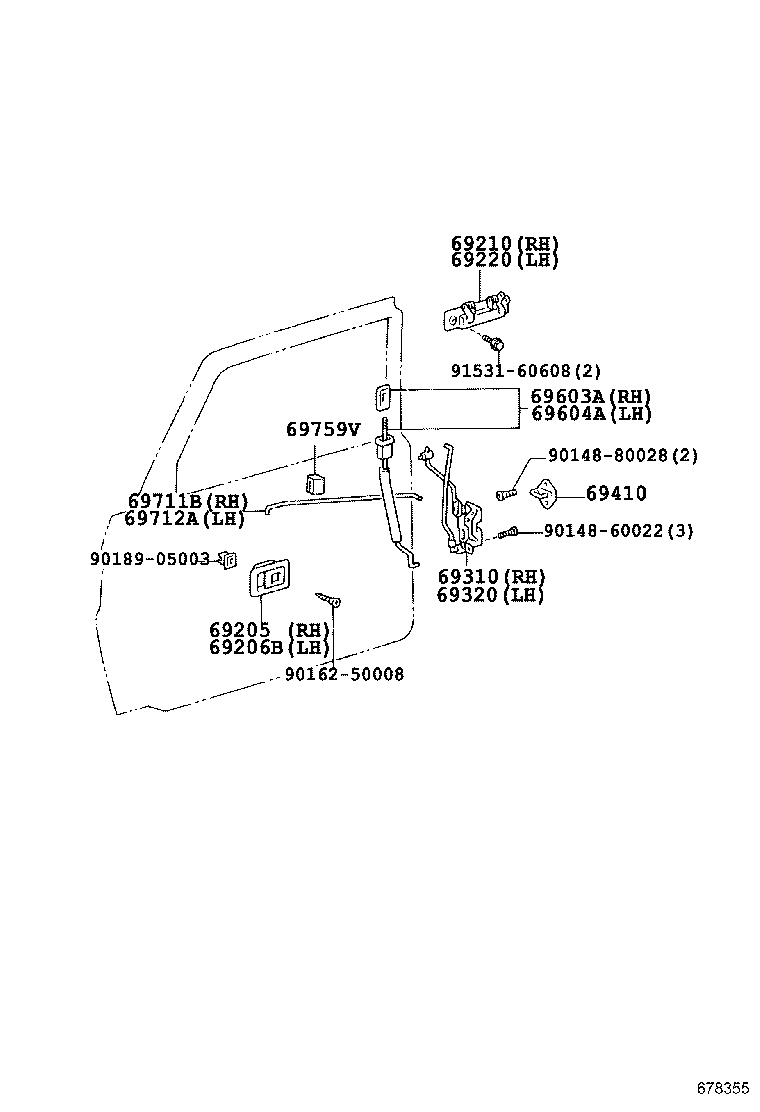

Click highlighted areas on diagram

diagram 69205 69206B 69210 69220 69310 69320 69410 69603A 69604A 69711B 69712A 69759V 9014860022 9014880028 9016250008 9018905003 9153160608
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20040B1

GRJ7#

BLUE GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20040B1

GRJ7#

BLUE GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-90K00

GRJ7#

ﾒｯｷ

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-90K00

GRJ7#

ﾒｯｷ

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-60270

GRJ7#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-60142

GRJ7#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

GRJ7#

 2
69603A - ROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69603-60010C0

GRJ7#

BLACK,TRIM1#

 1
69604A - ROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69604-60010C0

GRJ7#

BLACK,TRIM1#

 1
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-60020

GRJ7#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-60020

GRJ7#

 1
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-30021

GRJ7#

 2
Common parts
90148-60022
90148-80028
90162-50008
90189-05003
91531-60608
