GRJ79K-DKMNK (2014)
Toyota Land Cruiser

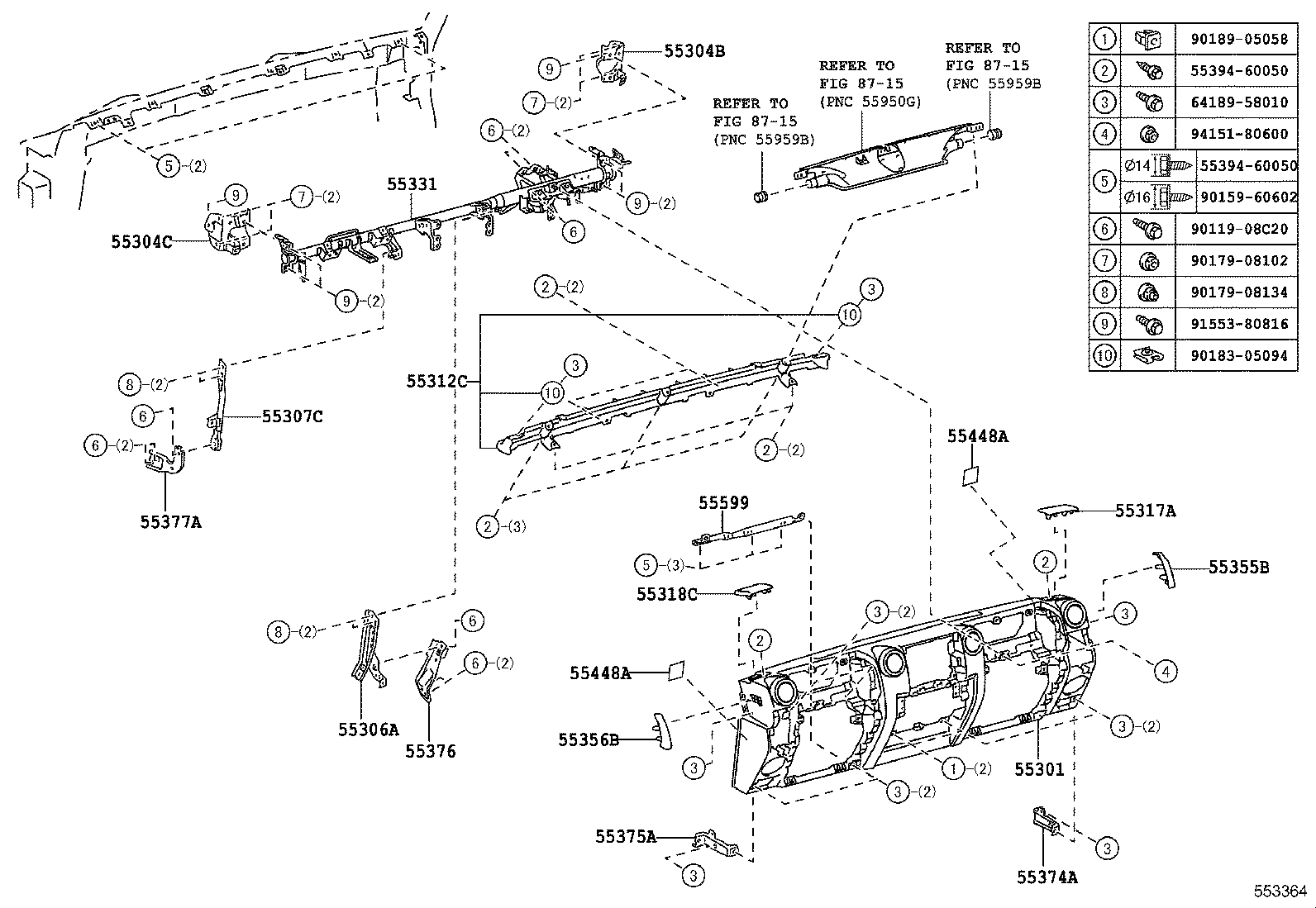

ILLUST NO. 1 OF 2(1408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-60A40B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55304B - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-60051 |
GRJ7# |
1 | ||
| 55304C - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-60061 |
GRJ7# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-60170 |
GRJ7# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-60110 |
GRJ7# |
1 | ||
| 55312C - PLATE, INSTRUMENT RETAINER | ||||
| 55312-60091 |
GRJ7# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-60070B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-60160B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-60370 |
GRJ7# |
1 | ||
| 55355B - PLATE, INSTRUMENT PANEL, RH | ||||
| 55355-60220B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55356B - PLATE, INSTRUMENT PANEL, LH | ||||
| 55356-60160B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-60131 |
GRJ7# |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-60141 |
GRJ7# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-60120 |
GRJ7# |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-60150 |
GRJ7# |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60080 |
GRJ7# |
2 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60080 |
GRJ7# |
2 | ||
| 55599 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, LH | ||||
| 55599-60010 |
GRJ7# |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 64189-58010 | ||||
| 90119-08C20 | ||||
| 90159-60602 | ||||
| 90179-08102 | ||||
| 90179-08134 | ||||
| 90183-05094 | ||||
| 90189-05058 | ||||
| 91553-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8715 | ||||

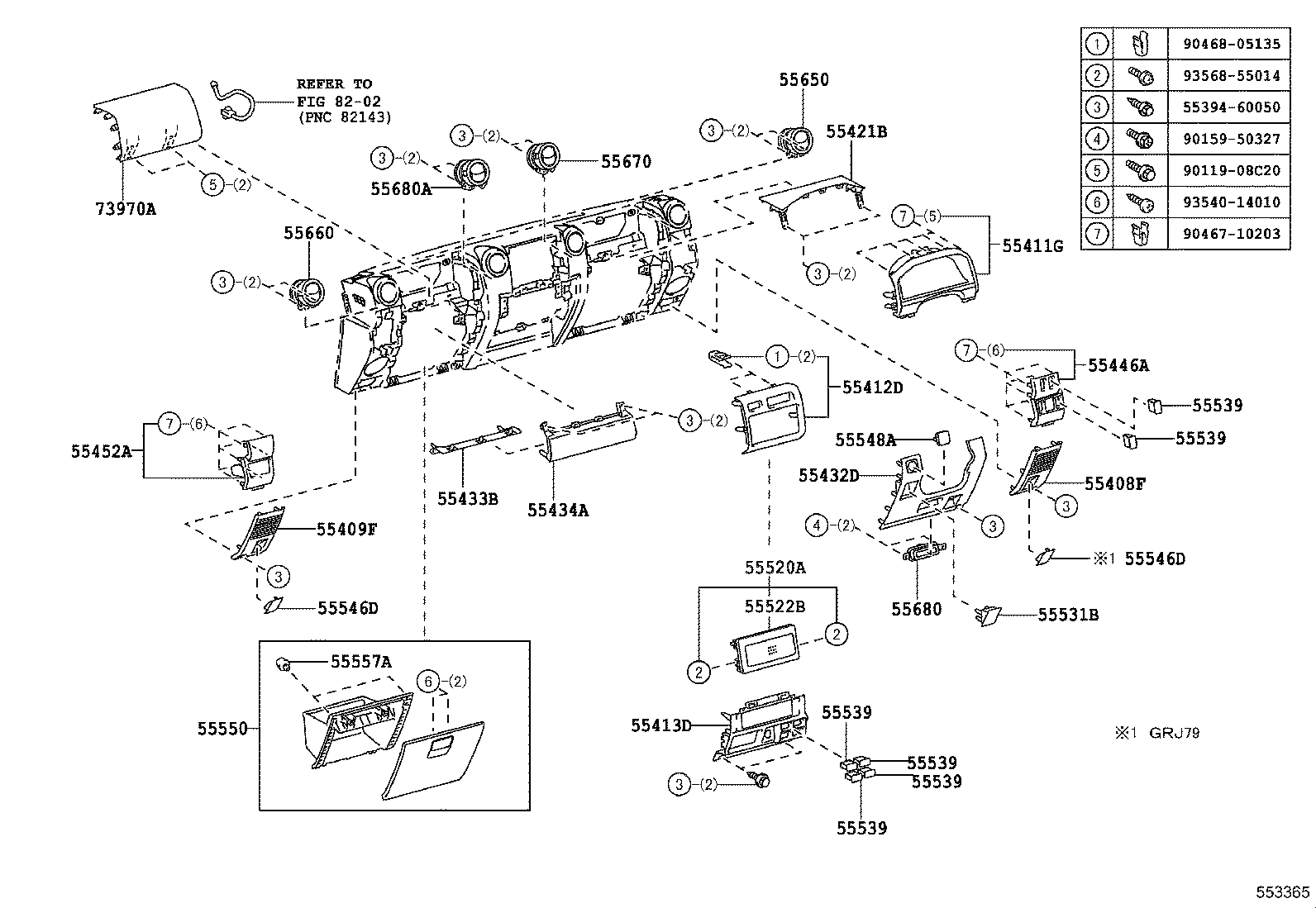

ILLUST NO. 2 OF 2(1408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-60170B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-60120B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-60350B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60380 |
GRJ7# |
1 | ||
| 55412-60380 |
GRJ7# ｵｰﾃﾞｨｵ(日本仕向け用)−有り(ｶﾊﾞｰ) |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-60300 |
GRJ7# |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60140B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60480B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60150B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55434-60030B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60150B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-60400B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55520A - COVER ASSY, STEREO OPENING | ||||
| 55520-47020 |
GRJ7# ｵｰﾃﾞｨｵ(日本仕向け用)−有り(ｶﾊﾞｰ) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
GRJ7# ｵｰﾃﾞｨｵ(日本仕向け用)−有り(ｶﾊﾞｰ) |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-60060B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-48030C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55546D - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55546-60010B0 |
GRJ79 BLUISH GRAY,TRIM1# |
2 | ||
| 55546D - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55546-60010B0 |
GRJ79 BLUISH GRAY,TRIM1# |
2 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-60040C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55548-60040C0 |
GRJ79 ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−最終減速比=4.300,4P,ﾃﾞﾌﾛｯｸ,BLACK,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-60240B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
GRJ7# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60200C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-60200C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60240C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-32010 |
GRJ7# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60160C0 |
GRJ7# BLACK,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-60030B0 |
GRJ7# BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 90119-08C20 | ||||
| 90159-50327 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93540-14010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
