GRJ79K-DKMNK (2014)

Toyota Land Cruiser

Production Aug 2014 - Jul 2015
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1408- )

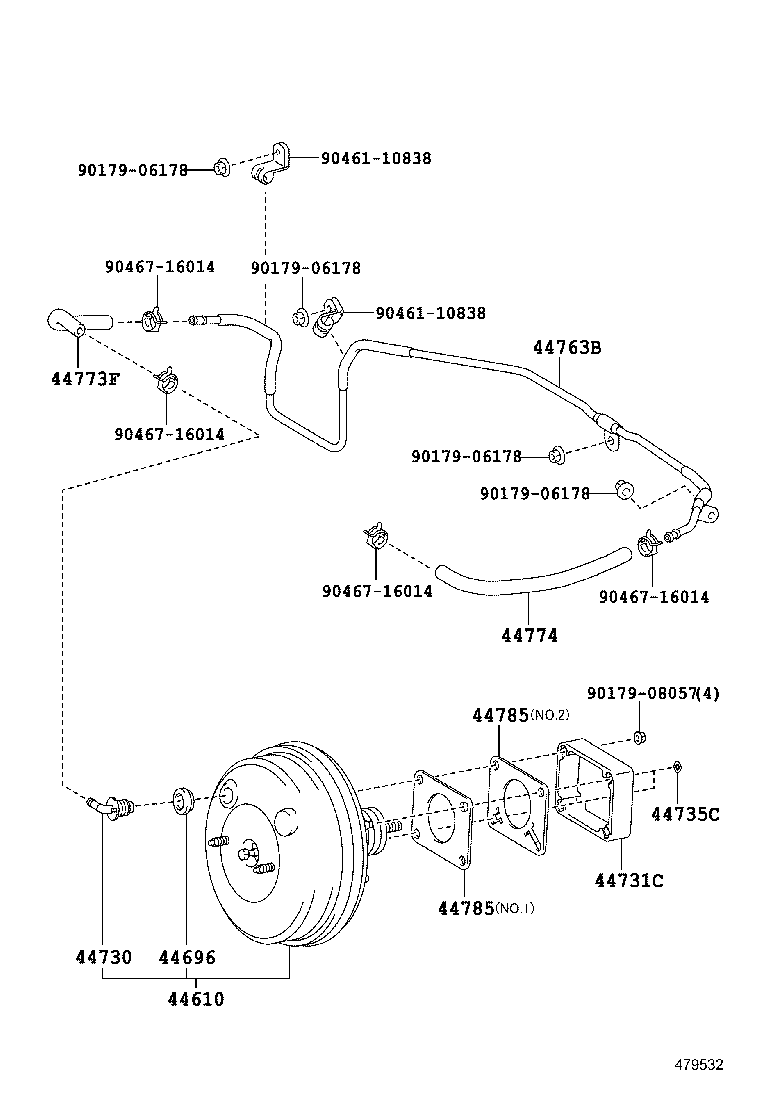

Click highlighted areas on diagram

diagram 44610 44696 44730 44731C 44735C 44763B 44773F 44774 44785 44785 9017906178 9017906178 9017906178 9017906178 9017908057 9046110838 9046110838 9046716014 9046716014 9046716014 9046716014
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-6A360

GRJ7#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GRJ7#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

GRJ7#

 1
44731C - BRACKET, BRAKE BOOSTER
44731-60020

GRJ7#

 1
44735C - RING, BOOSTER BRACKET STOPPER
44735-30010

GRJ7#

 2
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44763-60220

GRJ7#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-60370

GRJ7#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60350

GRJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

GRJ7#

NO.1

 1
44785-35030

GRJ7#

NO.2

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

GRJ7#

NO.1

 1
44785-35030

GRJ7#

NO.2

 1
Common parts
90179-06178
90179-08057
90461-10838
90467-16014
