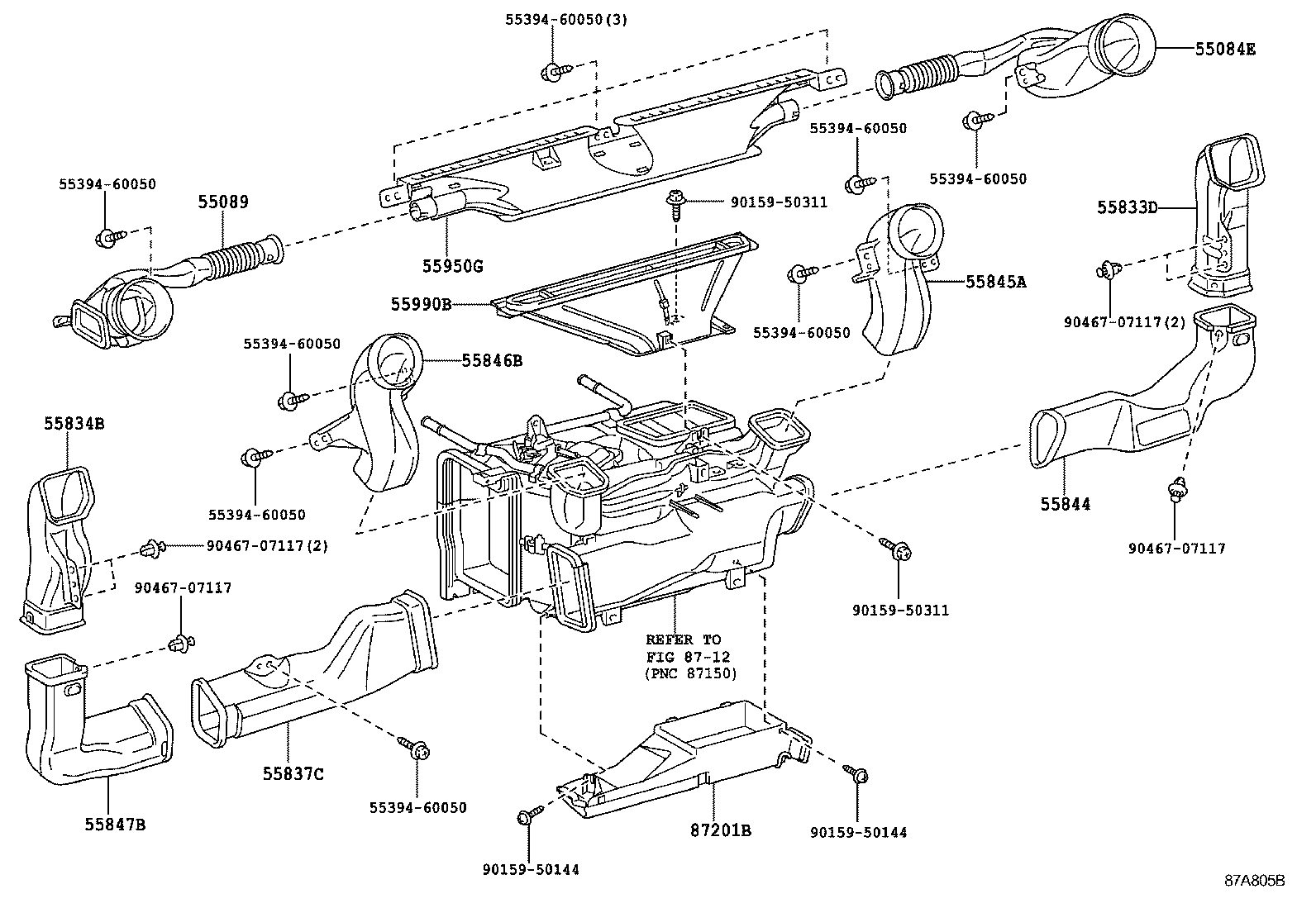

Toyota Land cruiser GRJ76 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

Part #	Description	Period	Qty
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-60060	GRJ7#	08/2014 - 07/2015	1
55089 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.6
55089-60010	GRJ7#	08/2014 - 07/2015	1
55833D - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.1
55833-60010	GRJ7#	08/2014 - 07/2015	1
55834B - CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2
55834-60020	GRJ7#	08/2014 - 07/2015	1
55837C - DUCT, HEATER TO REGISTER CENTER SUB
55837-60050	GRJ7#	08/2014 - 07/2015	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-60290	GRJ7#	08/2014 - 07/2015	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-60140	GRJ7#	08/2014 - 07/2015	1
55846B - DUCT, HEATER TO REGISTER, NO.4
55846-60120	GRJ7#	08/2014 - 07/2015	1
55847B - DUCT, HEATER TO REGISTER, NO.5
55847-60160	GRJ7#	08/2014 - 07/2015	1
55950G - NOZZLE ASSY, DEFROSTER
55950-60170	GRJ7#	08/2014 - 07/2015	1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-60050	GRJ7#	08/2014 - 07/2015	1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-60040	GRJ7#	08/2014 - 07/2015	1
Common parts
55394-60050
90159-50144
90159-50311
90467-07117
Linked diagrams
8712

Part #	Description	Period	Qty
55905J - KNOB SUB-ASSY, CONTROL
55905-89110	GRJ7#	08/2014 - 07/2015	3
55905J - KNOB SUB-ASSY, CONTROL
55905-89110	GRJ7#	08/2014 - 07/2015	3
55905J - KNOB SUB-ASSY, CONTROL
55905-89110	GRJ7#	08/2014 - 07/2015	3
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-60110	GRJ7#	08/2014 - 07/2015	1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-60160	GRJ7#	08/2014 - 07/2015	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-60090	GRJ7#	08/2014 - 07/2015	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-60120	GRJ7#	08/2014 - 07/2015	1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-60270	GRJ7#	08/2014 - 07/2015	1
Common parts
90170-11206
90206-11012
91553-80620
Linked diagrams
8302
8401
8712
8714

GRJ76K-RKMNK (2014)
