MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)MCU2#

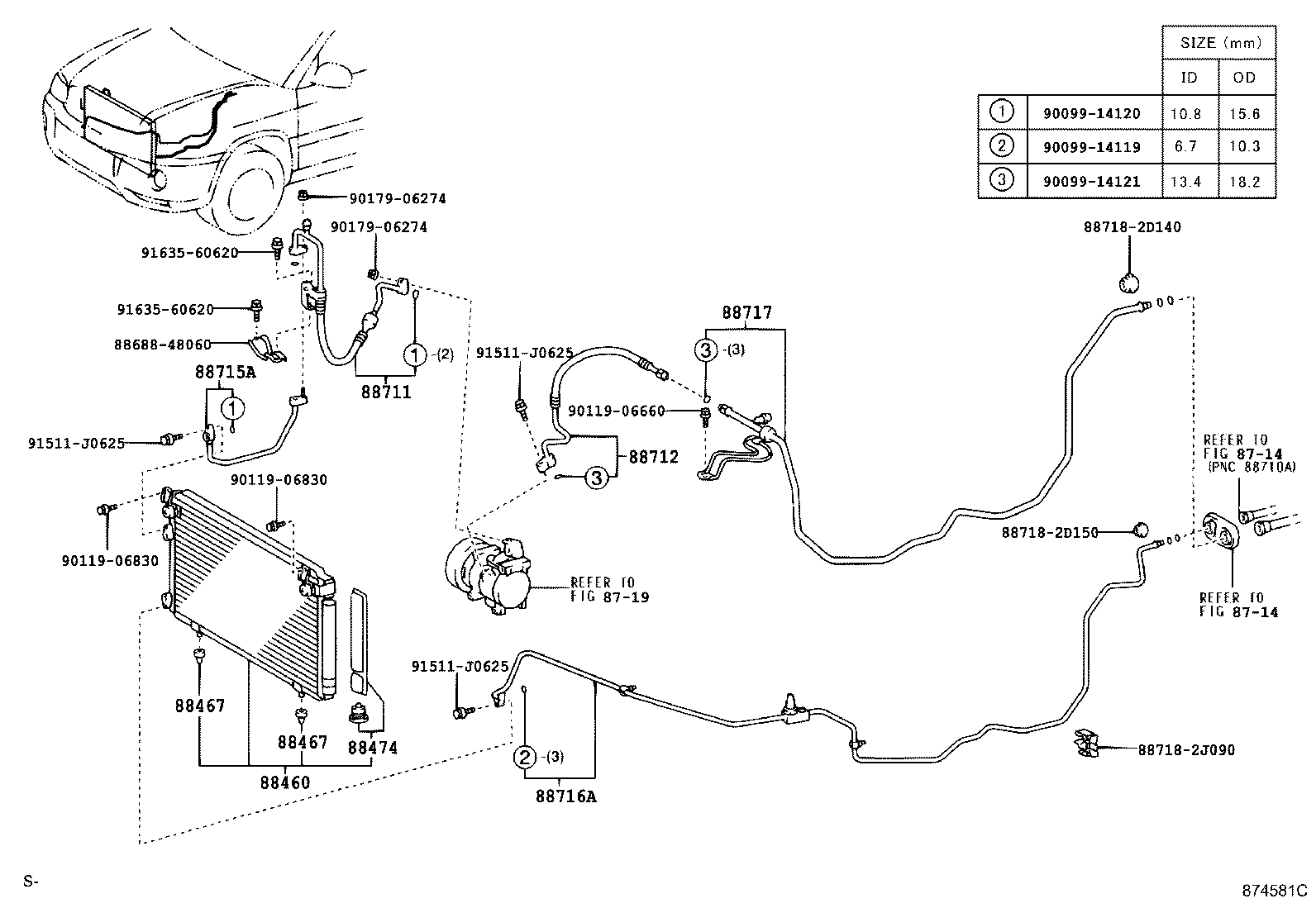

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 88467 88467 88474 8868848060 88711 88712 88715A 88716A 88717 887182D140 887182D150 887182J090 9009914119 9009914120 9009914121 9011906660 9011906830 9011906830 9017906274 9017906274 91511J0625 91511J0625 91511J0625 9163560620 9163560620
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-48020

ACU2#,MCU2#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28040

ACU2#,MCU2#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28040

ACU2#,MCU2#

 2
88474 - DRYER, COOLER
88474-47010

ACU2#,MCU2#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-48050

MCU2#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-48050

MCU2#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88705-48030

ACU2#,MCU2#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-48070

ACU2#,MCU2#

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88707-48030

ACU2#,MCU2#

 1
Common parts
88688-48060
88718-2D140
88718-2D150
88718-2J090
90099-14119
90099-14120
90099-14121
90119-06660
90119-06830
90179-06274
91511-J0625
91635-60620
Linked diagrams
8714
8719
