MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

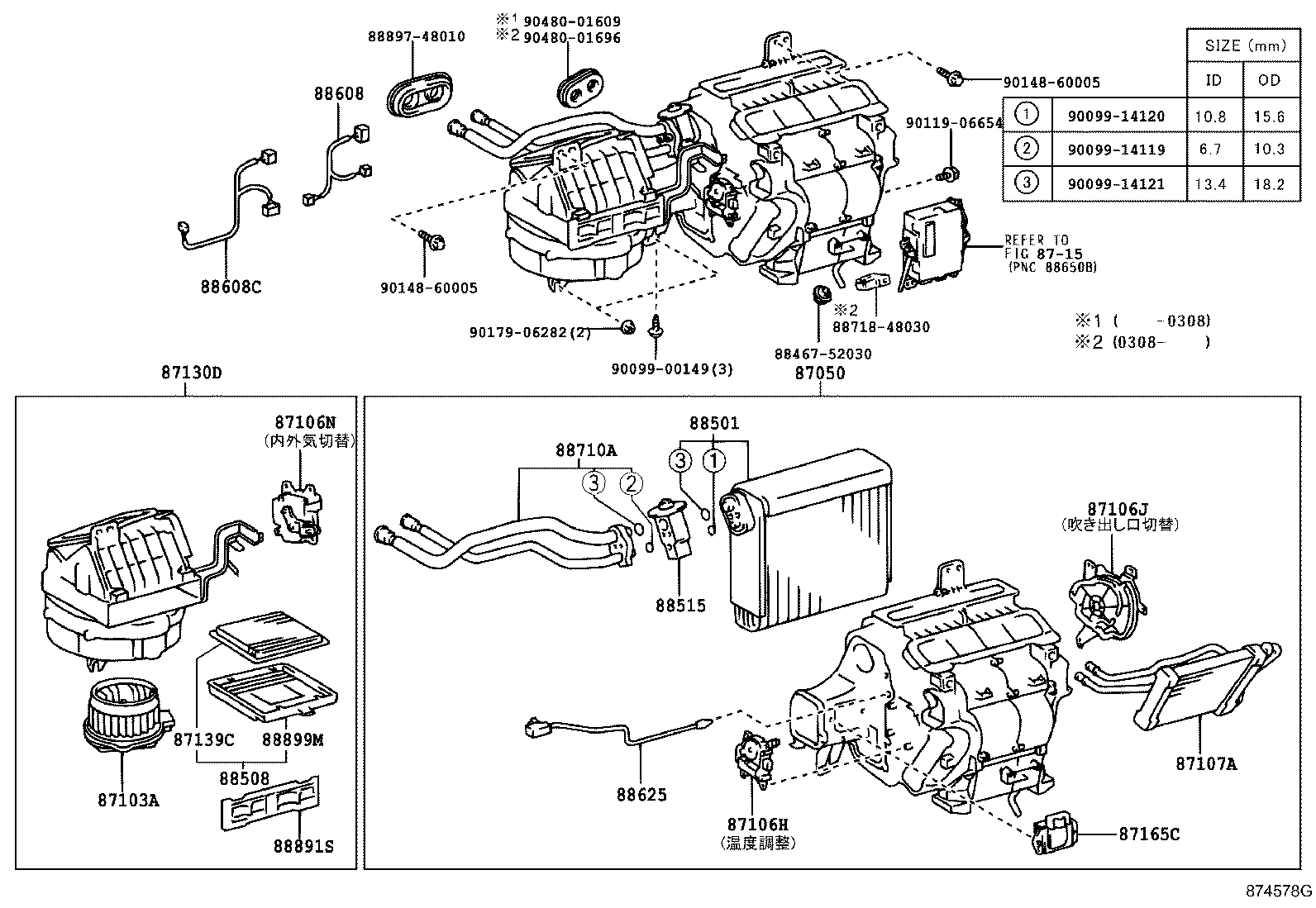

Click highlighted areas on diagram

diagram 87050 87103A 87106H 87106J 87106N 87107A 87130D 87139C 8715 87165C 8846752030 88501 88508 88515 88608 88608C 88625 88710A 8871848030 88891S 8889748010 88899M 9009900149 9009914119 9009914120 9009914121 9011906654 9014860005 9014860005 9017906282 9048001609 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-48031

ACU2#,MCU2#

 1
87050-48030

ACU2#,MCU2#

 1
87050-48032

ACU2#,MCU2#

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-48010

ACU2#,MCU2#

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-41050

ACU2#,MCU2#

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-48030

ACU2#,MCU2#

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-53010

ACU2#,MCU2#

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-48030

ACU2#,MCU2#

 1
87130D - BLOWER ASSY
87130-48030

ACU2#,MCU2#

 1
87139C - FILTER, CLEAN AIR
87139-48030

ACU2#,MCU2#

 1
87165C - CONTROL, BLOWER MOTOR
87165-48010

ACU2#,MCU2#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-48020

ACU2#,MCU2#

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-48020

ACU2#,MCU2#

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

ACU2#,MCU2#

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-48030

ACU2#,MCU2#

 1
88608C - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
88608-48040

ACU2#,MCU2#

 1
88608-48080

ACU2#,MCU2#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-0C010

ACU2#,MCU2#

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-48090

ACU2#,MCU2#

 1
88891S - COVER, COOLER, NO.1
88891-30680

ACU2#,MCU2#

 1
Common parts
88467-52030
88718-48030
88897-48010
90099-00149
90099-14119
90099-14120
90099-14121
90119-06654
90148-60005
90179-06282
90480-01609
90480-01696
