MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

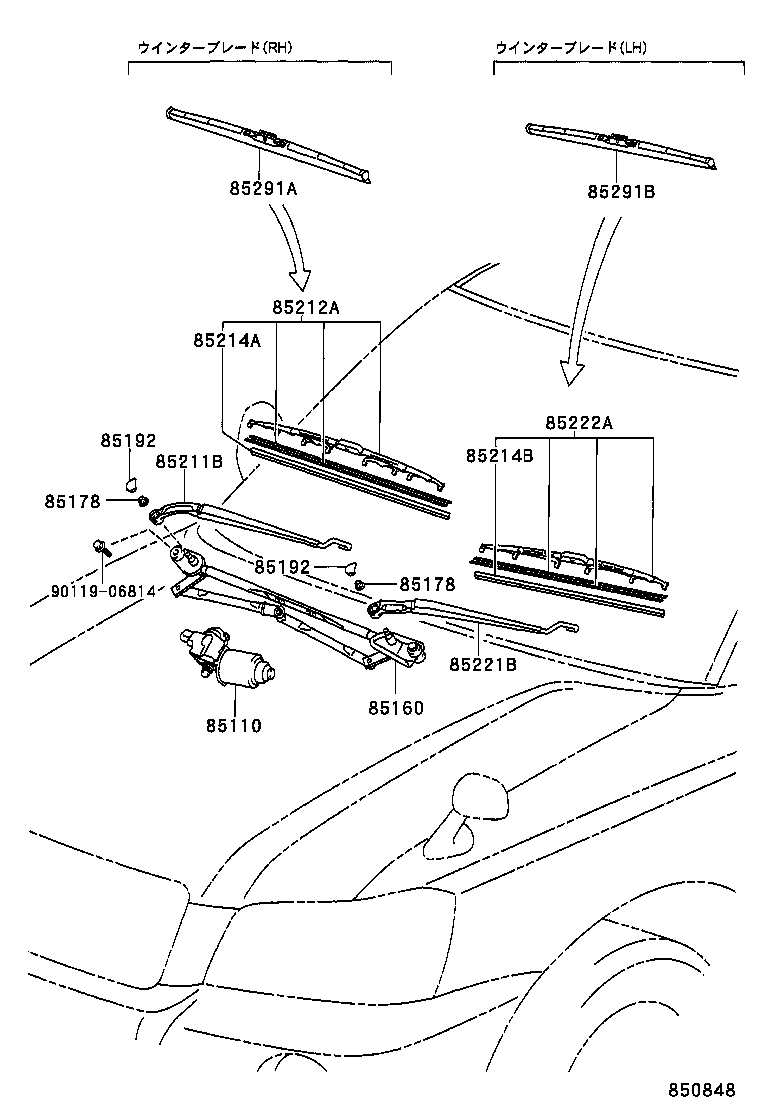

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291B 9011906814
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-48050

ACU2#,MCU2#

 1
85110-48060

ACU2#,MCU2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-48050

ACU2#,MCU2#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10223

ACU2#,MCU2#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10223

ACU2#,MCU2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

ACU2#,MCU2#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

ACU2#,MCU2#

 2
85211B - ARM, FRONT WIPER, RH
85211-48040

ACU2#,MCU2#

 1
85212A - BLADE, FR WIPER, RH
85212-53010

ACU2#,MCU2#

 1
85214A - RUBBER, WIPER, RH
85214-22410

ACU2#,MCU2#

 1
85214B - RUBBER, WIPER, LH
85214-48020

ACU2#,MCU2#

 1
85221B - ARM, FRONT WIPER, LH
85221-48040

ACU2#,MCU2#

 1
85222A - BLADE, FR WIPER, LH
85222-48030

ACU2#,MCU2#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-53010

ACU2#,MCU2#

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-53030

ACU2#,MCU2#

 1
Common parts
90119-06814
