MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)

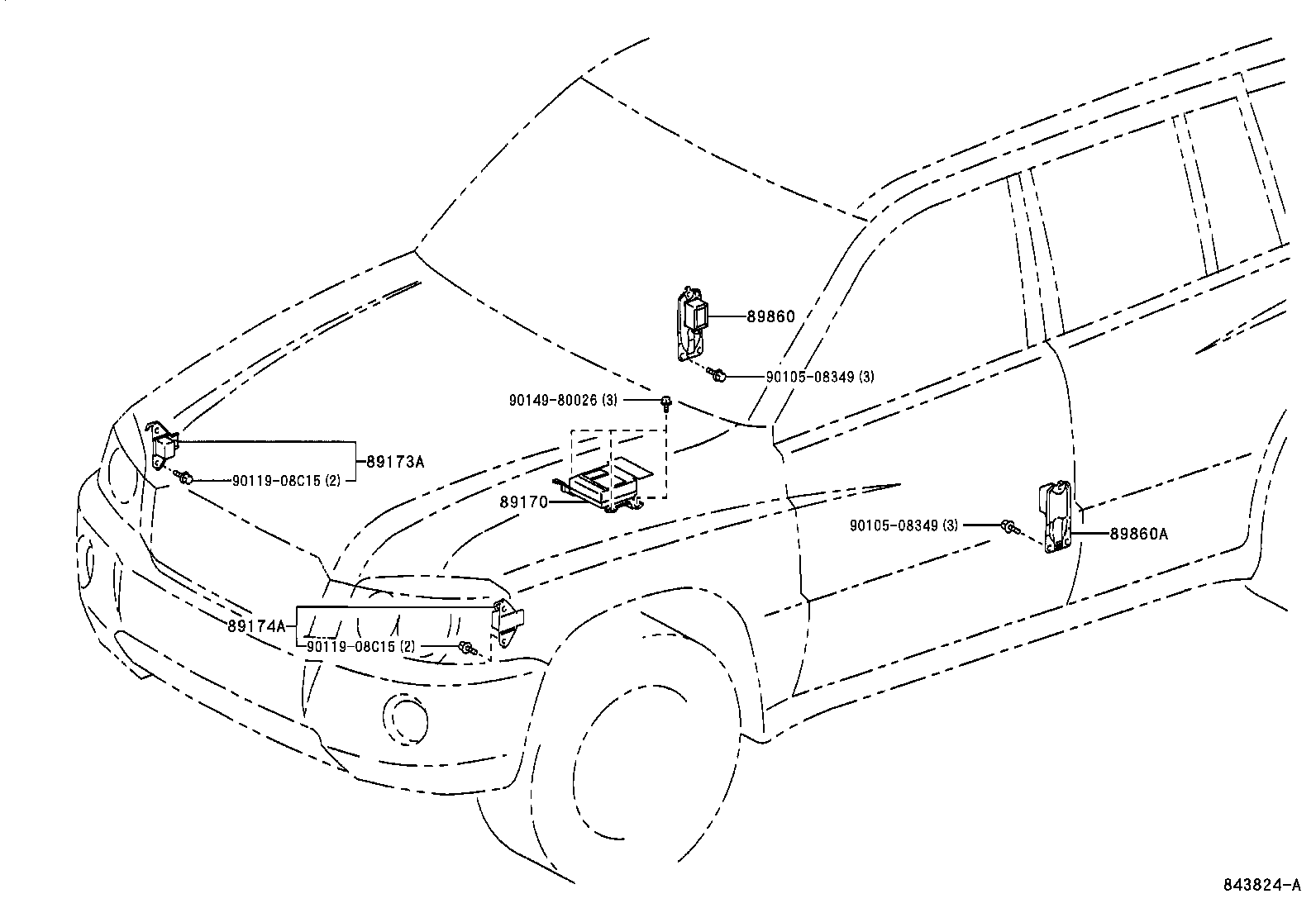

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89860 89860A 9010508349 9010508349 9011908C15 9011908C15 9014980026
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-48031

ACU2#,MCU2#

ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)

 1
89170-48040

ACU2#,MCU2#

 1
89170-48030

ACU2#,MCU2#

ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49265

ACU2#,MCU2#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-49115

ACU2#,MCU2#

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-48010

ACU2#,MCU2#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89860-48010

ACU2#,MCU2#

 1
Common parts
90105-08349
90119-08C15
90149-80026
