MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

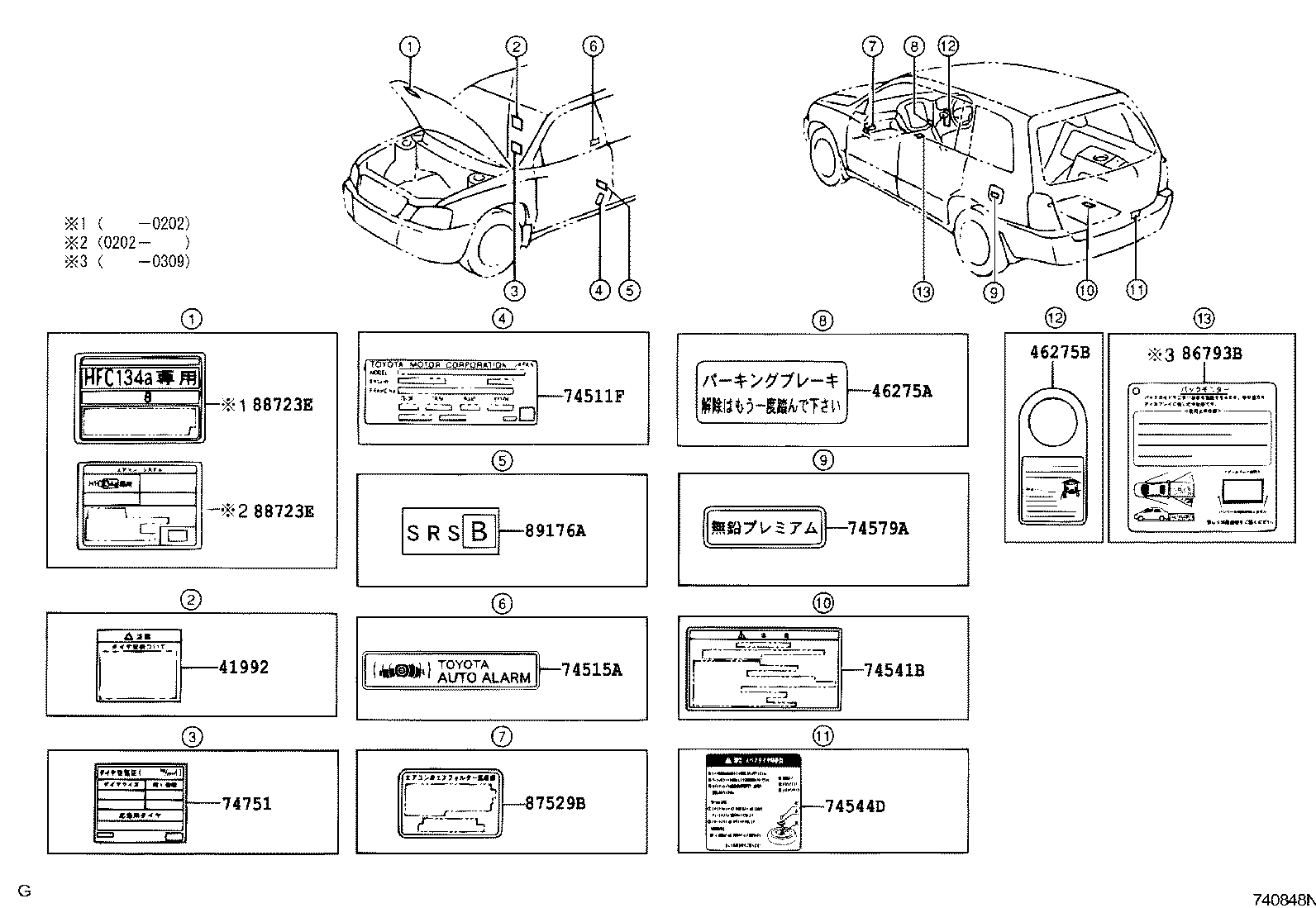

ILLUST NO. 1 OF 2(0011- )

Click highlighted areas on diagram

diagram 41992 46275A 46275B 74511F 74515A 74541B 74544D 74579A 74751 86793B 87529B 88723E 88723E 89176A
Part # Description Qty Price
41992 - LABEL, DIFFERENTIAL NOTICE
41992-33010

ACU25,MCU25

 1
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-33010B0

ACU2#,MCU2#

GRAY,TRIM15

 1
46275-22010A0

ACU2#,MCU2#

WHITE,TRIM14

 1
46275-22010B0

ACU2#,MCU2#

GRAY,TRIM15

 1
46275-33010A0

ACU2#,MCU2#

WHITE,TRIM14

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-47010

ACU2#,MCU2#

 1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

ACU2#,MCU2#

*111

 1
74541B - PLATE, COMPACT SPARE TIRE CAUTION
42668-28060

ACU2#,MCU2#

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010

MCU2#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-48070

ACU2#,MCU2#

 1
86793B - LABEL, TELEVISION CAMERA INFORMATION
86793-13010

ACU2#,MCU2#

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

ACU2#,MCU2#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-42050

ACU2#,MCU2#

 1
88733-27010

ACU2#,MCU2#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-42050

ACU2#,MCU2#

 1
88733-27010

ACU2#,MCU2#

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-51010

ACU2#,MCU2#

 1

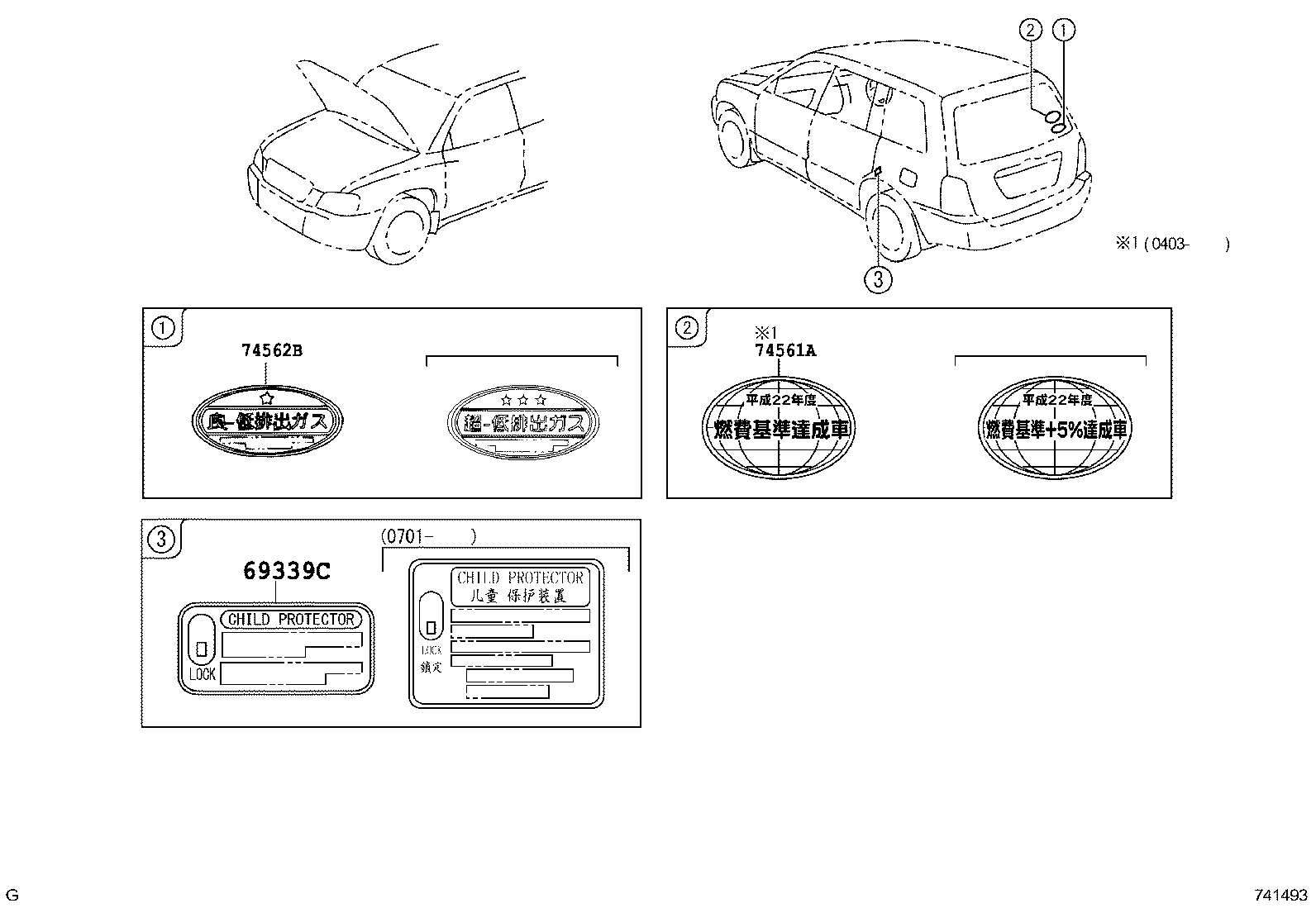

ILLUST NO. 2 OF 2(0011- )

Click highlighted areas on diagram

diagram 69339C 74561A 74562B
Part # Description Qty Price
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

ACU2#,MCU2#

 2
74562B - LABEL, EMISSION INFORMATION
74562-40040

ACU2#,MCU2#

 1
