MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)

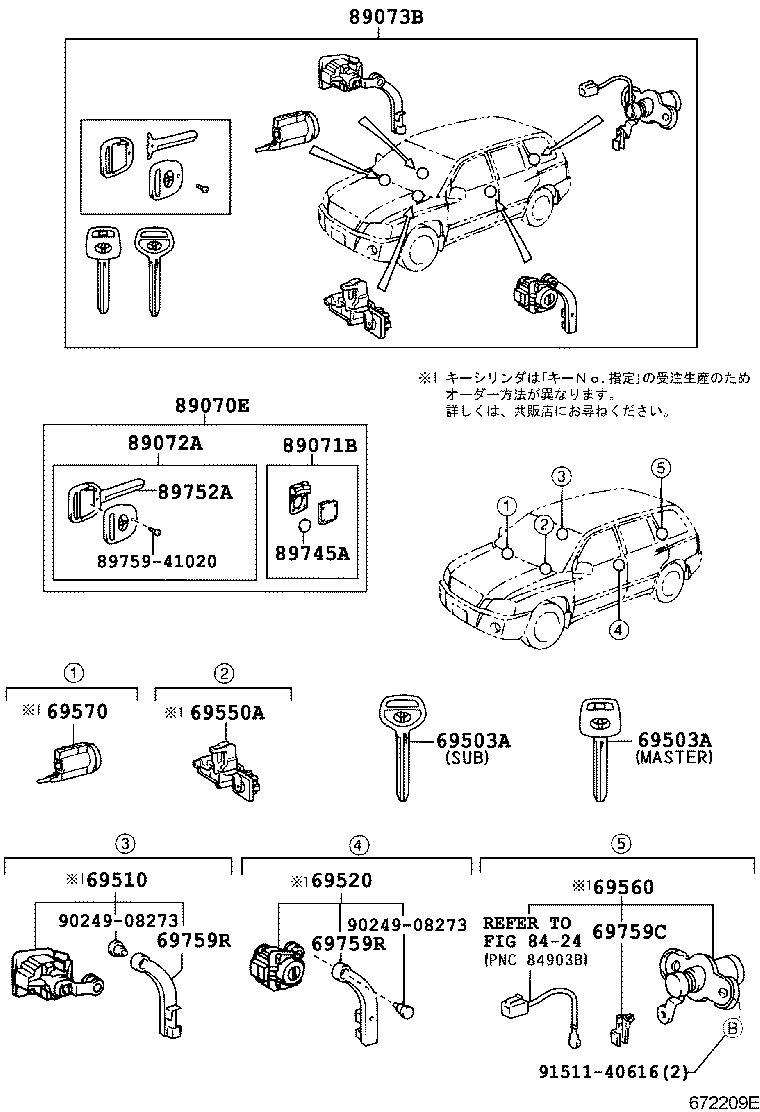

Click highlighted areas on diagram

diagram 69503A 69503A 69510 69520 69550A 69560 69570 69759C 69759R 69759R 8424 89070E 89071B 89072A 89073B 89745A 89752A 8975941020 9024908273 9024908273 9151140616
Part # Description Qty Price
69503A - KEY, BLANK
90999-00188

ACU2#,MCU2#

ｻﾌﾞｷｰ

 1
90999-00199

ACU2#,MCU2#

ﾏｽﾀｰｷｰ,*68付き

 1
69503A - KEY, BLANK
90999-00188

ACU2#,MCU2#

ｻﾌﾞｷｰ

 1
90999-00199

ACU2#,MCU2#

ﾏｽﾀｰｷｰ,*68付き

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-22280

ACU2#,MCU2#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-22240

ACU2#,MCU2#

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-22110

ACU2#,MCU2#

 1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-48040

ACU2#,MCU2#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-12190

ACU2#,MCU2#

 1
69759C - SNAP, BACK DOOR LOCK CYLINDER
69759-24080

ACU2#,MCU2#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-50110

ACU2#,MCU2#

右側

 1
69759-50120

ACU2#,MCU2#

左側

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-50110

ACU2#,MCU2#

右側

 1
69759-50120

ACU2#,MCU2#

左側

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-12010

ACU2#,MCU2#

 1
89070-12011

ACU2#,MCU2#

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-12021

ACU2#,MCU2#

 1
89071-12020

ACU2#,MCU2#

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020

ACU2#,MCU2#

 1
89073B - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-48190

ACU2#,MCU2#

 1
89745A - BATTERY, TRANSMITTER
89745-26010

ACU2#,MCU2#

 1
Common parts
89759-41020
90249-08273
91511-40616
Linked diagrams
8424
