MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

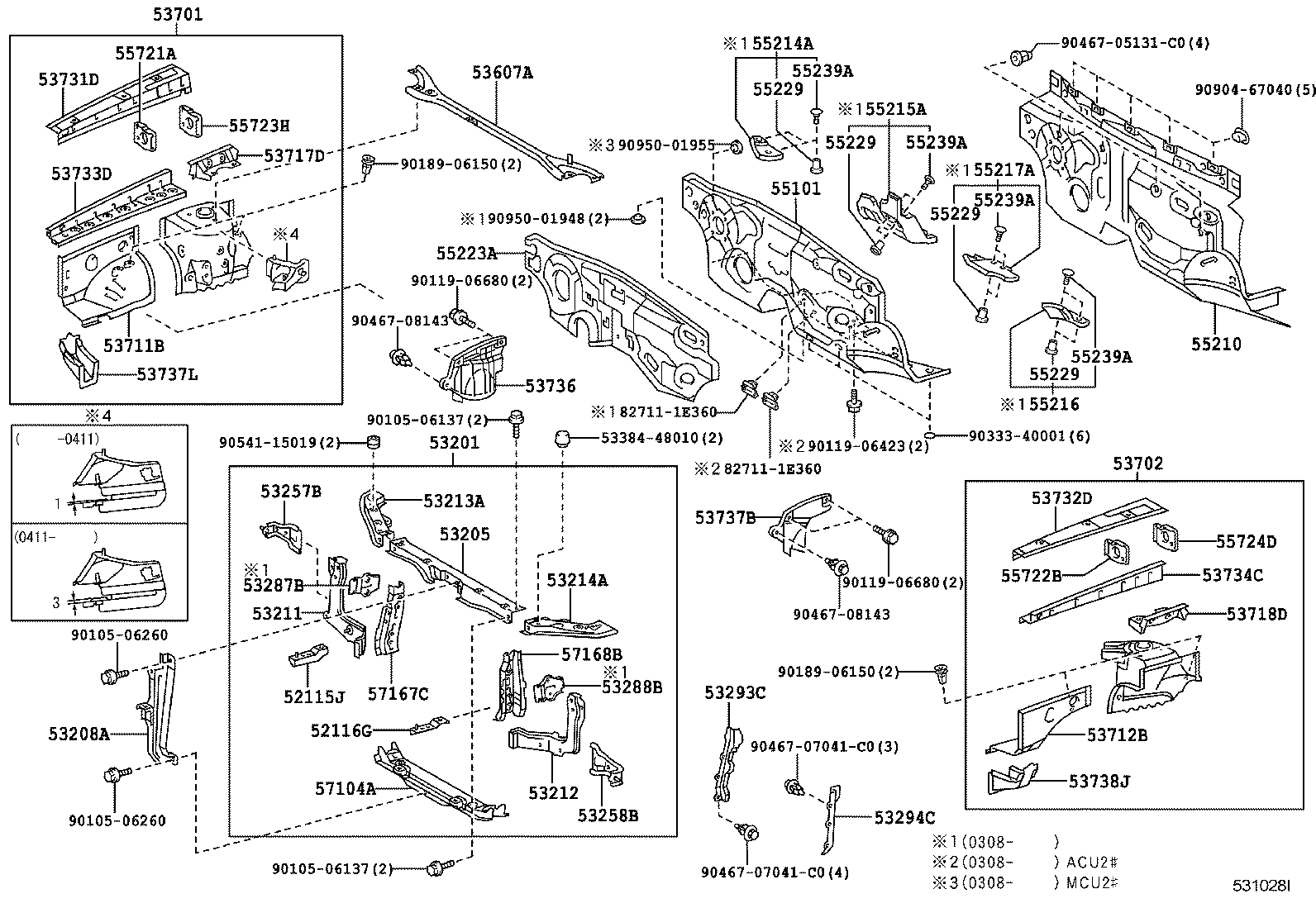

Click highlighted areas on diagram

diagram 52115J 52116G 53201 53205 53208A 53211 53212 53213A 53214A 53257B 53258B 53287B 53288B 53293C 53294C 5338448010 53607A 53701 53702 53711B 53712B 53717D 53718D 53731D 53732D 53733D 53734C 53736 53737B 53737L 53738J 55101 55210 55214A 55215A 55216 55217A 55223A 55229 55229 55229 55229 55239A 55239A 55239A 55239A 55721A 55722B 55723H 55724D 57104A 57167C 57168B 827111E360 827111E360 9010506137 9010506137 9010506260 9010506260 9011906423 9011906680 9011906680 9018906150 9018906150 9033340001 9046705131C0 9046707041C0 9046707041C0 9046708143 9046708143 9054115019 9090467040 9095001948 9095001955
Part # Description Qty Price
52115J - SUPPORT, FRONT BUMPER SIDE, RH
52115-48020

ACU2#,MCU2#

 1
52116G - SUPPORT, FRONT BUMPER SIDE, LH
52116-48020

ACU2#,MCU2#

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-48020

ACU2#,MCU2#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-48020

ACU2#,MCU2#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53217-48020

ACU2#,MCU2#

 1
53211 - SUPPORT, RADIATOR, RH
53211-48020

ACU2#,MCU2#

 1
53212 - SUPPORT, RADIATOR, LH
53212-48020

ACU2#,MCU2#

 1
53213A - SUPPORT, RADIATOR, UPPER RH
53213-48020

ACU2#,MCU2#

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-48020

ACU2#,MCU2#

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-48020

ACU2#,MCU2#

 1
53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53258-48020

ACU2#,MCU2#

 1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-48020

ACU2#,MCU2#

 1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-48020

ACU2#,MCU2#

 1
53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53607-48030

ACU2#,MCU2#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-48020

ACU2#,MCU2#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-48020

ACU2#,MCU2#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-48020

ACU2#,MCU2#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-48020

ACU2#,MCU2#

 1
53717D - GUSSET, FENDER APRON, RH
53717-48020

ACU2#,MCU2#

 1
53718D - GUSSET, FENDER APRON, LH
53718-48020

ACU2#,MCU2#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-48020

ACU2#,MCU2#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-48020

ACU2#,MCU2#

 1
53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53733-48010

ACU2#,MCU2#

 1
53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53734-48010

ACU2#,MCU2#

 1
53736 - SEAL, FRONT FENDER APRON, RH
53736-33030

ACU2#,MCU2#

 1
53736-28020

ACU2#,MCU2#

 1
53737B - SEAL, FRONT FENDER APRON, LH
53737-28020

ACU2#,MCU2#

 1
53737L - GUSSET, FRONT FENDER APRON WIND GUIDE, RH
53737-48010

ACU2#,MCU2#

 1
53738J - GUSSET, FRONT FENDER APRON WIND GUIDE, LH
53738-48020

ACU2#,MCU2#

 1
55101 - PANEL SUB-ASSY, DASH
55101-48040

ACU2#,MCU2#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-48030

ACU2#,MCU2#

 1
55210-48031

ACU2#,MCU2#

 1
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-48010

ACU2#,MCU2#

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-48030

ACU2#,MCU2#

 1
55721A - BRACE, COWL TOP TO COWL, INNER NO.1
55721-48010

ACU2#,MCU2#

 1
55722B - BRACE, COWL TOP TO COWL, INNER NO.2
55722-48030

ACU2#,MCU2#

 1
55723H - REINFORCEMENT, COWL TOP SIDE, RH
55723-48020

ACU2#,MCU2#

 1
55724D - REINFORCEMENT, COWL TOP SIDE, LH
55724-48020

ACU2#,MCU2#

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-48020

ACU2#,MCU2#

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-48020

ACU2#,MCU2#

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-48020

ACU2#,MCU2#

 1
Common parts
53384-48010
82711-1E360
90105-06137
90105-06260
90119-06423
90119-06680
90189-06150
90333-40001
90467-05131C0
90467-07041C0
90467-08143
90541-15019
90904-67040
90950-01948
90950-01955
