MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

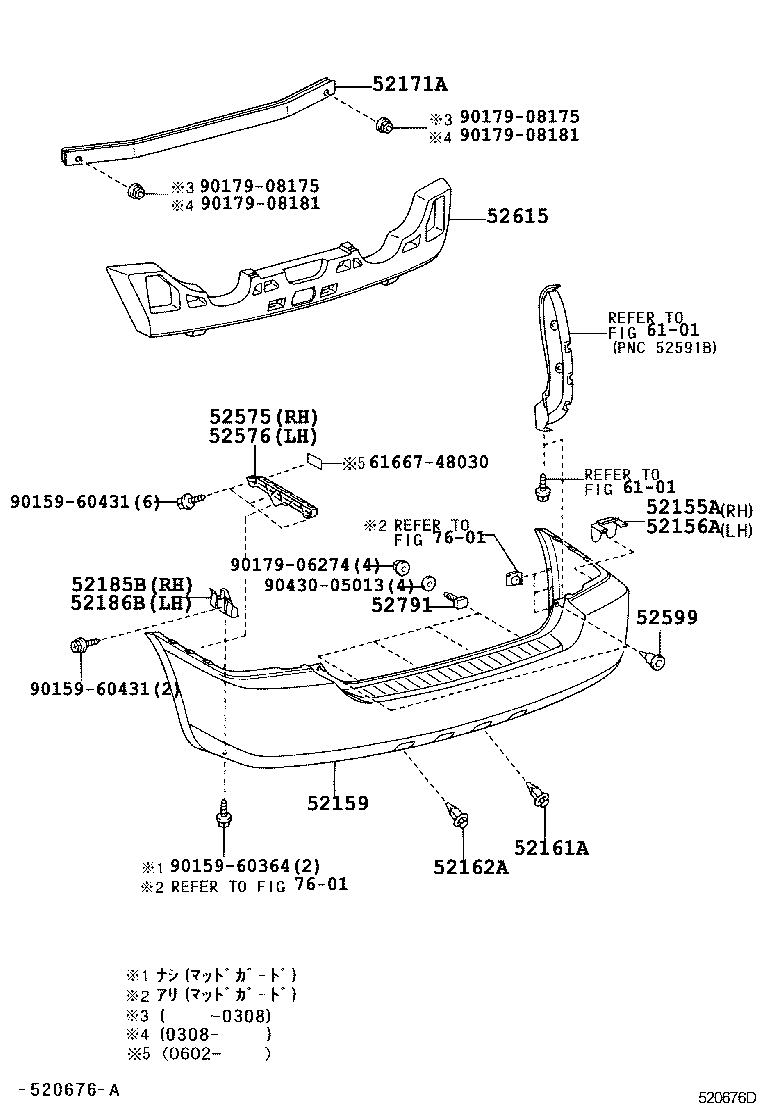

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52161A 52162A 52171A 52185B 52186B 52575 52576 52599 52615 52791 6101 6101 6166748030 7601 7601 9015960364 9015960431 9015960431 9017906274 9017908175 9017908175 9017908181 9017908181 9043005013
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-16120

ACU2#,MCU2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52155-16120

ACU2#,MCU2#

 1
52159 - COVER, REAR BUMPER
52159-48040B0

ACU2#,MCU2#

SILVER ME.,1C0

 1
52159-48040B1

ACU2#,MCU2#

ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),DK.GRAY M.M.,1C6

 1
52159-48040E0

ACU2#,MCU2#

BEIGE SF.,4P2

 1
52159-48040A1

ACU2#,MCU2#

WHITE PEARL CS.,062

 1
52159-48040A0

ACU2#,MCU2#

ﾓﾃﾞﾘｽﾀ ｴｱﾛ ｸﾙ-ｶﾞ,SUPER WHITE 2,040

 1
52159-48040D0

ACU2#,MCU2#

RED M.M.,3N8

 1
52159-48040J1

ACU2#,MCU2#

DK.BLUE M.M.,8P4

 1
52159-48040C0

ACU2#,MCU2#

BLACK,202

 1
52159-48040B2

ACU2#,MCU2#

S-LIMITEDﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A),S-LIMITED *(B),DK.GRAY.MC,1E0

 1
52159-48040J0

ACU2#,MCU2#

GRAYISH BLUE ME.,8N6

 1
52159-48040G0

ACU2#,MCU2#

DARK GREEN MC.,6R4

 1
52161A - PIECE, REAR BUMPER, RH
52161-16010

ACU2#,MCU2#

 1
52162A - PIECE, REAR BUMPER, LH
52161-16010

ACU2#,MCU2#

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-48060

ACU2#,MCU2#

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-48020

ACU2#,MCU2#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-48020

ACU2#,MCU2#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-48010

ACU2#,MCU2#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-48010

ACU2#,MCU2#

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-48020

ACU2#,MCU2#

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-48050

ACU2#,MCU2#

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-33010

ACU2#,MCU2#

 4
Common parts
61667-48030
90159-60364
90159-60431
90179-06274
90179-08175
90179-08181
90430-05013
Linked diagrams
6101
7601
