MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

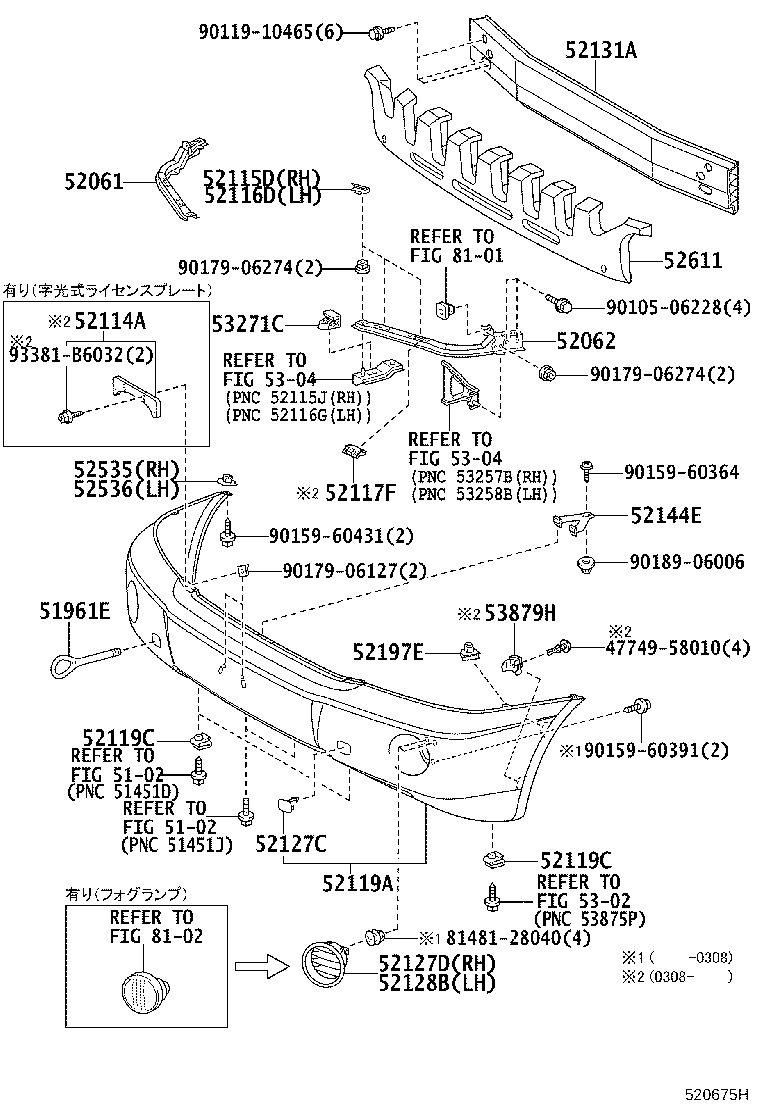

Click highlighted areas on diagram

diagram 4774958010 5102 5102 51961E 52061 52062 52114A 52115D 52116D 52117F 52119A 52119C 52119C 52127C 52127D 52128B 52131A 52144E 52197E 52535 52536 52611 5302 5304 5304 53271C 53879H 8101 8102 8148128040 9010506228 9011910465 9015960364 9015960391 9015960431 9017906127 9017906274 9017906274 9018906006 93381B6032
Part # Description Qty Price
51961E - HOOK, FRONT
51961-50030

ACU2#,MCU2#

 2
51961-48030

ACU2#,MCU2#

 2
52061 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52061-48010

ACU2#,MCU2#

 1
52062 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52062-48010

ACU2#,MCU2#

 1
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52115-48040

ACU2#,MCU2#

 2
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52115-48040

ACU2#,MCU2#

 2
52119A - COVER, FRONT BUMPER
52119-48040J1

ACU2#,MCU2#

DK.BLUE M.M.,8P4

 1
52119-48040E0

ACU2#,MCU2#

BEIGE SF.,4P2

 1
52119-48040G0

ACU2#,MCU2#

DARK GREEN MC.,6R4

 1
52119-48040A0

ACU2#,MCU2#

WHITE PEARL CS.,062

 1
52119-48040J0

ACU2#,MCU2#

GRAYISH BLUE ME.,8N6

 1
52119-48040B1

ACU2#,MCU2#

ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),DK.GRAY M.M.,1C6

 1
52119-48040C0

ACU2#,MCU2#

BLACK,202

 1
52119-48040D0

ACU2#,MCU2#

RED M.M.,3N8

 1
52119-48040B0

ACU2#,MCU2#

SILVER ME.,1C0

 1
52119-48040B2

ACU2#,MCU2#

S-LIMITEDﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A),S-LIMITED *(B),DK.GRAY.MC,1E0

 1
52119C - CLIP, FRONT BUMPER COVER
90467-05114

ACU2#,MCU2#

 4
52119C - CLIP, FRONT BUMPER COVER
90467-05114

ACU2#,MCU2#

 4
52127C - COVER, FRONT BUMPER HOLE
52127-48010G0

ACU2#,MCU2#

DARK GREEN MC.,6R4

 2
52127-48010C0

ACU2#,MCU2#

BLACK,202

 2
52127-48010J1

ACU2#,MCU2#

DK.BLUE M.M.,8P4

 2
52127-48010B2

ACU2#,MCU2#

S-LIMITEDﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(A),S-LIMITED *(B),DK.GRAY.MC,1E0

 1
52127-48010E0

ACU2#,MCU2#

BEIGE SF.,4P2

 2
52127-48010B1

ACU2#,MCU2#

ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),DK.GRAY M.M.,1C6

 1
52127-48010A1

ACU2#,MCU2#

WHITE PEARL CS.,062

 2
52127-48010B0

ACU2#,MCU2#

SILVER ME.,1C0

 2
52127-48010D0

ACU2#,MCU2#

RED M.M.,3N8

 2
52127-48010J0

ACU2#,MCU2#

GRAYISH BLUE ME.,8N6

 2
52127D - COVER, FRONT BUMPER HOLE, RH
81481-48010B1

ACU2#,MCU2#

ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),DK.GRAY M.M.,1C6

 1
81481-48010A1

ACU2#,MCU2#

WHITE PEARL CS.,062

 1
81481-48010G0

ACU2#,MCU2#

DARK GREEN MC.,6R4

 1
81481-48010D0

ACU2#,MCU2#

RED M.M.,3N8

 1
81481-48010J1

ACU2#,MCU2#

DK.BLUE M.M.,8P4

 1
81481-48010B0

ACU2#,MCU2#

SILVER ME.,1C0

 1
81481-48010J0

ACU2#,MCU2#

GRAYISH BLUE ME.,8N6

 1
81481-48010E0

ACU2#,MCU2#

BEIGE SF.,4P2

 1
81481-48010C0

ACU2#,MCU2#

BLACK,202

 1
52128B - COVER, FRONT BUMPER HOLE, LH
81482-48010B1

ACU2#,MCU2#

ﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(N),DK.GRAY M.M.,1C6

 1
81482-48010A1

ACU2#,MCU2#

WHITE PEARL CS.,062

 1
81482-48010D0

ACU2#,MCU2#

RED M.M.,3N8

 1
81482-48010B0

ACU2#,MCU2#

SILVER ME.,1C0

 1
81482-48010G0

ACU2#,MCU2#

DARK GREEN MC.,6R4

 1
81482-48010J0

ACU2#,MCU2#

GRAYISH BLUE ME.,8N6

 1
81482-48010J1

ACU2#,MCU2#

DK.BLUE M.M.,8P4

 1
81482-48010E0

ACU2#,MCU2#

BEIGE SF.,4P2

 1
81482-48010C0

ACU2#,MCU2#

BLACK,202

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-48031

ACU2#,MCU2#

 1
52131-48030

ACU2#,MCU2#

 1
52144E - STAY, FRONT BUMPER, CENTER
52144-48010

ACU2#,MCU2#

 1
52197E - BRACKET, FRONT BUMPER SEAL
52197-52010

ACU2#,MCU2#

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-48020

ACU2#,MCU2#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-48020

ACU2#,MCU2#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-48020

ACU2#,MCU2#

 1
53271C - BRACKET, HEADLAMP MOUNTING
53271-12060

ACU2#,MCU2#

 2
Common parts
47749-58010
81481-28040
90105-06228
90119-10465
90159-60364
90159-60391
90159-60431
90179-06127
90179-06274
90189-06006
93381-B6032
Linked diagrams
5102
5302
5304
8101
8102
