MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

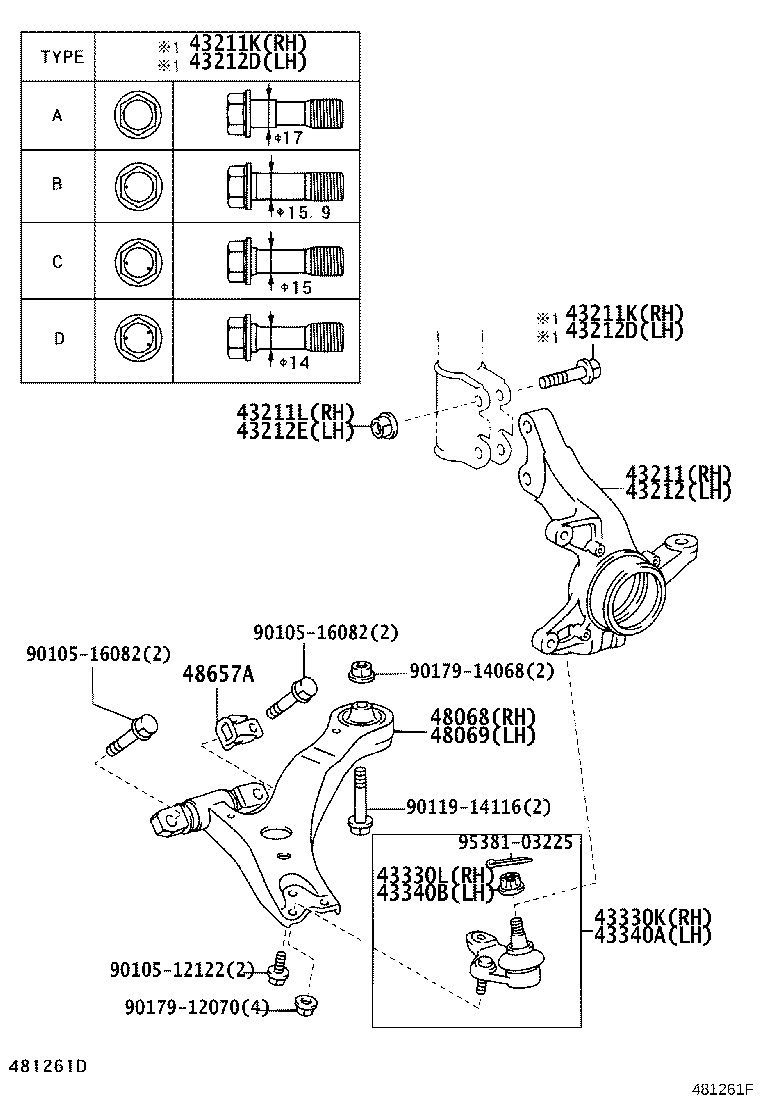

Click highlighted areas on diagram

diagram 43211 43211K 43211K 43211L 43212 43212D 43212D 43212E 43330K 43330L 43340A 43340B 48068 48069 48657A 9010512122 9010516082 9010516082 9011914116 9017912070 9017914068 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-28120

ACU2#,MCU2#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17013

ACU2#,MCU2#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACU2#,MCU2#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17014

ACU2#,MCU2#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17010

ACU2#,MCU2#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACU2#,MCU2#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17012

ACU2#,MCU2#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17009

ACU2#,MCU2#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17015

ACU2#,MCU2#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17013

ACU2#,MCU2#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACU2#,MCU2#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17014

ACU2#,MCU2#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17010

ACU2#,MCU2#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACU2#,MCU2#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17012

ACU2#,MCU2#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17009

ACU2#,MCU2#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17015

ACU2#,MCU2#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17001

ACU2#,MCU2#

 2
90178-17002

ACU2#,MCU2#

 2
43212 - KNUCKLE, STEERING, LH
43212-28100

ACU2#,MCU2#

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17013

ACU2#,MCU2#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACU2#,MCU2#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17009

ACU2#,MCU2#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17010

ACU2#,MCU2#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17014

ACU2#,MCU2#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17015

ACU2#,MCU2#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACU2#,MCU2#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17012

ACU2#,MCU2#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17013

ACU2#,MCU2#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACU2#,MCU2#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17009

ACU2#,MCU2#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17010

ACU2#,MCU2#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17014

ACU2#,MCU2#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17015

ACU2#,MCU2#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACU2#,MCU2#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17012

ACU2#,MCU2#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17001

ACU2#,MCU2#

 2
90178-17002

ACU2#,MCU2#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29405

ACU2#,MCU2#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ACU2#,MCU2#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-29175

ACU2#,MCU2#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ACU2#,MCU2#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-28120

ACU2#,MCU2#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-28120

ACU2#,MCU2#

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-28010

ACU2#,MCU2#

 2
Common parts
90105-12122
90105-16082
90119-14116
90179-12070
90179-14068
95381-03225
