MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

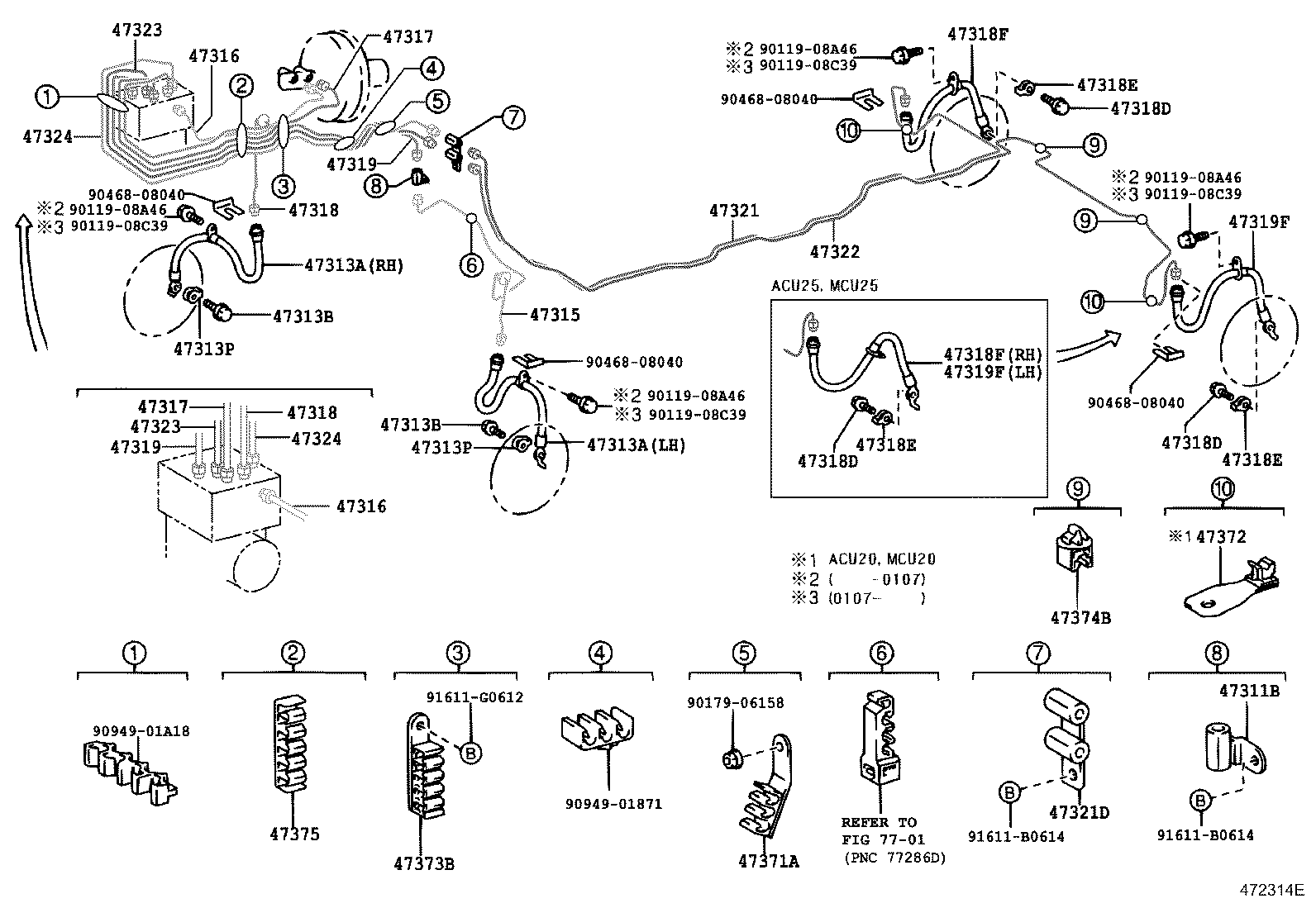

ILLUST NO. 1 OF 2(0011-0308)

Click highlighted areas on diagram

diagram 47311B 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47316 47317 47317 47318 47318 47318D 47318D 47318D 47318E 47318E 47318E 47318F 47318F 47319 47319 47319F 47319F 47321 47321D 47322 47323 47323 47324 47324 47371A 47372 47373B 47374B 7701 9011908A46 9011908A46 9011908A46 9011908A46 9011908C39 9011908C39 9011908C39 9011908C39 9017906158 9046400531 9046808040 9046808040 9046808040 9046808040 9094901871 9094901A60 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

ACU2#,MCU2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A51

ACU2#,MCU2#

右側

 1
90947-02C60

ACU2#,MCU2#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A51

ACU2#,MCU2#

右側

 1
90947-02C60

ACU2#,MCU2#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48040

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48120

MCU2#

ｱﾘ(VSC)

 1
47316-48110

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48120

MCU2#

ｱﾘ(VSC)

 1
47316-48110

ACU2#,MCU2#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48120

MCU2#

ｱﾘ(VSC)

 1
47317-48110

ACU2#,MCU2#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48120

MCU2#

ｱﾘ(VSC)

 1
47317-48110

ACU2#,MCU2#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48050

ACU2#,MCU2#

 1
47318-48060

MCU2#

ｱﾘ(VSC)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48050

ACU2#,MCU2#

 1
47318-48060

MCU2#

ｱﾘ(VSC)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48100

MCU2#

ｱﾘ(VSC)

 1
47319-48090

ACU2#,MCU2#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48100

MCU2#

ｱﾘ(VSC)

 1
47319-48090

ACU2#,MCU2#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48020

ACU2#,MCU2#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10158

ACU2#,MCU2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48030

ACU2#,MCU2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48110

ACU2#,MCU2#

 1
47323-48120

MCU2#

ｱﾘ(VSC)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48110

ACU2#,MCU2#

 1
47323-48120

MCU2#

ｱﾘ(VSC)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48120

MCU2#

ｱﾘ(VSC)

 1
47324-48110

ACU2#,MCU2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48120

MCU2#

ｱﾘ(VSC)

 1
47324-48110

ACU2#,MCU2#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-48100

ACU2#,MCU2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-48040

ACU2#,MCU2#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90469-07017

ACU2#,MCU2#

 2
47371-48050

ACU2#,MCU2#

 2
Common parts
90119-08A46
90119-08C39
90179-06158
90464-00531
90468-08040
90949-01871
90949-01A60
91611-B0614
91611-G0612
Linked diagrams
7701

ILLUST NO. 1 OF 2(0011-0308)MCU2#

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 47311B 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47316 47317 47317 47318 47318 47318D 47318D 47318D 47318E 47318E 47318E 47318F 47318F 47319 47319 47319F 47319F 47321 47321D 47322 47323 47323 47324 47324 47371A 47372 47373B 47374B 47375 7701 9011908A46 9011908A46 9011908A46 9011908A46 9011908C39 9011908C39 9011908C39 9011908C39 9017906158 9046808040 9046808040 9046808040 9046808040 9094901871 9094901A18 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

ACU2#,MCU2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A51

ACU2#,MCU2#

右側

 1
90947-02C60

ACU2#,MCU2#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A51

ACU2#,MCU2#

右側

 1
90947-02C60

ACU2#,MCU2#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48040

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48120

MCU2#

ｱﾘ(VSC)

 1
47316-48110

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48120

MCU2#

ｱﾘ(VSC)

 1
47316-48110

ACU2#,MCU2#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48120

MCU2#

ｱﾘ(VSC)

 1
47317-48110

ACU2#,MCU2#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48120

MCU2#

ｱﾘ(VSC)

 1
47317-48110

ACU2#,MCU2#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48050

ACU2#,MCU2#

 1
47318-48060

MCU2#

ｱﾘ(VSC)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48050

ACU2#,MCU2#

 1
47318-48060

MCU2#

ｱﾘ(VSC)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48100

MCU2#

ｱﾘ(VSC)

 1
47319-48090

ACU2#,MCU2#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48100

MCU2#

ｱﾘ(VSC)

 1
47319-48090

ACU2#,MCU2#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48020

ACU2#,MCU2#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10158

ACU2#,MCU2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48030

ACU2#,MCU2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48110

ACU2#,MCU2#

 1
47323-48120

MCU2#

ｱﾘ(VSC)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48110

ACU2#,MCU2#

 1
47323-48120

MCU2#

ｱﾘ(VSC)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48120

MCU2#

ｱﾘ(VSC)

 1
47324-48110

ACU2#,MCU2#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48120

MCU2#

ｱﾘ(VSC)

 1
47324-48110

ACU2#,MCU2#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-48100

ACU2#,MCU2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-48040

ACU2#,MCU2#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90469-07017

ACU2#,MCU2#

 2
47371-48050

ACU2#,MCU2#

 2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-33010

MCU2#

 1
Common parts
90119-08A46
90119-08C39
90179-06158
90468-08040
90949-01871
90949-01A18
91611-B0614
91611-G0612
Linked diagrams
7701

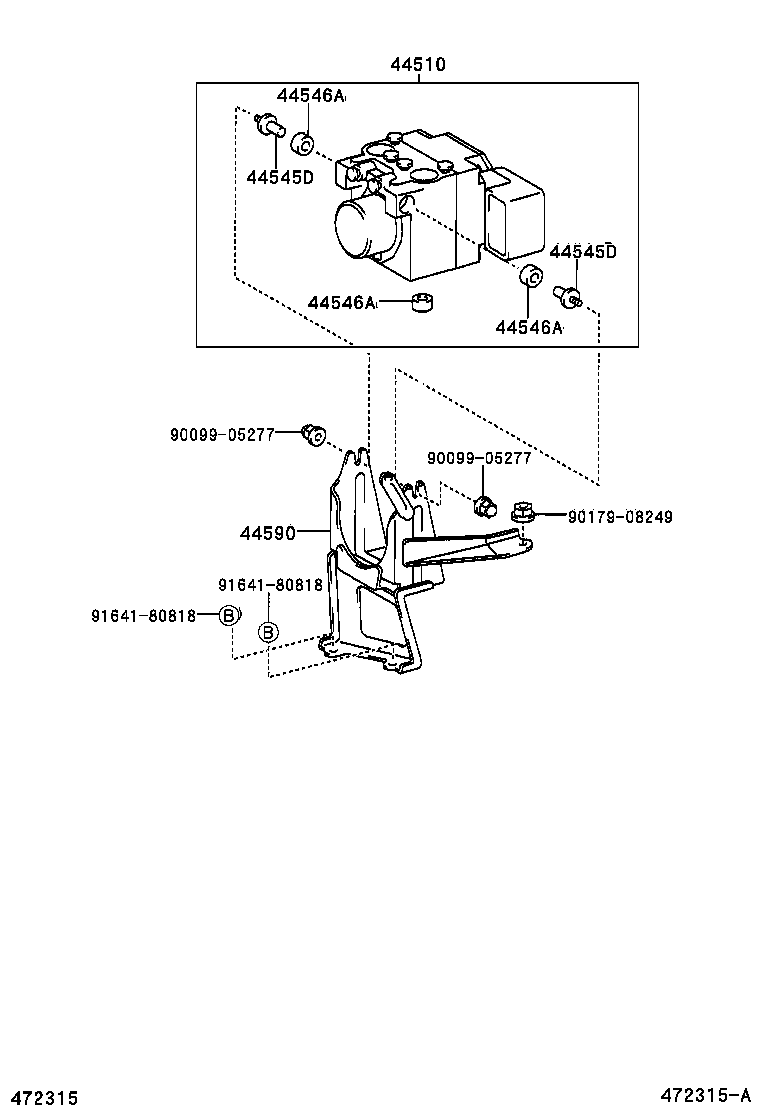

ILLUST NO. 2 OF 2(0011- )

Click highlighted areas on diagram

diagram 44510 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 9017908249 9164180818 9164180818
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-48010

ACU2#,MCU2#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

MCU2#

ｱﾘ(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

MCU2#

ｱﾘ(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48030

ACU2#,MCU2#

 1
44590-48050

MCU2#

ｱﾘ(VSC)

 1
Common parts
90099-05277
90179-08249
91641-80818

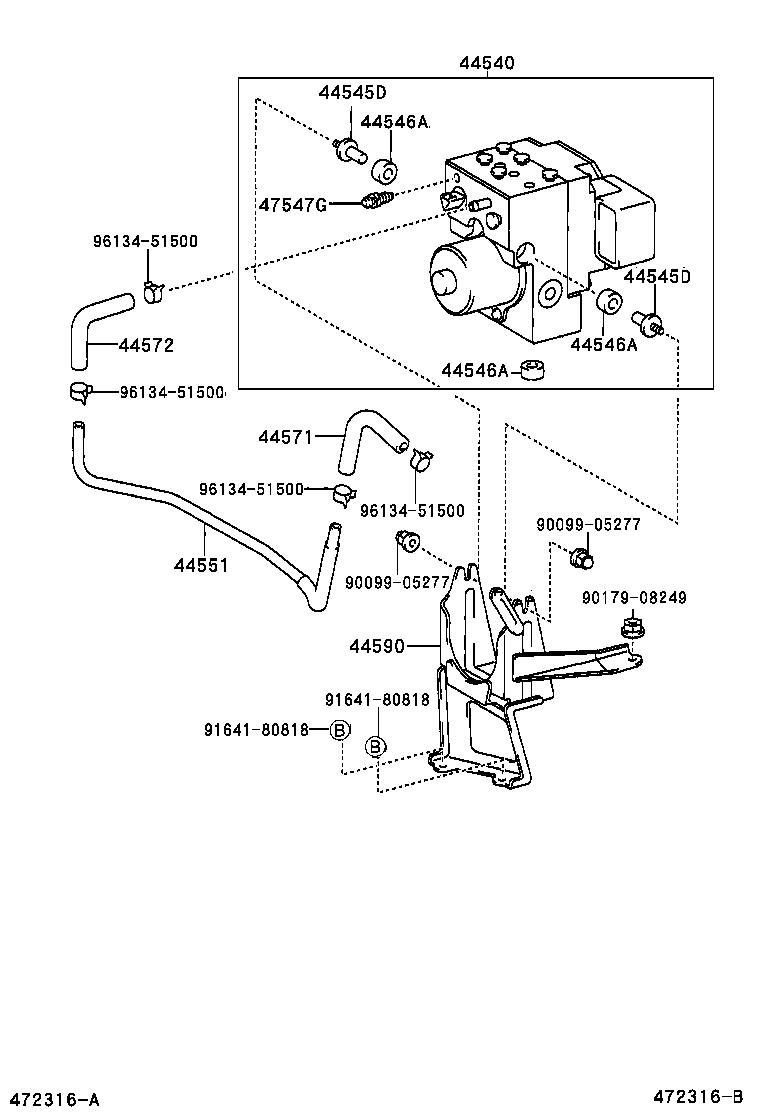

ILLUST NO. 2 OF 2(0011-0308)MCU2#

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 44540 44545D 44545D 44546A 44546A 44546A 44551 44571 44572 44590 47547G 9009905277 9009905277 9017908249 9164180818 9164180818 9613451500 9613451500 9613451500 9613451500
Part # Description Qty Price
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-48030

MCU2#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

MCU2#

ｱﾘ(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

MCU2#

ｱﾘ(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44551 - TUBE, BRAKE ACTUATOR, NO.1
44551-48020

MCU2#

 1
44571 - HOSE, BRAKE ACTUATOR
44571-48040

MCU2#

 1
44572 - HOSE, BRAKE ACTUATOR, NO.2
44571-48050

MCU2#

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48030

ACU2#,MCU2#

 1
44590-48050

MCU2#

ｱﾘ(VSC)

 1
47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR)
47547-27030

MCU2#

 1
Common parts
90099-05277
90179-08249
91641-80818
96134-51500
