MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)

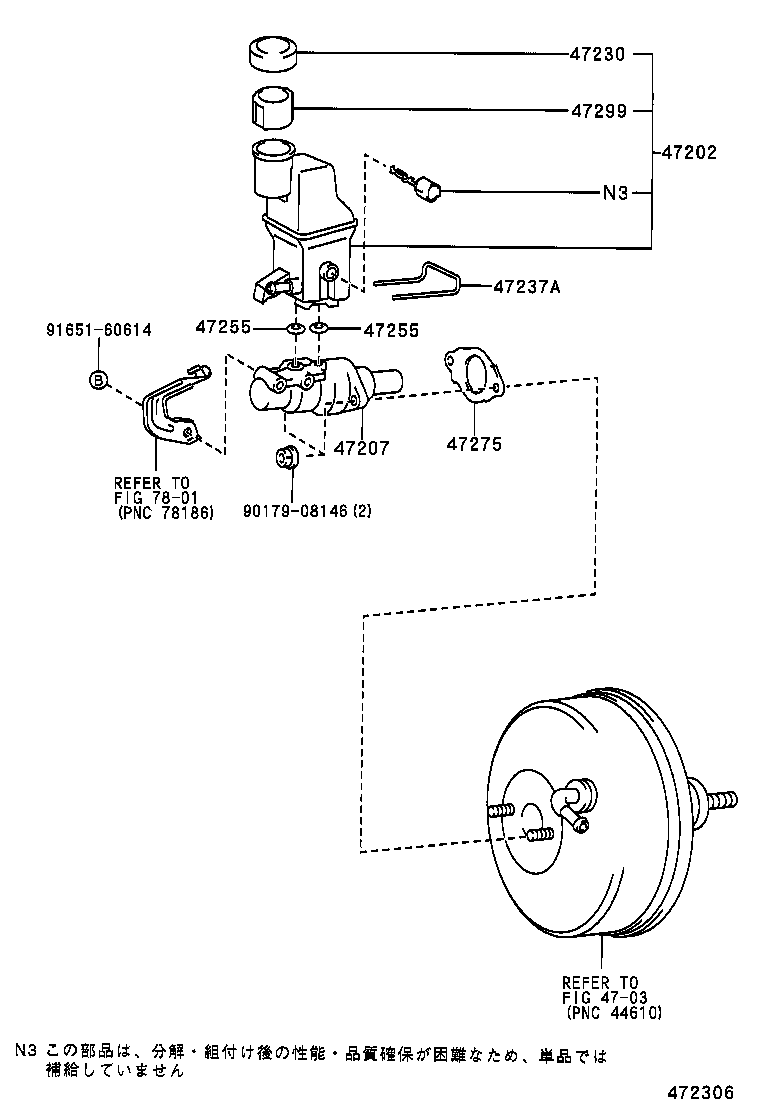

Click highlighted areas on diagram

diagram 4703 47202 47207 47230 47237A 47255 47255 47275 47299 7801 9017908146 9165160614
Part # Description Qty Price
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-48091

ACU2#,MCU2#

 1
47220-48101

MCU2#

ｱﾘ(VSC)

 1
47207 - CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK
47207-48020

MCU2#

ｱﾘ(VSC)

 1
47207-48010

ACU2#,MCU2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-48090

ACU2#,MCU2#

 1
47237A - STOPPER, BREKE MASTER CYLINDER RESERVOIR TANK
47237-48010

ACU2#,MCU2#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-52010

ACU2#,MCU2#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-52010

ACU2#,MCU2#

 2
47275 - GASKET, BRAKE MASTER CYLINDER
47275-52010

ACU2#,MCU2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-52010

ACU2#,MCU2#

 1
Common parts
90179-08146
91651-60614
Linked diagrams
4703
7801
