MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )MCU2#

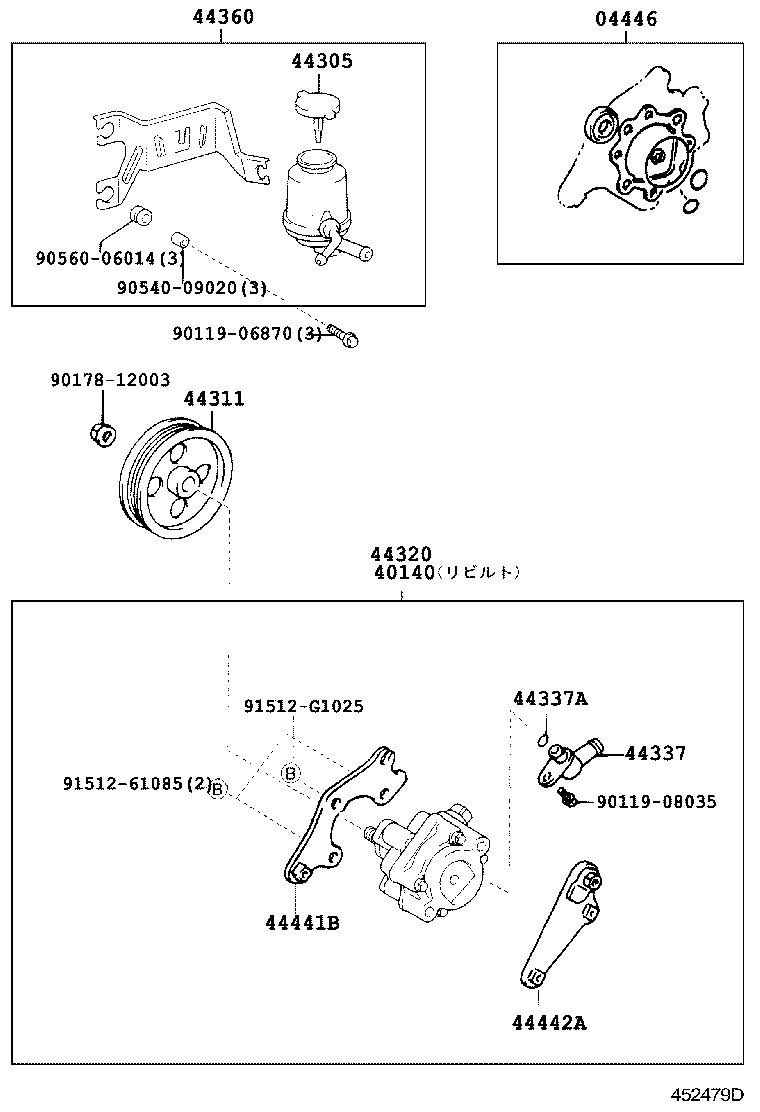

Click highlighted areas on diagram

diagram 04446 40140 44305 44311 44320 44337 44337A 44360 44441B 44442A 9011906870 9011908035 9017812003 9054009020 9056006014 9151261085 91512G1025
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-34010

MCU2#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-48030

MCU2#

TOYODA KOKI

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28030

ACU2#,MCU2#

 1
44311 - PULLEY, VANE PUMP
44311-28110

MCU2#

 1
44311-33020

MCU2#

 1
44320 - PUMP ASSY, VANE
44320-48030

MCU2#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-48020

MCU2#

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016

MCU2#

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-48030

ACU2#,MCU2#

 1
44441B - BRACKET, PUMP, FRONT
44441-28020

MCU2#

 1
44442A - BRACKET, VANE PUMP, REAR
44442-33021

MCU2#

 1
Common parts
90119-06870
90119-08035
90178-12003
90540-09020
90560-06014
91512-61085
91512-G1025
