MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011-0308)1MZFE

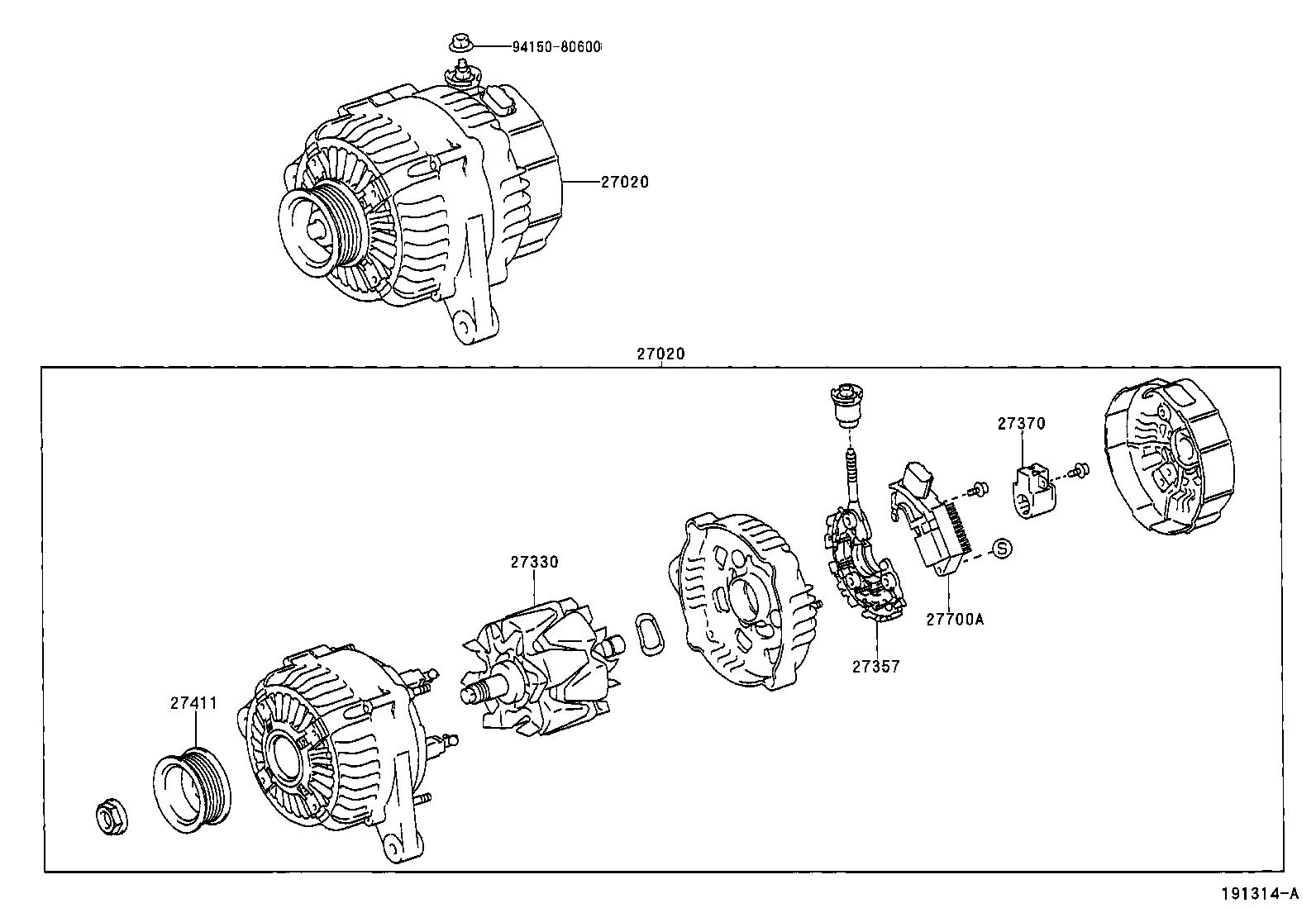

Click highlighted areas on diagram

12V 100A

diagram 27020 27020 27330 27357 27370 27411 27700A 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-20200

1MZFE..MCU2#

12V 100A

 1
27020 - ALTERNATOR ASSY
27060-20200

1MZFE..MCU2#

12V 100A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-20070

2AZFE,1MZFE..ACU2#,MCU2#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-70450

2AZFE,1MZFE..ACU2#,MCU2#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

2AZFE,1MZFE..ACU2#,MCU2#

 1
27411 - PULLEY, ALTERNATOR
27411-46080

1MZFE..MCU2#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-20050

2AZFE,1MZFE..ACU2#,MCU2#

 1
Common parts
94150-80600
