MCU25W-BWPGK (2000)

Toyota Kluger L/V

Production Nov 2000 - Aug 2003
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0011- )

Click highlighted areas on diagram

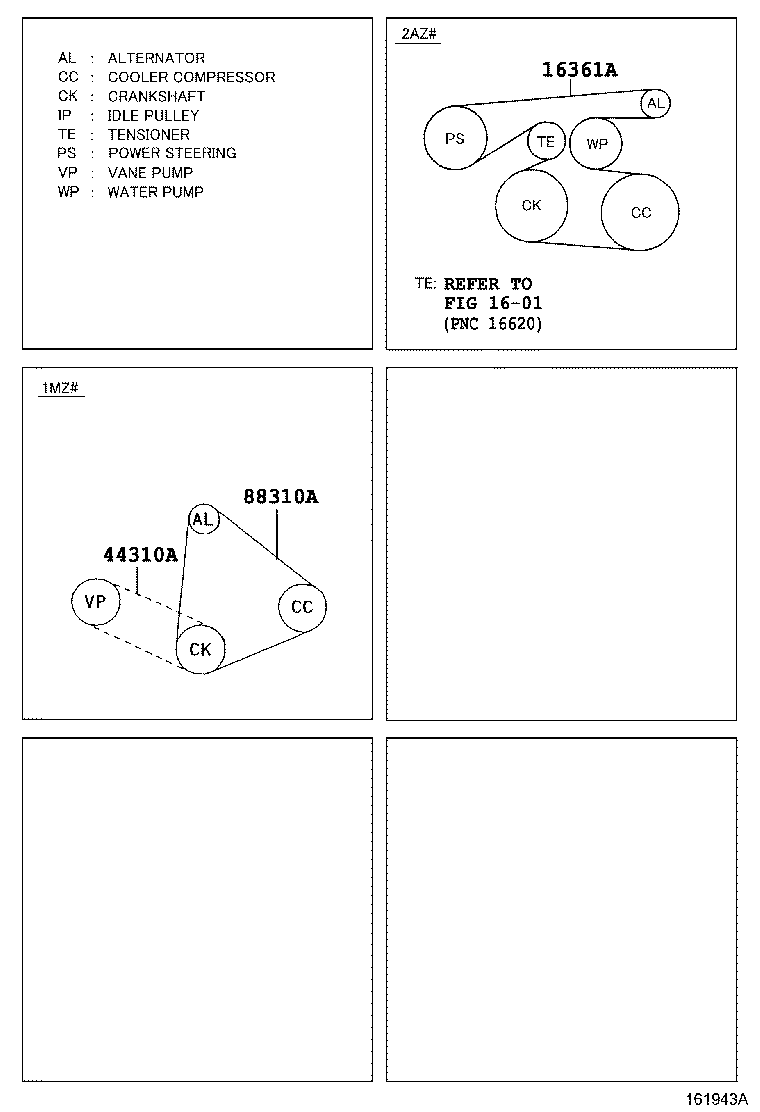

diagram 1601 16361A 44310A 88310A
Part # Description Qty Price
44310A - BELT, V(FOR VANE PUMP)
90080-91088

MCU2#

長さ=878

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99366-21040

MCU2#

長さ=1040

 1
Linked diagrams
1601
