MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

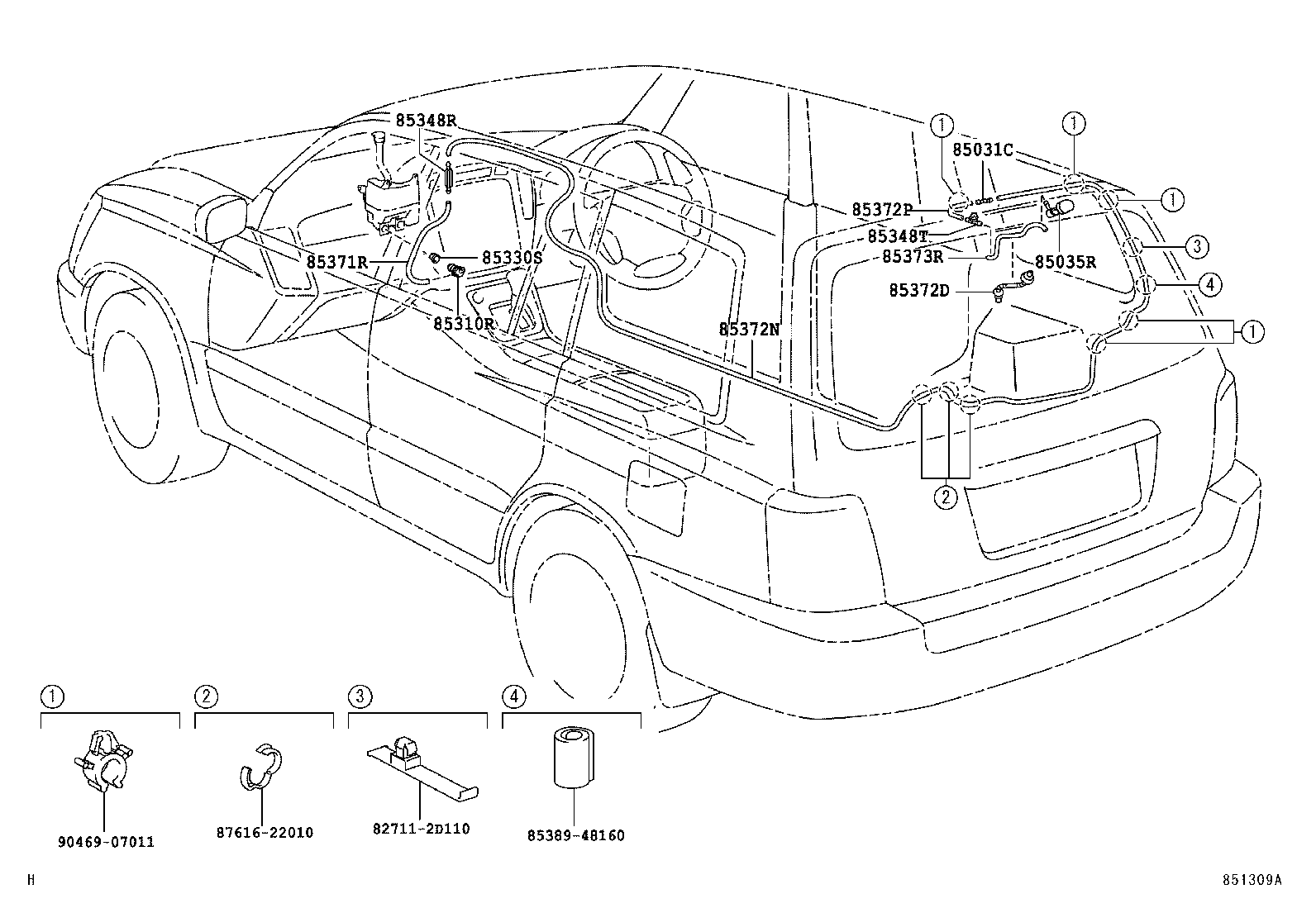

Click highlighted areas on diagram

diagram 827112D110 85031C 85035R 85310R 85330S 85348R 85348T 85371R 85372D 85372N 85372P 85373R 8538948160 8761622010 9046907011
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85321-26020

ACU2#,MCU2#

 1
85321-26020

ACU2#,MCU2#

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-48010

ACU2#,MCU2#

 1
85391-48010

ACU2#,MCU2#

 1
85310R - MOTOR ASSY, REAR WASHER
85330-60160

ACU2#,MCU2#

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

ACU2#,MCU2#

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-32150

ACU2#,MCU2#

 1
85349-32150

ACU2#,MCU2#

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-17050

ACU2#,MCU2#

 1
85375-17050

ACU2#,MCU2#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33299

ACU2#,MCU2#

*H,L=370

 1
90099-59227

ACU2#,MCU2#

長さ=210

 1
85372D - GROMMET, REAR WASHER HOSE
85373-44010

ACU2#,MCU2#

 1
85373-48010

ACU2#,MCU2#

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-59287

ACU2#,MCU2#

長さ=5925

 1
90099-59340

ACU2#,MCU2#

長さ=5670

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

ACU2#,MCU2#

*H,L=140

 1
90446-07001

ACU2#,MCU2#

*H,L=150

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

ACU2#,MCU2#

*H,L=300

 1
90099-33080

ACU2#,MCU2#

*H,L=300

 1
Common parts
82711-2D110
85389-48160
87616-22010
90469-07011
