MCU25W-BWAGK (2003)
Toyota Kluger L/V
Production
Aug 2003
-
May 2007
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0308- )

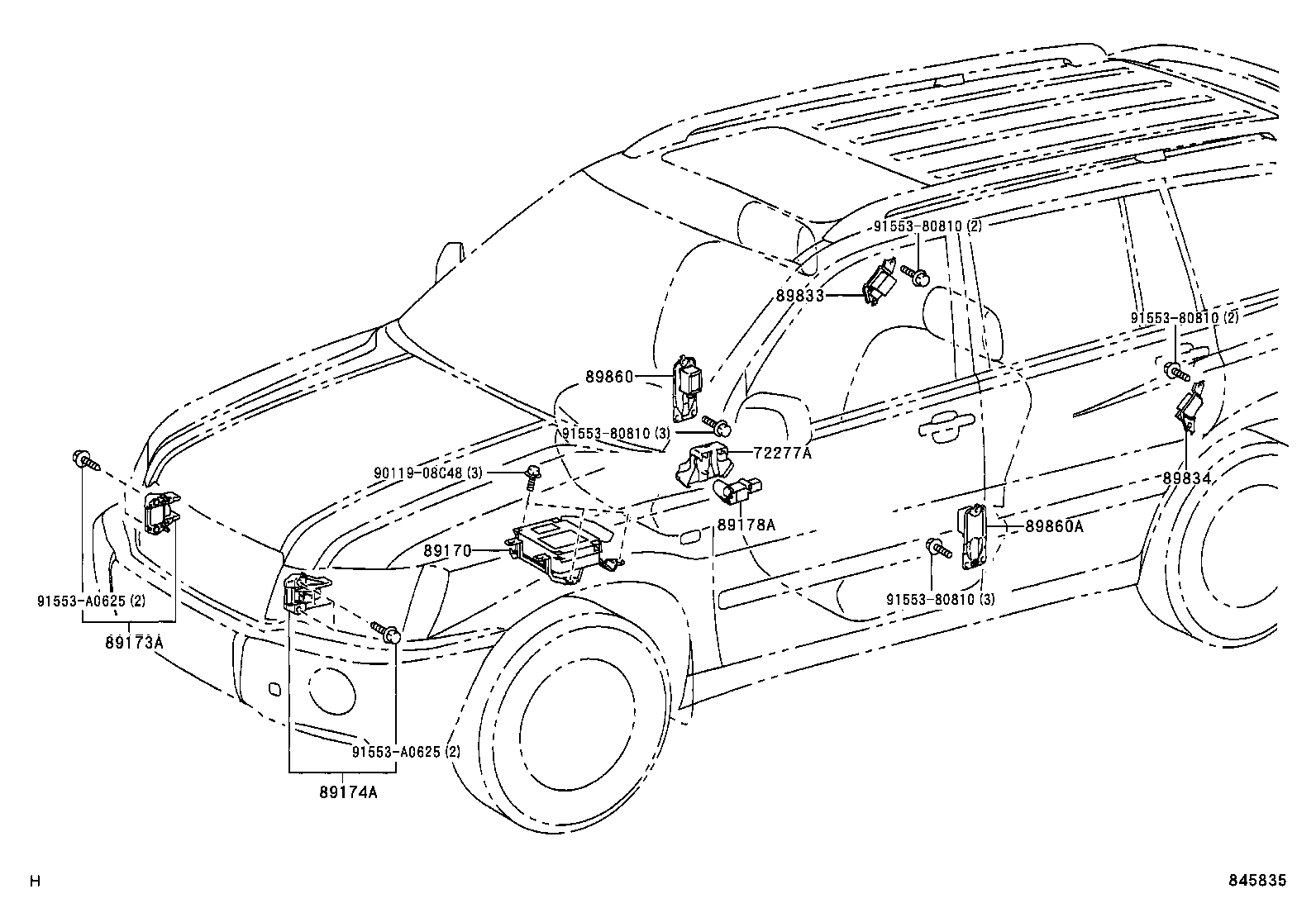

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR | ||||
| 72277-33010 |
ACU2#,MCU2# ｱﾘ(ﾏﾆﾕｱﾙ ｼ-ﾄ) |
1 | ||
| 72277-33021 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-48100 |
ACU2#,MCU2# |
1 | ||
| 89170-48120 |
ACU2#,MCU2# ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & SRS ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 89170-48040 |
ACU2#,MCU2# |
1 | ||
| 89170-48030 |
ACU2#,MCU2# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-49295 |
ACU2#,MCU2# |
1 | ||
| 89173-49265 |
ACU2#,MCU2# |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-49295 |
ACU2#,MCU2# |
1 | ||
| 89174-49115 |
ACU2#,MCU2# |
1 | ||
| 89178A - SENSOR, SEAT POSITION AIR BAG | ||||
| 89178-33040 |
ACU2#,MCU2# ｱﾘ(ﾏﾆﾕｱﾙ ｼ-ﾄ) |
1 | ||
| 89178-33030 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 89178-33050 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 89178-33020 |
ACU2#,MCU2#..05S ｱﾘ(ﾏﾆﾕｱﾙ ｼ-ﾄ) |
1 | ||
| 89833 - SENSOR, AIR BAG, REAR RH | ||||
| 89833-48020 |
ACU2#,MCU2# |
1 | ||
| 89833-48010 |
ACU2#,MCU2# |
1 | ||
| 89834 - SENSOR, AIR BAG, REAR LH | ||||
| 89834-48010 |
ACU2#,MCU2# |
1 | ||
| 89834-48020 |
ACU2#,MCU2# |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89860-48030 |
ACU2#,MCU2# |
1 | ||
| 89860-48010 |
ACU2#,MCU2# |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89860-48010 |
ACU2#,MCU2# |
1 | ||
| 89860-48030 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90119-08C48 | ||||
| 91553-80810 | ||||
| 91553-A0625 | ||||
