MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )MCU2#

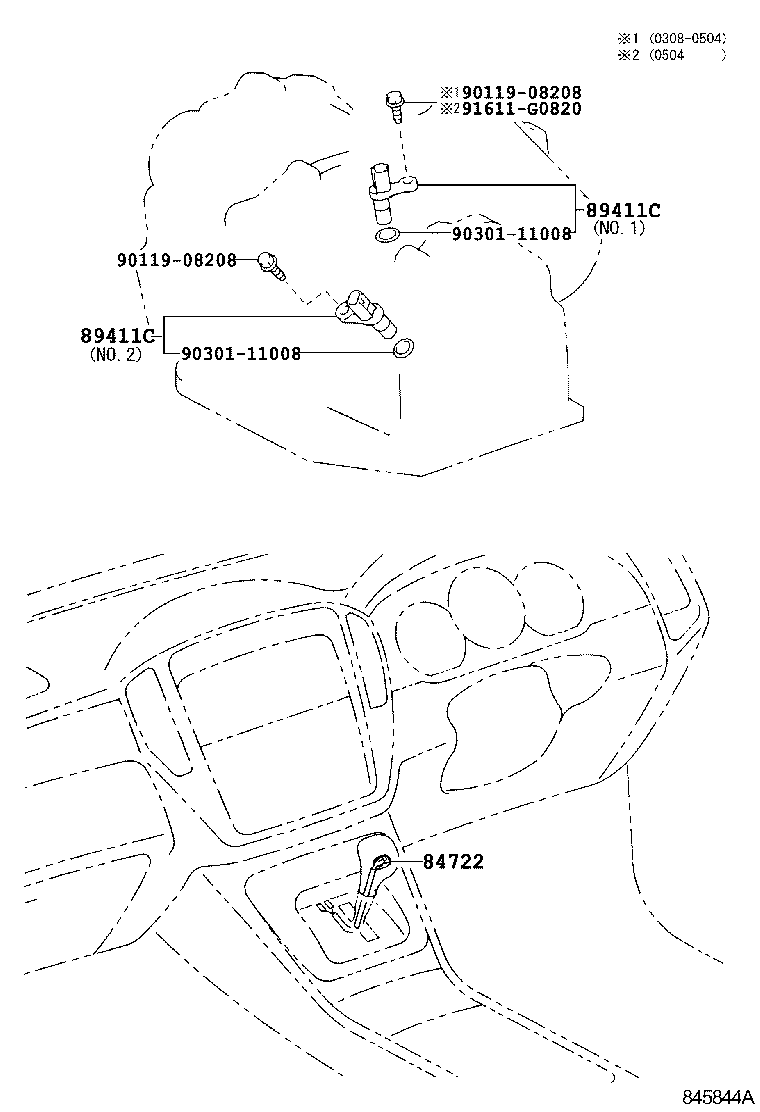

Click highlighted areas on diagram

diagram 84722 89411C 89411C 9011908208 9011908208 9030111008 9030111008 91611G0820
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-48040C0

ACU2#,MCU2#

BLACK,TRIM15

 1
84722-48080B0

MCU2#

SADDLE GRAY,TRIM1#

 1
84722-48080C0

MCU2#

BLACK,TRIM2#

 1
84722-48040B0

ACU2#,MCU2#

SADDLE GRAY,TRIM14

 1
89411C - SENSOR, SPEED
89413-24010

ACU2#,MCU2#

AISIN

 2
89413-48010

MCU2#

NO.1,TOYOTA

 1
89413-24010

MCU2#

AISIN

 1
89411-33010

ACU2#,MCU2#

TOYOTA

 2
89411C - SENSOR, SPEED
89413-24010

ACU2#,MCU2#

AISIN

 2
89413-48010

MCU2#

NO.1,TOYOTA

 1
89413-24010

MCU2#

AISIN

 1
89411-33010

ACU2#,MCU2#

TOYOTA

 2
Common parts
90119-08208
90301-11008
91611-G0820
