MCU25W-BWAGK (2003)
Toyota Kluger L/V

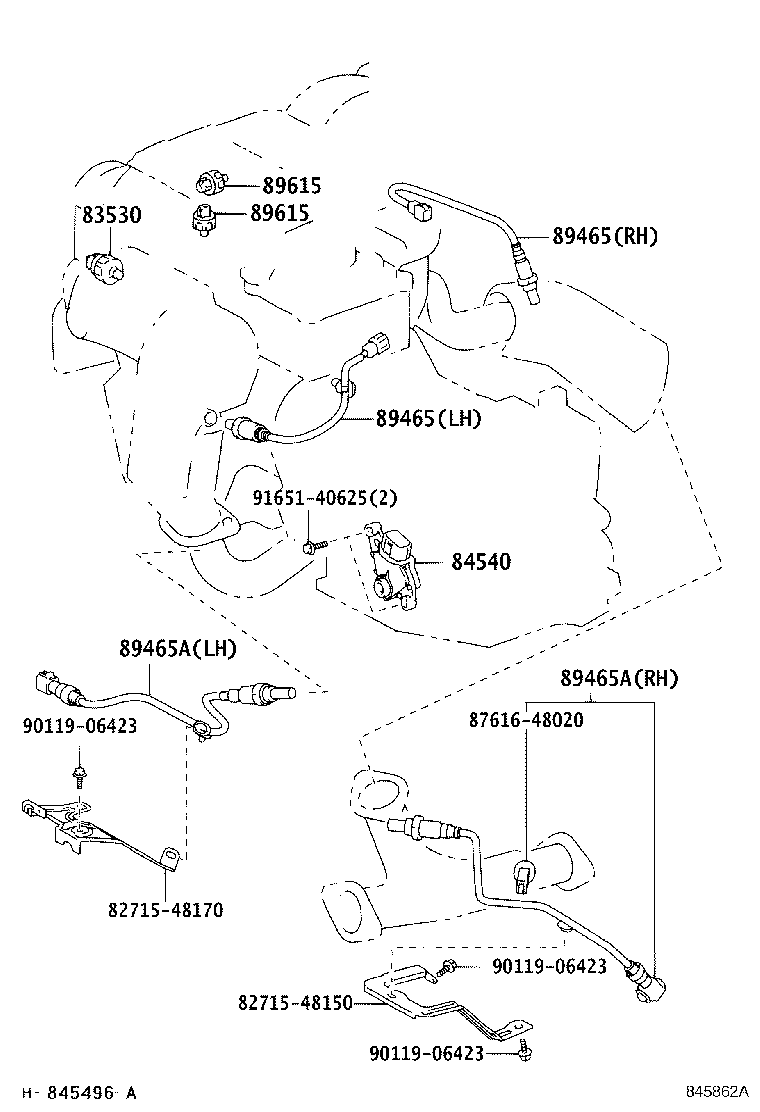

ILLUST NO. 1 OF 6(0308- )MCU2#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ACU2#,MCU2# (J),DENSO |
1 | ||
| 83530-0E010 |
ACU2#,MCU2# (L),DENSO |
1 | ||
| 83530-60020 |
ACU2#,MCU2# (J),YAZAKI |
1 | ||
| 83530-60020 |
ACU2#,MCU2# (J),YAZAKI |
1 | ||
| 83530-28020 |
ACU2#,MCU2# (J),DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-48010 |
ACU2#,MCU2# |
1 | ||
| 84540-12230 |
ACU2#,MCU2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-48160 |
MCU2# 右側 |
1 | ||
| 89465-41060 |
MCU2# 左側 |
1 | ||
| 89465-48050 |
MCU2# 右側 |
1 | ||
| 89465-48150 |
MCU2# 左側 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-48160 |
MCU2# 右側 |
1 | ||
| 89465-41060 |
MCU2# 左側 |
1 | ||
| 89465-48050 |
MCU2# 右側 |
1 | ||
| 89465-48150 |
MCU2# 左側 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-48170 |
MCU2# 左側 |
1 | ||
| 89465-48180 |
MCU2# 右側 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-48170 |
MCU2# 左側 |
1 | ||
| 89465-48180 |
MCU2# 右側 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12090 |
MCU2# |
2 | ||
| 89615-12090 |
MCU2# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12090 |
MCU2# |
2 | ||
| 89615-12090 |
MCU2# |
2 | ||
| Common parts | ||||
| 82715-48150 | ||||
| 82715-48170 | ||||
| 87616-48020 | ||||
| 90119-06423 | ||||
| 91651-40625 | ||||
ILLUST NO. 4 OF 6(0308- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-48010 |
ACU2#,MCU2# |
1 | ||
| 84720-48010 |
ACU2#,MCU2# |
1 | ||
| 84720B - BULB (FOR PATTERN SELECT SWITCH) | ||||
| 90010-01039 |
ACU2#,MCU2# 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01039 |
ACU2#,MCU2# 14V0.91W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
ACU2#,MCU2# |
1 | ||
| 84872-52040 |
ACU2#,MCU2# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17050 |
ACU2#,MCU2# |
1 | ||
| 85500-17050 |
ACU2#,MCU2# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01022 |
ACU2#,MCU2# 14V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01022 |
ACU2#,MCU2# 14V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-48010 |
ACU2#,MCU2# |
1 | ||
| 85513-48010 |
ACU2#,MCU2# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-48010 |
ACU2#,MCU2# |
1 | ||
| 85515-48010 |
ACU2#,MCU2# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
ACU2#,MCU2# |
1 | ||
| 85520-89101 |
ACU2#,MCU2# |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-33020 |
ACU2#,MCU2# |
1 | ||
| 85530-33020 |
ACU2#,MCU2# |
1 | ||
| 85535D - COVER, POWER OUTLET SOCKET, CENTER | ||||
| 85535-48050 |
ACU2#,MCU2# |
1 | ||
| 85535-48050 |
ACU2#,MCU2# |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

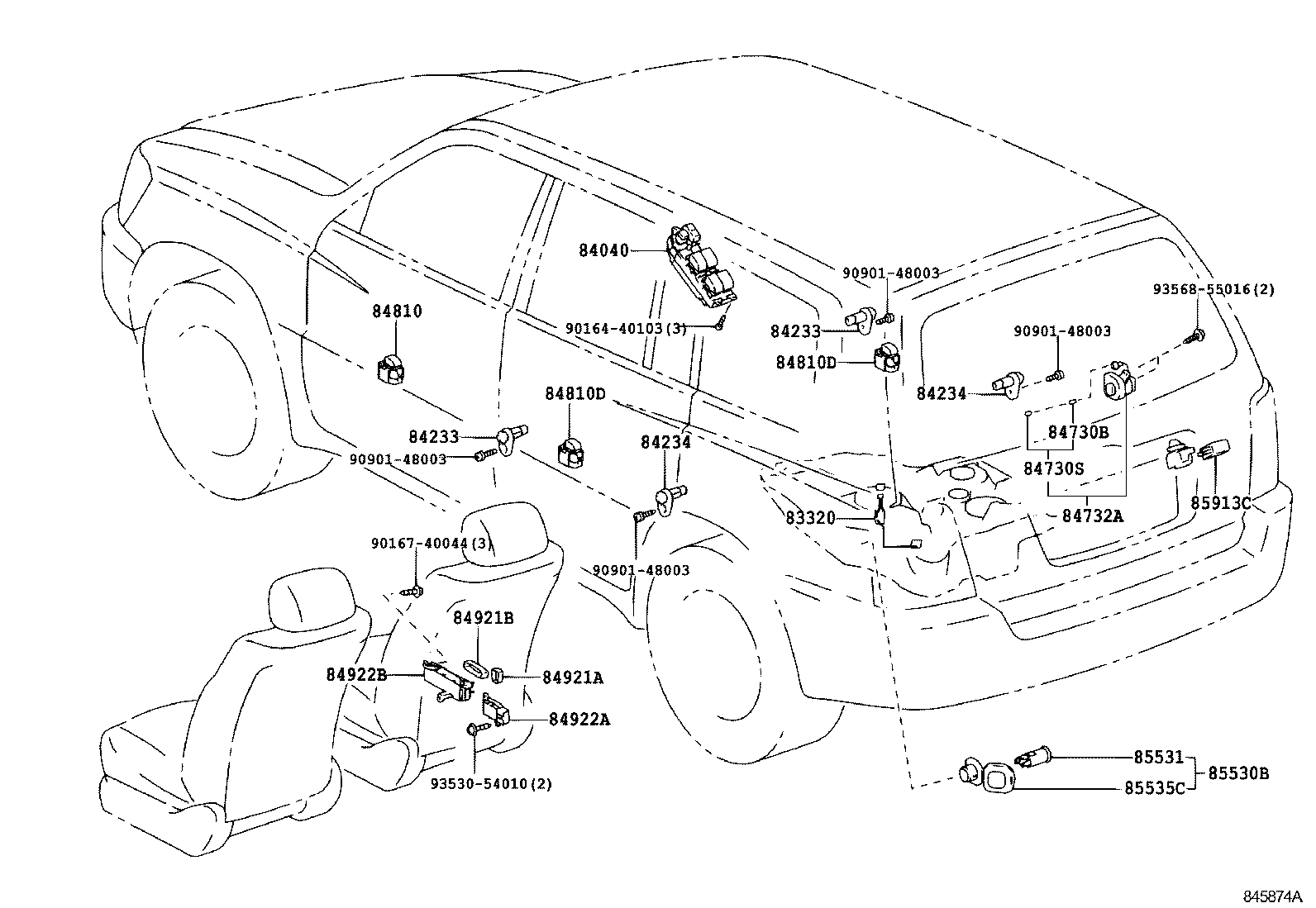

ILLUST NO. 6 OF 6(0308- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49175 |
ACU2#,MCU2# ｻﾌﾞ |
1 | ||
| 83320-48031 |
ACU2#,MCU2# |
1 | ||
| 83320-48012 |
ACU2#,MCU2# ﾒｲﾝ |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-48110 |
ACU2#,MCU2# |
1 | ||
| 84040-48111 |
ACU2#,MCU2# |
1 | ||
| 84040-48040 |
ACU2#,MCU2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACU2#,MCU2# |
2 | ||
| 84231-60070 |
ACU2#,MCU2# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ACU2#,MCU2# |
2 | ||
| 84231-60070 |
ACU2#,MCU2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACU2#,MCU2# |
2 | ||
| 84231-60070 |
ACU2#,MCU2# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ACU2#,MCU2# |
2 | ||
| 84231-60070 |
ACU2#,MCU2# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-48040 |
ACU2#,MCU2# |
1 | ||
| 84030-48040 |
ACU2#,MCU2# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-48040 |
ACU2#,MCU2# |
2 | ||
| 84030-48040 |
ACU2#,MCU2# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-48040 |
ACU2#,MCU2# |
2 | ||
| 84030-48040 |
ACU2#,MCU2# |
2 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-60110C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 84921-60110B4 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 84921-30120B0 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-60100B4 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 84921-60100C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 84921-24030B3 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60040B6 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 84920-30200B3 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 84920-60040C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-58010 |
ACU2#,MCU2# |
1 | ||
| 84922-30210 |
ACU2#,MCU2# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 85530-48010B3 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 85530-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 85530-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-48010 |
ACU2#,MCU2# |
1 | ||
| 85531-48010 |
ACU2#,MCU2# |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 85535-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 85535-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 85535-48010B3 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90167-40044 | ||||
| 90901-48003 | ||||
| 93530-54010 | ||||
| 93568-55016 | ||||
ILLUST NO. 3 OF 6(0308- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50020 |
ACU2#,MCU2# |
1 | ||
| 81980-50020 |
ACU2#,MCU2# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08285 |
ACU2#,MCU2# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
ACU2#,MCU2# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08228 |
MCU2# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08284 |
ACU2#,MCU2# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08286 |
ACU2#,MCU2# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08284 |
ACU2#,MCU2# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08286 |
ACU2#,MCU2# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08228 |
MCU25 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08283 |
ACU2#,MCU2# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08254 |
MCU2# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08254 |
ACU2#,MCU2# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08285 |
ACU2#,MCU2# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08285 |
ACU2#,MCU2# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08283 |
ACU2#,MCU2# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08228 |
MCU2# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08284 |
ACU2#,MCU2# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08286 |
ACU2#,MCU2# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08284 |
ACU2#,MCU2# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08286 |
ACU2#,MCU2# 140A,ｵｽ端子,赤茶 |
1 | ||
| 90982-08228 |
MCU25 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08283 |
ACU2#,MCU2# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08254 |
MCU2# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08254 |
ACU2#,MCU2# 120A,ｵｽ端子,白 |
1 | ||
| 90982-08285 |
ACU2#,MCU2# 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACU2#,MCU2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
ACU2#,MCU2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
ACU2#,MCU2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACU2#,MCU2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09011 |
ACU2#,MCU2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
ACU2#,MCU2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,PACIFIC |
1 | ||
| 90982-09008 |
ACU2#,MCU2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,PACIFIC |
1 | ||
| 90080-82021 |
ACU2#,MCU2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,SUMITOMO |
1 | ||
| 90080-82022 |
ACU2#,MCU2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,SUMITOMO |
1 | ||
| 90080-82033 |
ACU2#,MCU2# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
ACU2#,MCU2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,PACIFIC |
1 | ||
| 90080-82020 |
ACU2#,MCU2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,SUMITOMO |
1 | ||
| 90982-09012 |
ACU2#,MCU2# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09012 |
ACU2#,MCU2# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90080-82023 |
ACU2#,MCU2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
ACU2#,MCU2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
ACU2#,MCU2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
ACU2#,MCU2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
ACU2#,MCU2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09011 |
ACU2#,MCU2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
ACU2#,MCU2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,PACIFIC |
1 | ||
| 90982-09008 |
ACU2#,MCU2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,PACIFIC |
1 | ||
| 90080-82021 |
ACU2#,MCU2# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,SUMITOMO |
1 | ||
| 90080-82022 |
ACU2#,MCU2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,SUMITOMO |
1 | ||
| 90080-82033 |
ACU2#,MCU2# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
ACU2#,MCU2# 15A,ﾐﾆ ﾋｭｰｽﾞ,青,PACIFIC |
1 | ||
| 90080-82020 |
ACU2#,MCU2# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,SUMITOMO |
1 | ||
| 90982-09012 |
ACU2#,MCU2# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09012 |
ACU2#,MCU2# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90080-82023 |
ACU2#,MCU2# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82602A - BLOCK SUB-ASSY, RELAY | ||||
| 82602-48010 |
ACU2#,MCU2# |
1 | ||
| 82602-48010 |
ACU2#,MCU2# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-44010 |
ACU2#,MCU2# |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82732-48011 |
ACU2#,MCU2# |
1 | ||
| 82732-48011 |
ACU2#,MCU2# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-48041 |
ACU2#,MCU2# |
1 | ||
| 82730-48040 |
ACU2#,MCU2# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
ACU2#,MCU2# |
1 | ||
| 90986-01005 |
ACU2#,MCU2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
ACU2#,MCU2# |
1 | ||
| 84340-35030 |
MCU2# ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 84340-35030 |
MCU2# ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 84340-47020 |
MCU2# ｱﾘ(ｸﾙ-ｽﾞｺﾝﾄﾛ-ﾙ) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ACU2#,MCU2# |
1 | ||
| 84550-16060 |
ACU2#,MCU2# |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-48030 |
ACU2#,MCU2# |
1 | ||
| 84718-48010 |
ACU2#,MCU2# |
1 | ||
| 84718B - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-48040 |
MCU2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
ACU2#,MCU2# |
1 | ||
| 90987-04002 |
ACU2#,MCU2# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02009 |
ACU2#,MCU2# |
1 | ||
| 90987-02009 |
ACU2#,MCU2# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02020 |
ACU2#,MCU2# |
1 | ||
| 90987-02027 |
ACU2#,MCU2# |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02027 |
ACU2#,MCU2# |
1 | ||
| 90987-02020 |
ACU2#,MCU2# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
ACU2#,MCU2# |
1 | ||
| 90987-02020 |
ACU2#,MCU2# |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02009 |
ACU2#,MCU2# |
1 | ||
| 90987-02009 |
ACU2#,MCU2# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-48030 |
ACU2#,MCU2# |
1 | ||
| 89111-48010 |
ACU2#,MCU2# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-48200 |
ACU2#,MCU2# |
1 | ||
| 89221-48160 |
ACU2#,MCU2# |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-48131 |
ACU25,MCU25 |
1 | ||
| 89960-48030 |
ACU2#,MCU2# |
1 | ||
| 89960-48130 |
ACU25,MCU25 |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-06159 | ||||
| 90179-06274 | ||||
| 90467-06155 | ||||
| 91651-40616 | ||||
| 93313-14010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
