MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

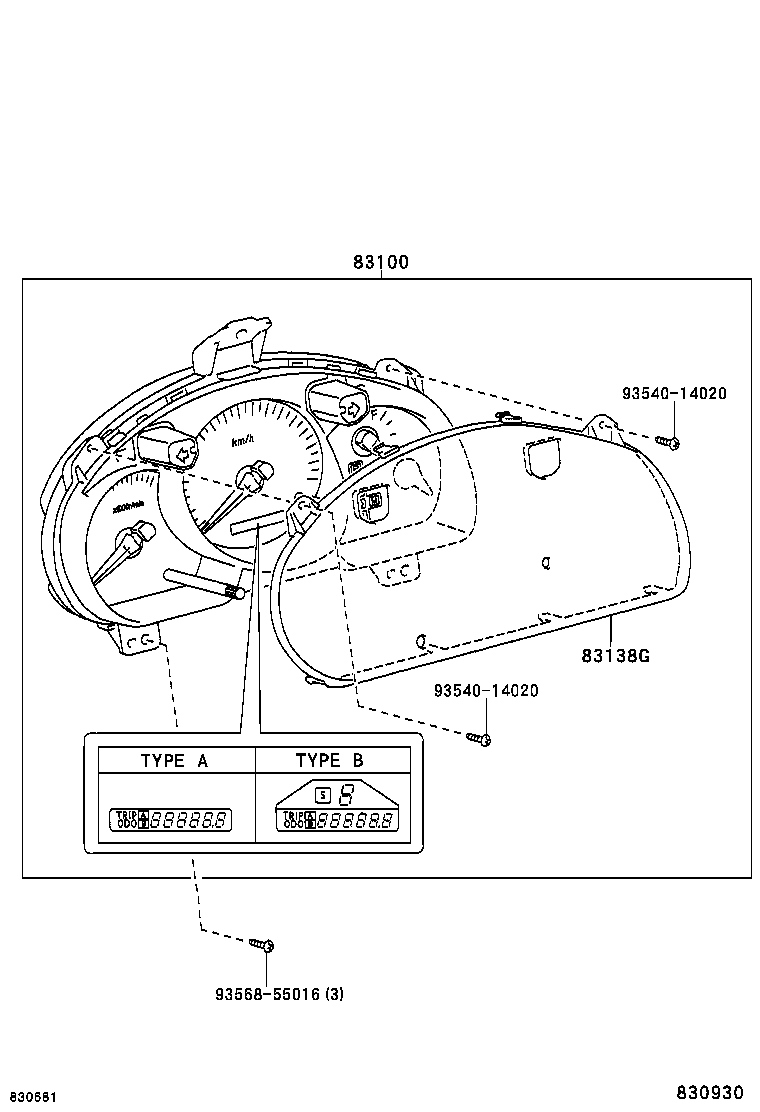

Click highlighted areas on diagram

diagram 83100 83138G 9354014020 9354014020 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-48870

MCU2#

DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83800-48390

MCU2#

DENSO,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
83800-48090

ACU2#,MCU2#

DENSO

 1
83800-48080

ACU2#,MCU2#

DENSO,S ﾊﾟﾂｹ-ｼﾞ *(S)

 1
83138G - GLASS, COMBINATION METER
83852-48080

ACU2#,MCU2#

 1
83852-48080

ACU2#,MCU2#

 1
Common parts
93540-14020
93568-55016
