MCU25W-BWAGK (2003)
Toyota Kluger L/V

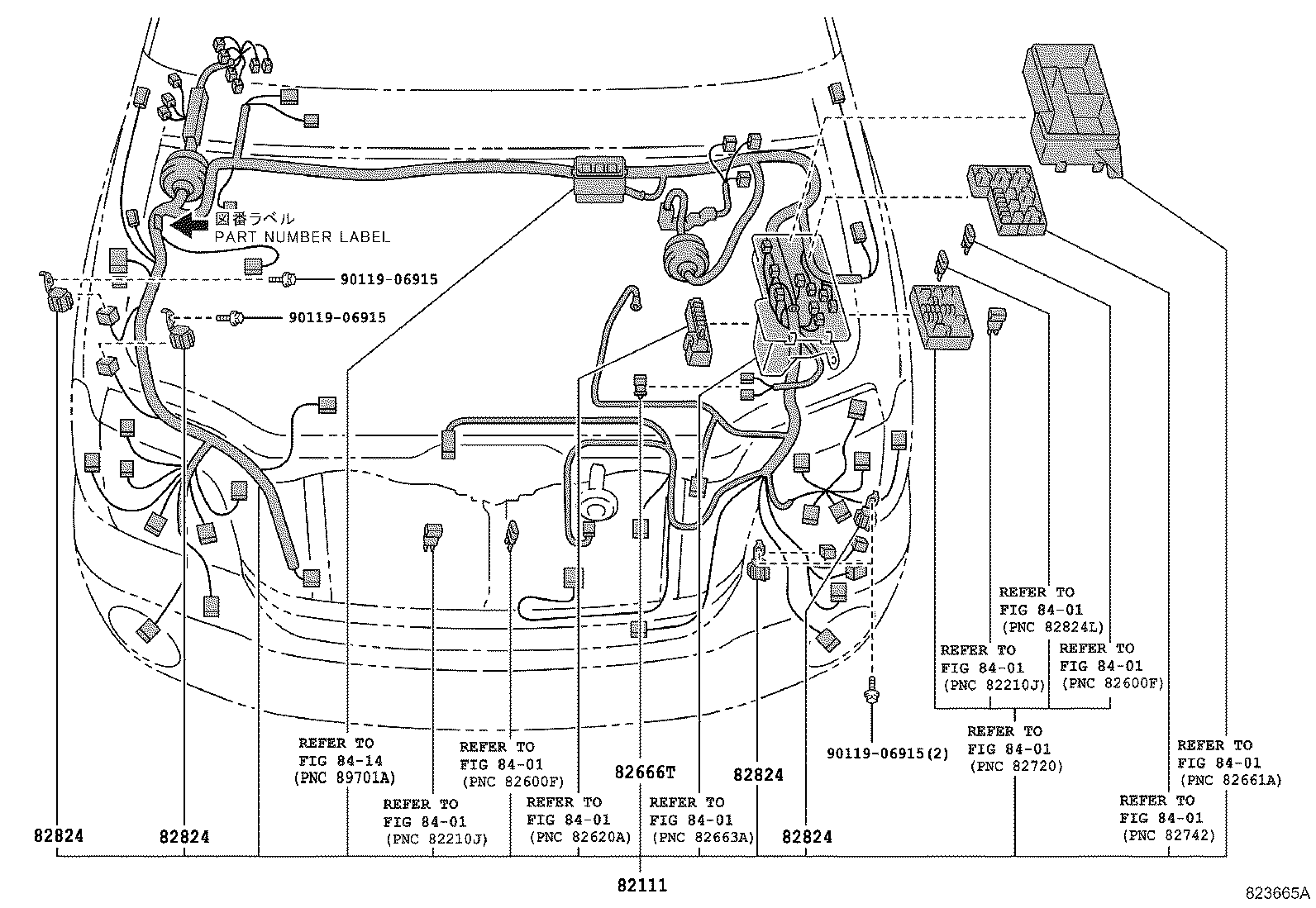

ILLUST NO. 1 OF10(0308- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-48220 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48220 |
1 | ||
| 82111-48290 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48290 |
1 | ||
| 82111-48230 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48230 |
1 | ||
| 82111-48270 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48270 |
1 | ||
| 82111-48260 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48260 |
1 | ||
| 82111-48250 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48250 |
1 | ||
| 82111-48240 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48240 |
1 | ||
| 82111-48280 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48280 |
1 | ||
| 82111-48A10 |
MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-48A10 |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-20270 |
ACU2#,MCU2# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ACU2#,MCU2# |
4 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ACU2#,MCU2# |
4 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ACU2#,MCU2# |
4 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
ACU2#,MCU2# |
4 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8414 | ||||

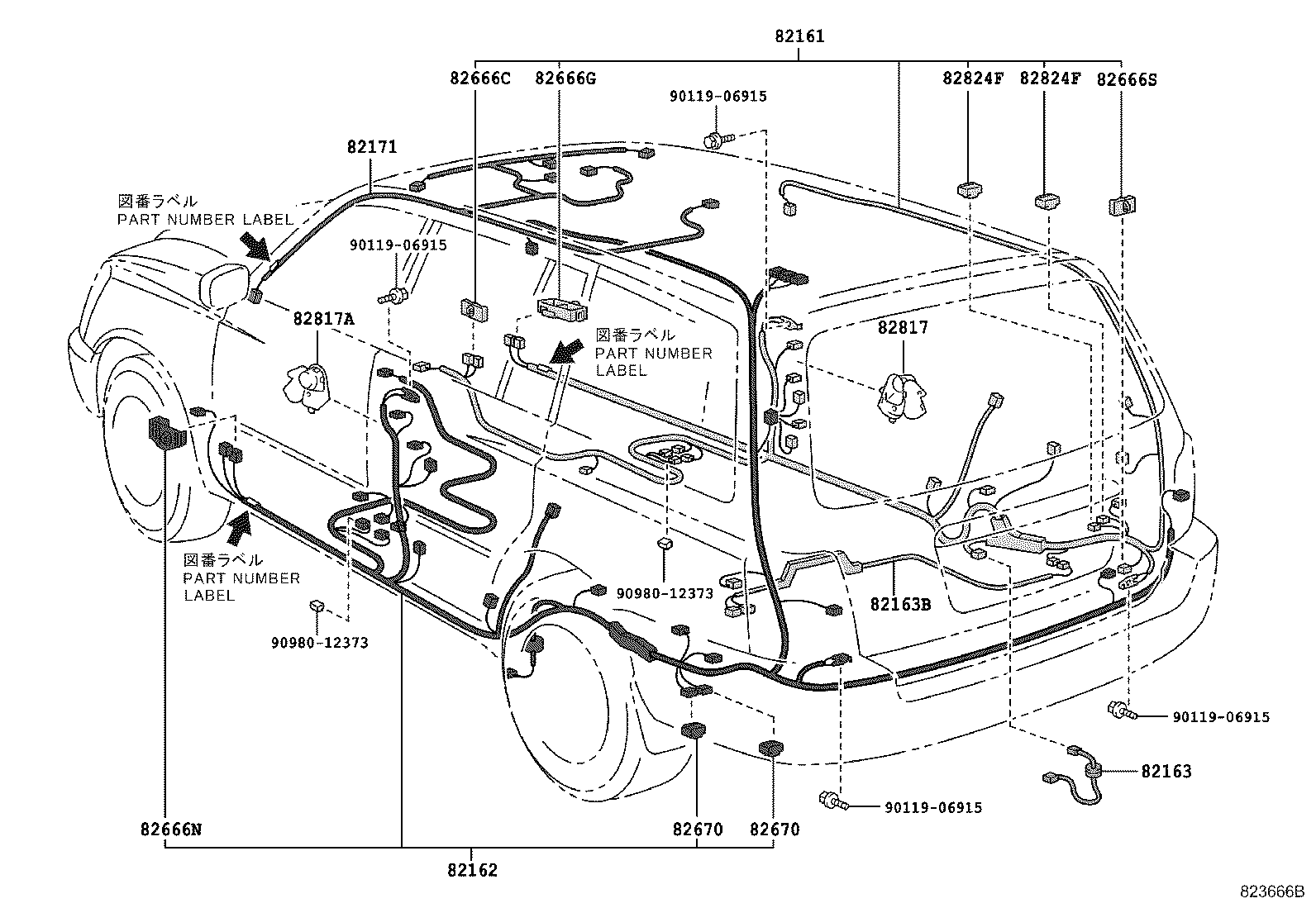

ILLUST NO. 6 OF10(0308- )
ﾌﾛｱ & ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-48270 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48270 |
1 | ||
| 82161-48290 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48290 |
1 | ||
| 82161-48330 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48330 |
1 | ||
| 82161-48320 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48320 |
1 | ||
| 82161-48310 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48310 |
1 | ||
| 82161-48340 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48340 |
1 | ||
| 82161-48300 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48300 |
1 | ||
| 82161-48260 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48260 |
1 | ||
| 82161-48280 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48280 |
1 | ||
| 82161-48A10 |
ACU2#,MCU2#..05S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48A10 |
1 | ||
| 82161-48A00 |
ACU2#,MCU2#..05S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82161-48A00 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-48630 |
ACU2#,MCU2#..05S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-48630 |
1 | ||
| 82162-48640 |
ACU2#,MCU2#..05S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-48640 |
1 | ||
| 82162-48220 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-48220 |
1 | ||
| 82162-48660 |
ACU2#,MCU2#..05S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-48660 |
1 | ||
| 82162-48650 |
ACU2#,MCU2#..05S ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-48650 |
1 | ||
| 82162-48260 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-48260 |
1 | ||
| 82162-48240 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82162-48240 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-48020 |
ACU25,MCU25 |
1 | ||
| 82163-48060 |
ACU25,MCU25 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-48290 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82171-48290 |
1 | ||
| 82171-48080 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82171-48080 |
1 | ||
| 82171-48090 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82171-48090 |
1 | ||
| 82171-48100 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82171-48100 |
1 | ||
| 82171-48300 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82171-48300 |
1 | ||
| 82171-48070 |
ACU2#,MCU2# ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82171-48070 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60030 |
ACU2#,MCU2# ﾌﾛｱ ﾜｲﾔ |
1 | ||
| 82666-48030 |
ACU2#,MCU2# ｶｳﾙ ﾜｲﾔ |
1 | ||
| 82666-48030 |
ACU2#,MCU2# ｶｳﾙ ﾜｲﾔ |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-48020 |
ACU2#,MCU2# |
1 | ||
| 82666-48020 |
ACU2#,MCU2# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-48050 |
ACU2#,MCU2# |
1 | ||
| 82666-48050 |
ACU2#,MCU2# |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-22070 |
ACU2#,MCU2# |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20480 |
ACU2#,MCU2# |
3 | ||
| 82670-20480 |
ACU2#,MCU2# |
3 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-20480 |
ACU2#,MCU2# |
3 | ||
| 82670-20480 |
ACU2#,MCU2# |
3 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2A450 |
ACU2#,MCU2# |
1 | ||
| 82817-2A450 |
ACU2#,MCU2# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-2A460 |
ACU2#,MCU2# |
1 | ||
| 82817-2A460 |
ACU2#,MCU2# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
ACU2#,MCU2# |
1 | ||
| 82824-50110 |
ACU2#,MCU2# |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
ACU2#,MCU2# |
1 | ||
| 82824-50110 |
ACU2#,MCU2# |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90980-12373 | ||||

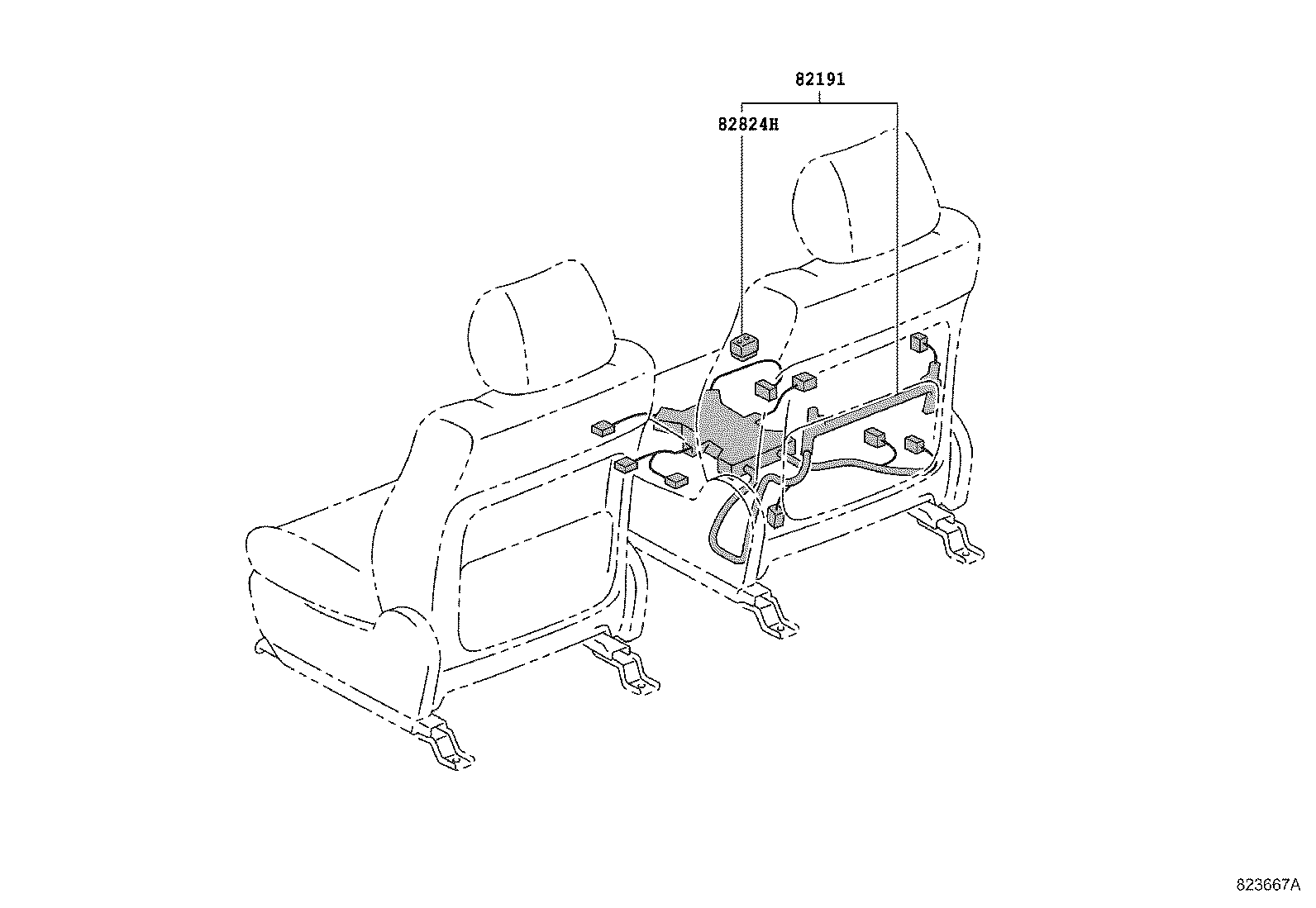

ILLUST NO. 7 OF10(0308- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-48130 |
ACU2#,MCU2# |
1 | ||
| 82191-48100 |
ACU2#,MCU2# |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-48100 |
ACU2#,MCU2# |
1 | ||

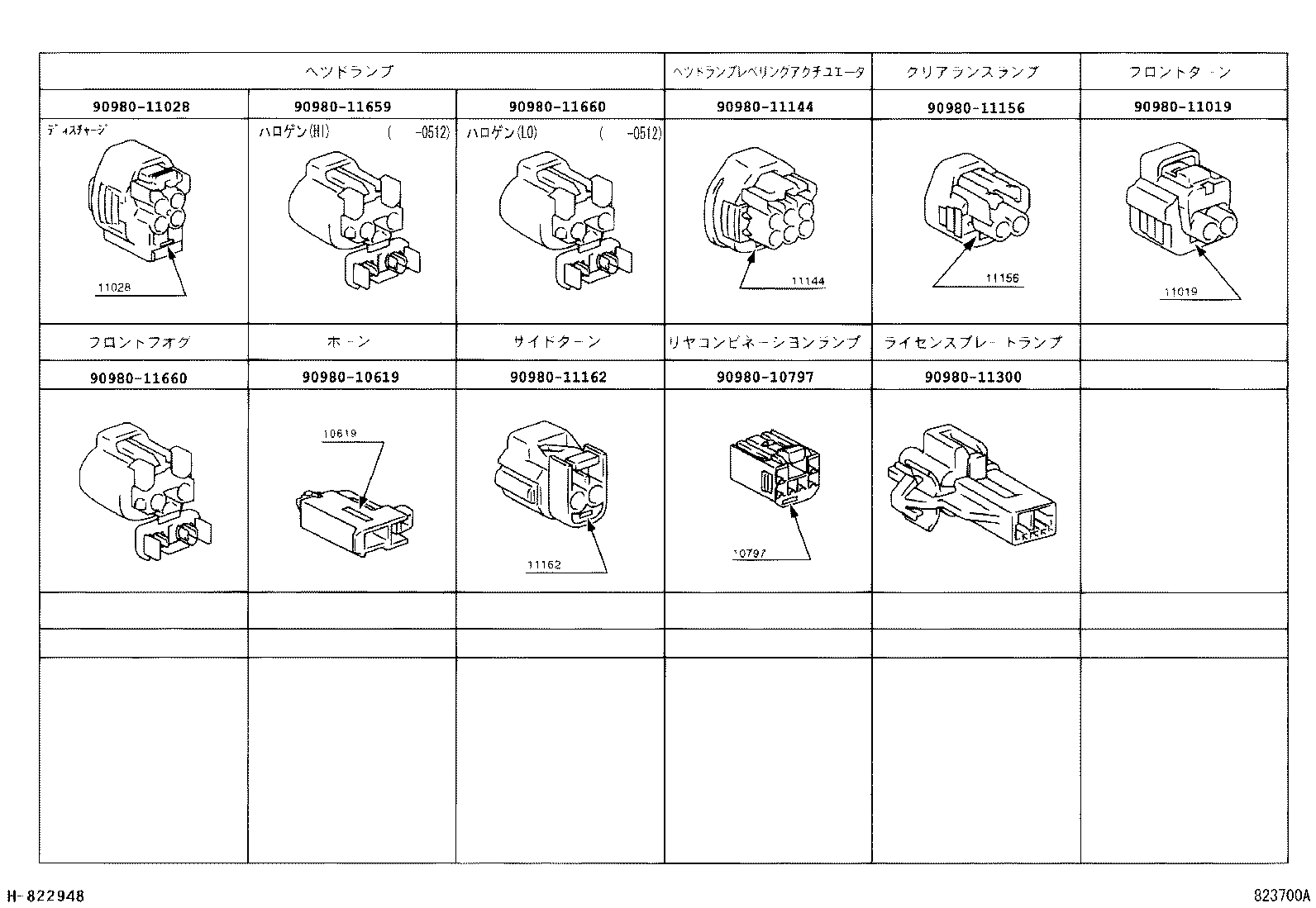

ILLUST NO.10 OF10(0308- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11019 | ||||
| 90980-11028 | ||||
| 90980-11144 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11300 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
