MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

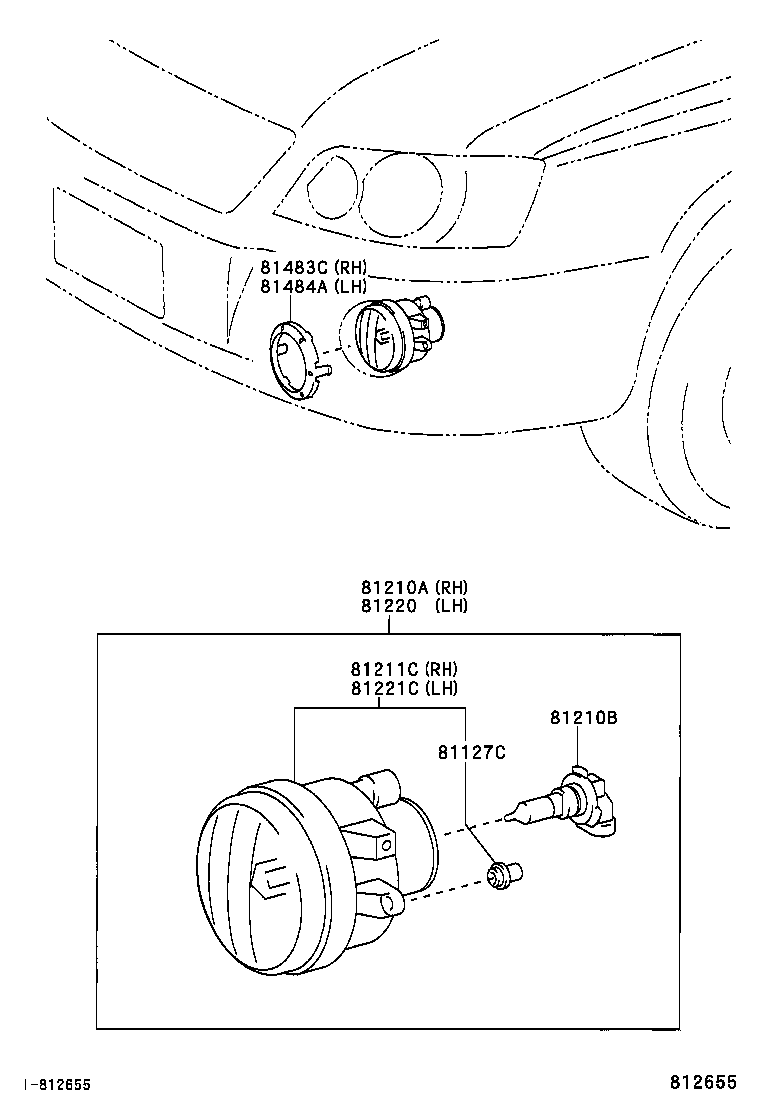

Click highlighted areas on diagram

diagram 81127C 81210A 81210B 81211C 81220 81221C 81483C 81484A
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

ACU2#,MCU2#

 2
90075-10811

ACU2#,MCU2#

 2
81210A - LAMP ASSY, FOG, RH
81210-52060

ACU2#,MCU2#

 1
81210B - BULB, FOG LAMP
90981-13057

ACU2#,MCU2#

12V 35W

 2
90981-13047

ACU2#,MCU2#

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-52060

ACU2#,MCU2#

 1
81211-48010

ACU2#,MCU2#

 1
81220 - LAMP ASSY, FOG, LH
81220-52060

ACU2#,MCU2#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-48010

ACU2#,MCU2#

 1
81221-52060

ACU2#,MCU2#

 1
81483C - PROTECTOR, FOG LAMP, RH
81483-48010

ACU2#,MCU2#

 1
81484A - PROTECTOR, FOG LAMP, LH
81483-48010

ACU2#,MCU2#

 1
