MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

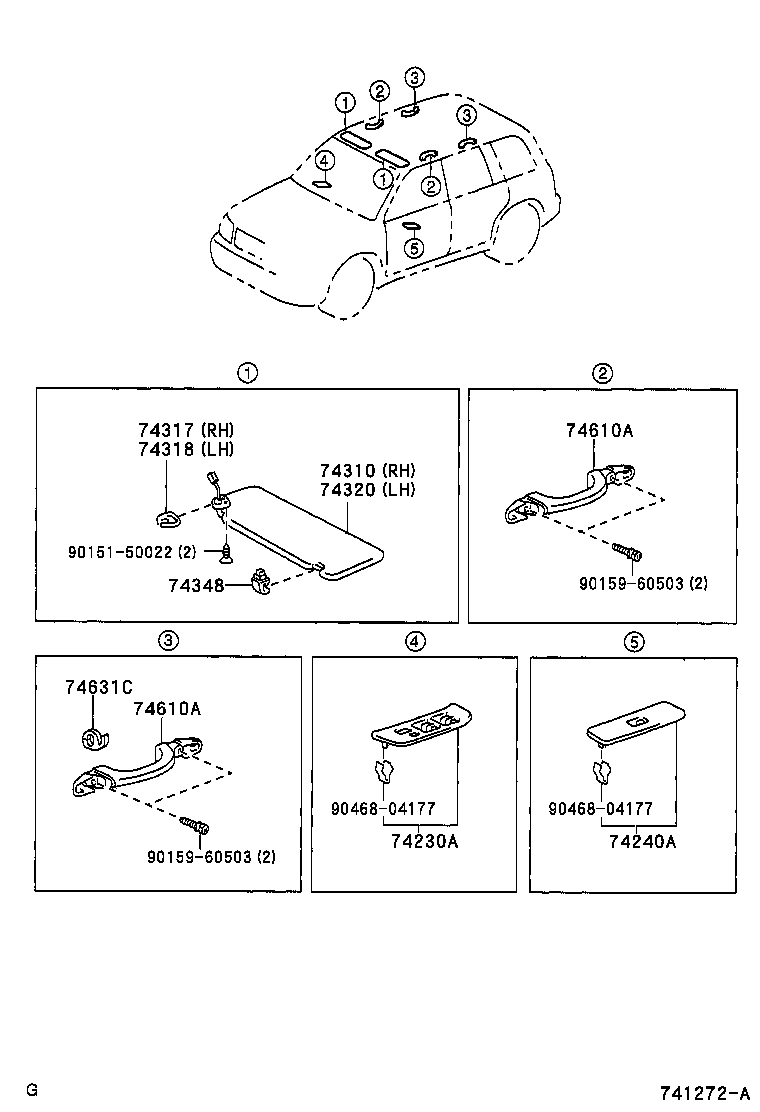

Click highlighted areas on diagram

diagram 74230A 74240A 74310 74317 74318 74320 74348 74610A 74610A 74631C 9015150022 9015960503 9015960503 9046804177 9046804177
Part # Description Qty Price
74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH
74230-48090B0

ACU2#,MCU2#

SADDLE GRAY,TRIM14

 1
74230-48090C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
74230-48090B0

ACU2#,MCU2#

SADDLE GRAY,TRIM1#

 1
74230-48090C0

ACU2#,MCU2#

BLACK,TRIM15

 1
74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH
74240-48090C0

ACU2#,MCU2#

BLACK,TRIM15

 1
74240-48090C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
74240-48090B0

ACU2#,MCU2#

SADDLE GRAY,TRIM14

 1
74240-48090B0

ACU2#,MCU2#

SADDLE GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-48070B1

ACU2#,MCU2#

ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),LT. GRAY,TRIM15

 1
74310-48070B0

ACU2#,MCU2#

ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),ME. CHARCOAL,TRIM14

 1
74310-48080B0

ACU2#,MCU2#

LT. GRAY,TRIM1#

 1
74310-48200B1

ACU2#,MCU2#

ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),GRAY,TRIM1#,2#

 1
74317 - COVER, VISOR BRACKET, RH
74317-30010B0

ACU2#,MCU2#

LI.GRAY,TRIM15

 1
74317-30010B3

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 1
74317-30010B6

ACU2#,MCU2#

GRAY,TRIM1#,2#

 1
74318 - COVER, VISOR BRACKET, LH
74317-30010B3

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 1
74317-30010B0

ACU2#,MCU2#

LI.GRAY,TRIM15

 1
74317-30010B6

ACU2#,MCU2#

GRAY,TRIM1#,2#

 1
74320 - VISOR ASSY, LH
74320-48240B1

ACU2#,MCU2#

ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),GRAY,TRIM1#,2#

 1
74320-48090B1

ACU2#,MCU2#

ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),LT. GRAY,TRIM15

 1
74320-48100B0

ACU2#,MCU2#

LT. GRAY,TRIM1#

 1
74320-48090B0

ACU2#,MCU2#

ｱﾘ(ﾊﾞﾆﾃｲ ﾗﾝﾌﾟ),ME. CHARCOAL,TRIM14

 1
74348 - HOLDER, VISOR
74348-12040B1

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 2
74348-12040B2

ACU2#,MCU2#

LT.GRAY,TRIM15

 2
74348-12040B4

ACU2#,MCU2#

GRAY,TRIM1#,2#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-48010B3

ACU2#,MCU2#

LT.GRAY,TRIM15,ﾌﾛﾝﾄ

 2
74610-48010B2

ACU2#,MCU2#

MD.CHARCOAL,TRIM14,ﾌﾛﾝﾄ

 2
74611-48010B0

ACU2#,MCU2#

GRAY,TRIM1#,2#

 4
74610-48020B1

ACU2#,MCU2#

MD.CHARCOAL,TRIM14,ﾘﾔ

 2
74610-48020B0

ACU2#,MCU2#

LT.GRAY,TRIM15,ﾘﾔ

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-48010B3

ACU2#,MCU2#

LT.GRAY,TRIM15,ﾌﾛﾝﾄ

 2
74610-48010B2

ACU2#,MCU2#

MD.CHARCOAL,TRIM14,ﾌﾛﾝﾄ

 2
74611-48010B0

ACU2#,MCU2#

GRAY,TRIM1#,2#

 4
74610-48020B1

ACU2#,MCU2#

MD.CHARCOAL,TRIM14,ﾘﾔ

 2
74610-48020B0

ACU2#,MCU2#

LT.GRAY,TRIM15,ﾘﾔ

 2
74631C - HOOK, COAT
74631-48010B0

ACU2#,MCU2#

GRAY,TRIM1#,2#

 2
74631-28010B3

ACU2#,MCU2#

LT.GRAY,TRIM15

 2
74631-28010B4

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 2
Common parts
90151-50022
90159-60503
90468-04177
