MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0308- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼ-ﾄ

diagram 73178A 73178A 73200A 73200A 73210 7321475010 73219 73220 73230 73233 73233 73240 9010511058 9010511058 9010911027 9010911027 9010911028 9010911028 9017911010 9017911010 91511B0614 91511B0614 91512G1025 91512G1025
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B6

ACU2#,MCU2#

LT.GRAY,TRIM15

 2
73178-33020B1

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 2
73178-33020P3

ACU2#,MCU2#

GRAY,TRIM1#,2#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020B6

ACU2#,MCU2#

LT.GRAY,TRIM15

 2
73178-33020B1

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 2
73178-33020P3

ACU2#,MCU2#

GRAY,TRIM1#,2#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52010B6

ACU2#,MCU2#

GRAY,TRIM1#,2#

 2
73200-52010B2

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 2
73200-52010B4

ACU2#,MCU2#

LT.GRAY,TRIM15

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-52010B6

ACU2#,MCU2#

GRAY,TRIM1#,2#

 2
73200-52010B2

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 2
73200-52010B4

ACU2#,MCU2#

LT.GRAY,TRIM15

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-48030B2

ACU2#,MCU2#

GRAY,TRIM14

 1
73210-48030C1

ACU2#,MCU2#

BLACK,TRIM15

 1
73210-48120C1

ACU2#,MCU2#

BLACK,TRIM2#

 1
73210-48120B0

ACU2#,MCU2#

GRAY,TRIM1#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

ACU2#,MCU2#

ﾌﾞﾗｯｸ

 1
73219-33030

ACU2#,MCU2#

ﾍﾞｰｼﾞｭ

 1
73219-33020

ACU2#,MCU2#

ｸﾞﾚｰ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-48030C1

ACU2#,MCU2#

BLACK,TRIM15

 1
73220-48030B2

ACU2#,MCU2#

GRAY,TRIM14

 1
73220-48100C1

ACU2#,MCU2#

BLACK,TRIM2#

 1
73220-48100B0

ACU2#,MCU2#

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-48010C0

ACU2#,MCU2#

BLACK,TRIM1#

 1
73230-48030B2

ACU2#,MCU2#

ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1#

 1
73230-48180C0

ACU2#,MCU2#

ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2#

 1
73230-48180B0

ACU2#,MCU2#

ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),NEW GRAY,TRIM1#

 1
73230-48190B0

ACU2#,MCU2#

NEW GRAY,TRIM1#

 1
73230-48190C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010C0

ACU2#,MCU2#

BLACK,TRIM15

 2
73233-33010B2

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 2
73233-33010C0

ACU2#,MCU2#

BLACK,TRIM2#

 2
73233-33010P3

ACU2#,MCU2#

GRAY,TRIM1#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010C0

ACU2#,MCU2#

BLACK,TRIM15

 2
73233-33010B2

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 2
73233-33010C0

ACU2#,MCU2#

BLACK,TRIM2#

 2
73233-33010P3

ACU2#,MCU2#

GRAY,TRIM1#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-48020B2

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 1
73230-48140C0

ACU2#,MCU2#

ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2#

 1
73230-48200C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
73230-48020C0

ACU2#,MCU2#

BLACK,TRIM15

 1
73230-48200B0

ACU2#,MCU2#

NEW GRAY,TRIM1#

 1
73230-48140B0

ACU2#,MCU2#

ｱﾘ(ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ),NEW GRAY,TRIM1#

 1
Common parts
73214-75010
90105-11058
90109-11027
90109-11028
90179-11010
91511-B0614
91512-G1025

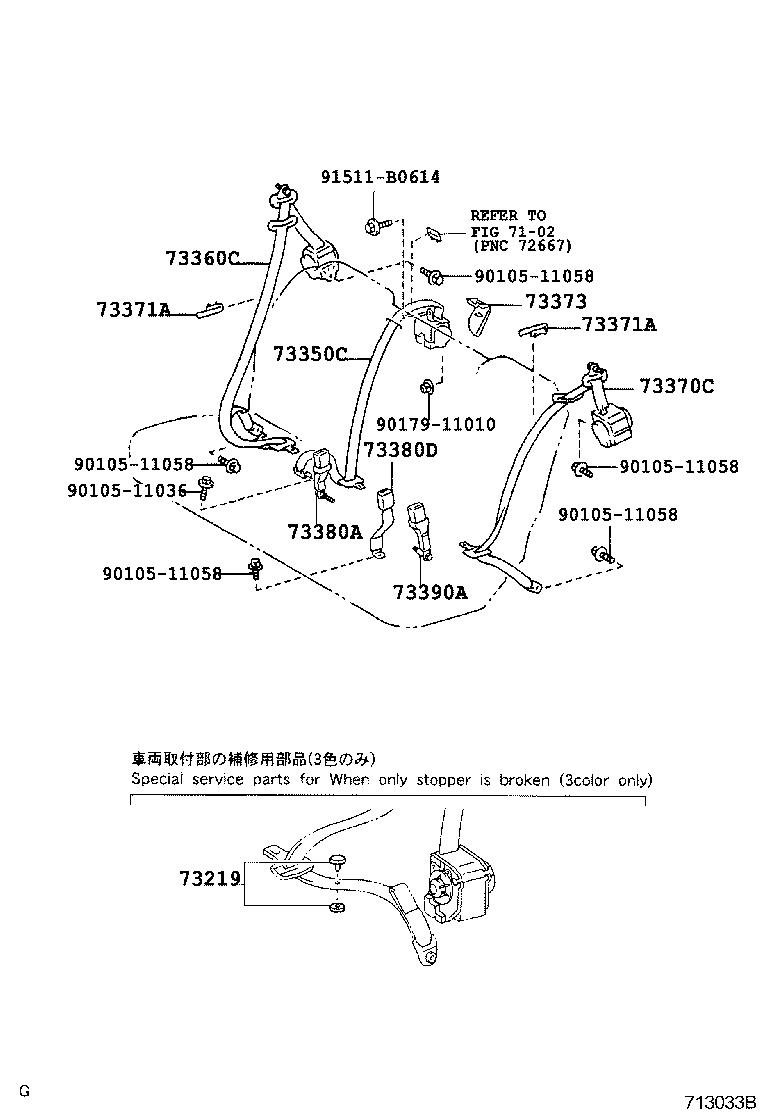

ILLUST NO. 2 OF 3(0308- )

Click highlighted areas on diagram

ﾘﾔ NO.1 ｼ-ﾄ

diagram 7102 73219 73350C 73360C 73370C 73371A 73371A 73373 73380A 73380D 73390A 9010511036 9010511058 9010511058 9010511058 9010511058 9010511058 9017911010 91511B0614
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33010

ACU2#,MCU2#

ﾌﾞﾗｯｸ

 1
73219-33030

ACU2#,MCU2#

ﾍﾞｰｼﾞｭ

 1
73219-33020

ACU2#,MCU2#

ｸﾞﾚｰ

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-48010B0

ACU2#,MCU2#

GRAY,TRIM14

 1
73350-48010C0

ACU2#,MCU2#

BLACK,TRIM15

 1
73350-48020B2

ACU2#,MCU2#

GRAY,TRIM1#

 1
73350-48020C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-48030C1

ACU2#,MCU2#

BLACK,TRIM15

 1
73360-48050B0

ACU2#,MCU2#

GRAY,TRIM1#

 1
73360-48030B0

ACU2#,MCU2#

GRAY,TRIM14

 1
73360-48050C1

ACU2#,MCU2#

BLACK,TRIM2#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-48030C1

ACU2#,MCU2#

BLACK,TRIM15

 1
73370-48050B0

ACU2#,MCU2#

GRAY,TRIM1#

 1
73370-48030B0

ACU2#,MCU2#

GRAY,TRIM14

 1
73370-48050C1

ACU2#,MCU2#

BLACK,TRIM2#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020B3

ACU2#,MCU2#

SHADOW GRAY,TRIM15

 2
73371-44020C0

ACU2#,MCU2#

BLACK,TRIM2#

 2
73371-44020B2

ACU2#,MCU2#

DK.CHARCOAL,TRIM14

 2
73371-44020P0

ACU2#,MCU2#

GRAY,TRIM1#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020B3

ACU2#,MCU2#

SHADOW GRAY,TRIM15

 2
73371-44020C0

ACU2#,MCU2#

BLACK,TRIM2#

 2
73371-44020B2

ACU2#,MCU2#

DK.CHARCOAL,TRIM14

 2
73371-44020P0

ACU2#,MCU2#

GRAY,TRIM1#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73373-33020B4

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 1
73373-33020C0

ACU2#,MCU2#

BLACK,TRIM15

 1
73373-48011

ACU2#,MCU2#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-48030B1

ACU2#,MCU2#

GRAY,TRIM1#

 1
73380-48010C0

ACU2#,MCU2#

BLACK,TRIM15

 1
73380-48030C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
73380-48010B3

ACU2#,MCU2#

MD.CHARCOAL,TRIM14

 1
73380D - BELT ASSY, REAR SEAT, INNER
73380-48020C0

ACU2#,MCU2#

BLACK,TRIM15

 1
73380-48040B1

ACU2#,MCU2#

NEW GRAY,TRIM1#

 1
73380-48020B0

ACU2#,MCU2#

GRAY,TRIM14

 1
73380-48040C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
73390A - BELT ASSY, REAR SEAT, INNER
73480-48020C0

ACU2#,MCU2#

BLACK,TRIM15

 1
73480-48030C0

ACU2#,MCU2#

BLACK,TRIM2#

 1
73480-48020B0

ACU2#,MCU2#

GRAY,TRIM14

 1
73480-48030B1

ACU2#,MCU2#

GRAY,TRIM1#

 1
Common parts
90105-11036
90105-11058
90179-11010
91511-B0614
Linked diagrams
7102
