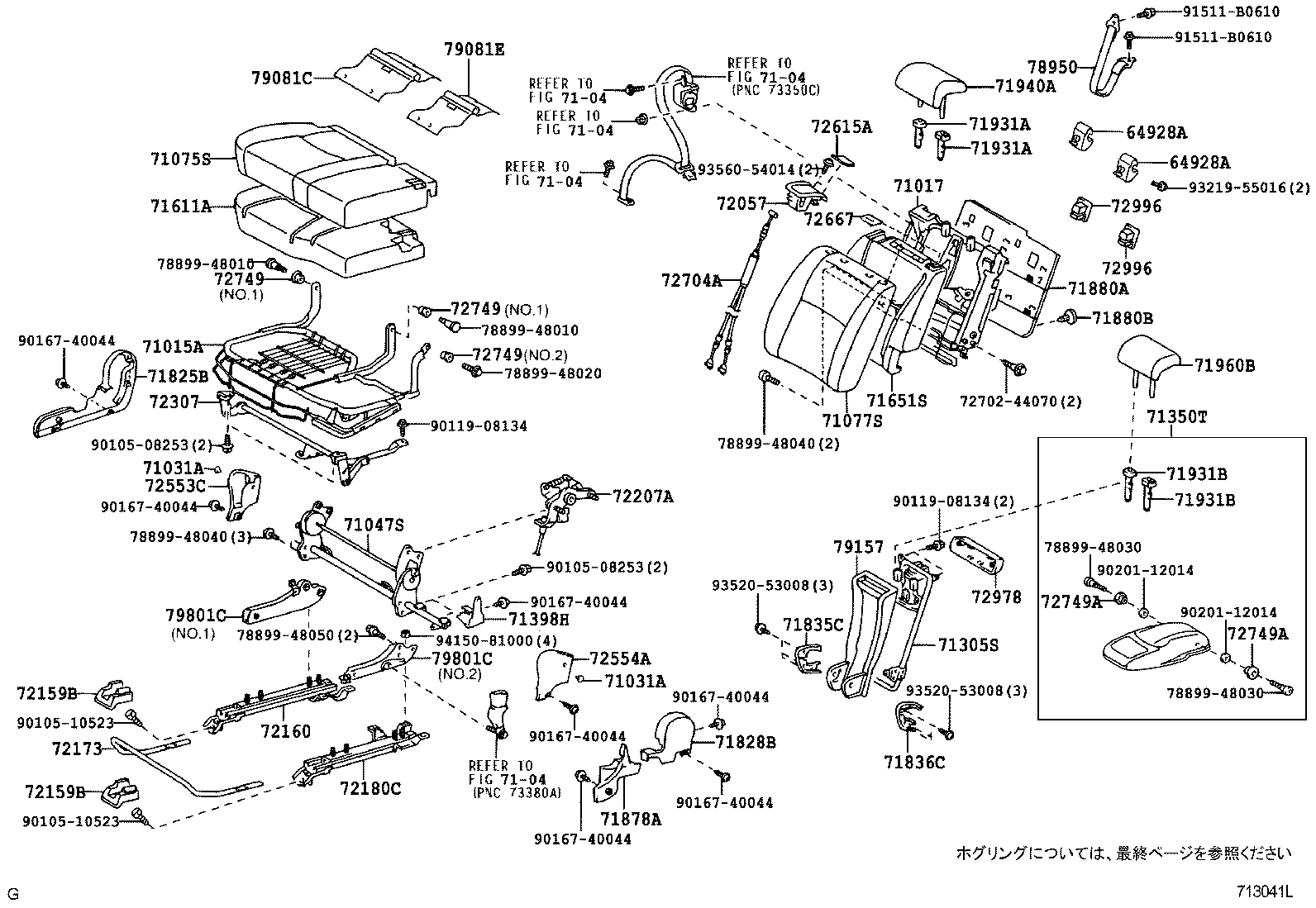

MCU25W-BWAGK (2003)
Toyota Kluger L/V
(0308- )05S
ﾘﾔ ｼ-ﾄ-ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-48010B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
4 | ||
| 64928-48010B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
4 | ||
| 64928-48010B2 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
4 | ||
| 64928-48010C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
4 | ||
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-48010B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
4 | ||
| 64928-48010B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
4 | ||
| 64928-48010B2 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
4 | ||
| 64928-48010C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
4 | ||
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 71015-48040 |
ACU2#,MCU2# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-48060 |
ACU2#,MCU2# |
1 | ||
| 71017-48100 |
ACU2#,MCU2#..05S |
1 | ||
| 71031A - CLIP, CENTER SEAT CUSHION | ||||
| 90467-05159C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
2 | ||
| 90467-05159B2 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
2 | ||
| 71031A - CLIP, CENTER SEAT CUSHION | ||||
| 90467-05159C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
2 | ||
| 90467-05159B2 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
2 | ||
| 71047S - FRAME SUB-ASSY, REAR SEAT BACK, LOWER RH | ||||
| 71047-48010 |
ACU2#,MCU2# |
1 | ||
| 71047-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-48250B2 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ,GRAY,TRIM1# |
1 | ||
| 71075-48140B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71075-48120B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71075-48130B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71075-48250C3 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71075-48240C3 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71075-48240B4 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-48290C2 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71077-48130B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71077-48120B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71077-48140B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71077-48300C1 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71077-48300B1 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ,GRAY,TRIM1# |
1 | ||
| 71077-48290B3 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71077-48420B1 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71077-48420C0 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71077-48410B1 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71077-48410C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 71350T - BACK ASSY, CENTER SEAT | ||||
| 71350-48060B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71350-48070B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ,GRAY,TRIM1# |
1 | ||
| 71350-48070C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71350-48060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71398H - COVER, CENTER SEAT HINGE, UPPER LH | ||||
| 71398-48010B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71398-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-48040 |
ACU2#,MCU2# |
1 | ||
| 71611-48210 |
ACU2#,MCU2#..05S |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-48030 |
ACU2#,MCU2# |
1 | ||
| 71651-48150 |
ACU2#,MCU2#..05S |
1 | ||
| 71825B - MOULDING, REAR SEAT CUSHION, RH | ||||
| 71825-48030C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71825-48010B6 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71825-48030B1 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71825-48010B5 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71828B - MOULDING, REAR SEAT CUSHION, REAR RH | ||||
| 71828-48030B1 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71828-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71828-48030C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71828-48020B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71835C - MOULDING, REAR SEAT BACK, RH | ||||
| 71835-48010B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71835-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71836C - MOULDING, REAR SEAT BACK, LH | ||||
| 71836-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71836-48010B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71878-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71878-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71878-48010B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-48050B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71880-48050B3 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71880-48060B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ & ｸﾙﾏｲｽ ｼﾕｳﾉｳ ｿｳﾁ) & ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71880-48140C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71880-48140B0 |
ACU2#,MCU2#..05S LT.GRAY,TRIM1# |
1 | ||
| 71880-48060B3 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ & ｸﾙﾏｲｽ ｼﾕｳﾉｳ ｿｳﾁ) & ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-06016C0 |
ACU2#,MCU2# BLACK,TRIM14,15 |
7 | ||
| 90467-07049C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
8 | ||
| 90467-07049P6 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
8 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B3 |
ACU2#,MCU2# ﾛｯｸ付,MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71956-47010B3 |
ACU2#,MCU2# ﾛｯｸ無,MD.CHARCOAL,TRIM14 |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71970-47010B2 |
ACU2#,MCU2# ﾛｯｸ付,DK.GRAY,TRIM15 |
2 | ||
| 71956-47010B2 |
ACU2#,MCU2# ﾛｯｸ無,DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B3 |
ACU2#,MCU2# ﾛｯｸ付,MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71956-47010B3 |
ACU2#,MCU2# ﾛｯｸ無,MD.CHARCOAL,TRIM14 |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71970-47010B2 |
ACU2#,MCU2# ﾛｯｸ付,DK.GRAY,TRIM15 |
2 | ||
| 71956-47010B2 |
ACU2#,MCU2# ﾛｯｸ無,DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71956-48010B1 |
ACU2#,MCU2# ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71955-48010C0 |
ACU2#,MCU2# ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71956-48010C0 |
ACU2#,MCU2# ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71955-48010B1 |
ACU2#,MCU2# ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71956-48010B1 |
ACU2#,MCU2# ﾛｯｸ無,GRAY,TRIM1# |
1 | ||
| 71955-48010C0 |
ACU2#,MCU2# ﾛｯｸ付,BLACK,TRIM2# |
1 | ||
| 71956-48010C0 |
ACU2#,MCU2# ﾛｯｸ無,BLACK,TRIM2# |
1 | ||
| 71955-48010B1 |
ACU2#,MCU2# ﾛｯｸ付,GRAY,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48210C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 71940-48220B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ,GRAY,TRIM1# |
2 | ||
| 71940-48220C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
2 | ||
| 71940-48210B0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-48160C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71960-48150B2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ,GRAY,TRIM1# |
1 | ||
| 71960-48100B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71960-48150C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71960-48120B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71960-48110B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71960-48160B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH | ||||
| 72057-48020B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 72057-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 72057-48030B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72057-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
4 | ||
| 72152-48020C0 |
ACU2#,MCU2# BLACK,TRIM2#,右側ｼｰﾄ |
2 | ||
| 72152-48030C0 |
ACU2#,MCU2#..05S BLACK,TRIM2#,左側ｼｰﾄ |
2 | ||
| 72152-48030B0 |
ACU2#,MCU2#..05S NEW GRAY,TRIM1#,左側ｼｰﾄ |
2 | ||
| 72152-48020B0 |
ACU2#,MCU2# NEW GRAY,TRIM1#,右側ｼｰﾄ |
2 | ||
| 72159-48010B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
4 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
4 | ||
| 72152-48020C0 |
ACU2#,MCU2# BLACK,TRIM2#,右側ｼｰﾄ |
2 | ||
| 72152-48030C0 |
ACU2#,MCU2#..05S BLACK,TRIM2#,左側ｼｰﾄ |
2 | ||
| 72152-48030B0 |
ACU2#,MCU2#..05S NEW GRAY,TRIM1#,左側ｼｰﾄ |
2 | ||
| 72152-48020B0 |
ACU2#,MCU2# NEW GRAY,TRIM1#,右側ｼｰﾄ |
2 | ||
| 72159-48010B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
4 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-48010 |
ACU2#,MCU2#..05S |
2 | ||
| 72173-48030 |
ACU2#,MCU2#..05S |
2 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72180-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 72207A - PLATE, SEAT TRACK STOP RH | ||||
| 72207-48010 |
ACU2#,MCU2# |
1 | ||
| 72307 - LINK SUB-ASSY, RECLINING CONTROL, RH | ||||
| 72307-48020 |
ACU2#,MCU2# |
1 | ||
| 72553C - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-48060B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72553-48060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72553-48050B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72553-48050B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72554A - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-48050B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72554-48060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72554-48060B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72554-48050B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-48010B6 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72615-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72615-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72615-48010B5 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72667 - BEZEL, REAR SEAT BACK LOCK, UPPER | ||||
| 72667-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72667-48010B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-48010 |
ACU2#,MCU2#..05S |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 72749-48010 |
ACU2#,MCU2# NO.1 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 72749-48010 |
ACU2#,MCU2# NO.1 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 72749-48010 |
ACU2#,MCU2# NO.1 |
4 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48030 |
ACU2#,MCU2# |
2 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-48030 |
ACU2#,MCU2# |
2 | ||
| 72978 - COVER, NO.2 CENTER SEAT BACK | ||||
| 72978-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72978-48020B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-48030B1 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 72996-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-48030B1 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 72996-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-48020 |
ACU2#,MCU2# |
1 | ||
| 78950-48030 |
ACU2#,MCU2# |
1 | ||
| 79081C - COVER, REAR SEAT, NO.1 | ||||
| 79081-48010 |
ACU2#,MCU2#..05S |
1 | ||
| 79081E - COVER, REAR SEAT, NO.3 | ||||
| 79081-48030 |
ACU2#,MCU2#..05S |
1 | ||
| 79157 - COVER, NO.1 SEAT BACK | ||||
| 79157-48010B1 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 79157-48010C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 79801C - FRAME, FOLD SEAT CUSHION, NO.2 | ||||
| 79801-48010 |
ACU2#,MCU2#..05S NO.1 |
1 | ||
| 79801-48020 |
ACU2#,MCU2#..05S NO.2 |
1 | ||
| 79801C - FRAME, FOLD SEAT CUSHION, NO.2 | ||||
| 79801-48010 |
ACU2#,MCU2#..05S NO.1 |
1 | ||
| 79801-48020 |
ACU2#,MCU2#..05S NO.2 |
1 | ||
| Common parts | ||||
| 72702-44070 | ||||
| 78899-48010 | ||||
| 78899-48020 | ||||
| 78899-48030 | ||||
| 78899-48040 | ||||
| 78899-48050 | ||||
| 90105-08253 | ||||
| 90105-10523 | ||||
| 90119-08134 | ||||
| 90167-40044 | ||||
| 90201-12014 | ||||
| 91511-B0610 | ||||
| 93219-55016 | ||||
| 93520-53008 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||

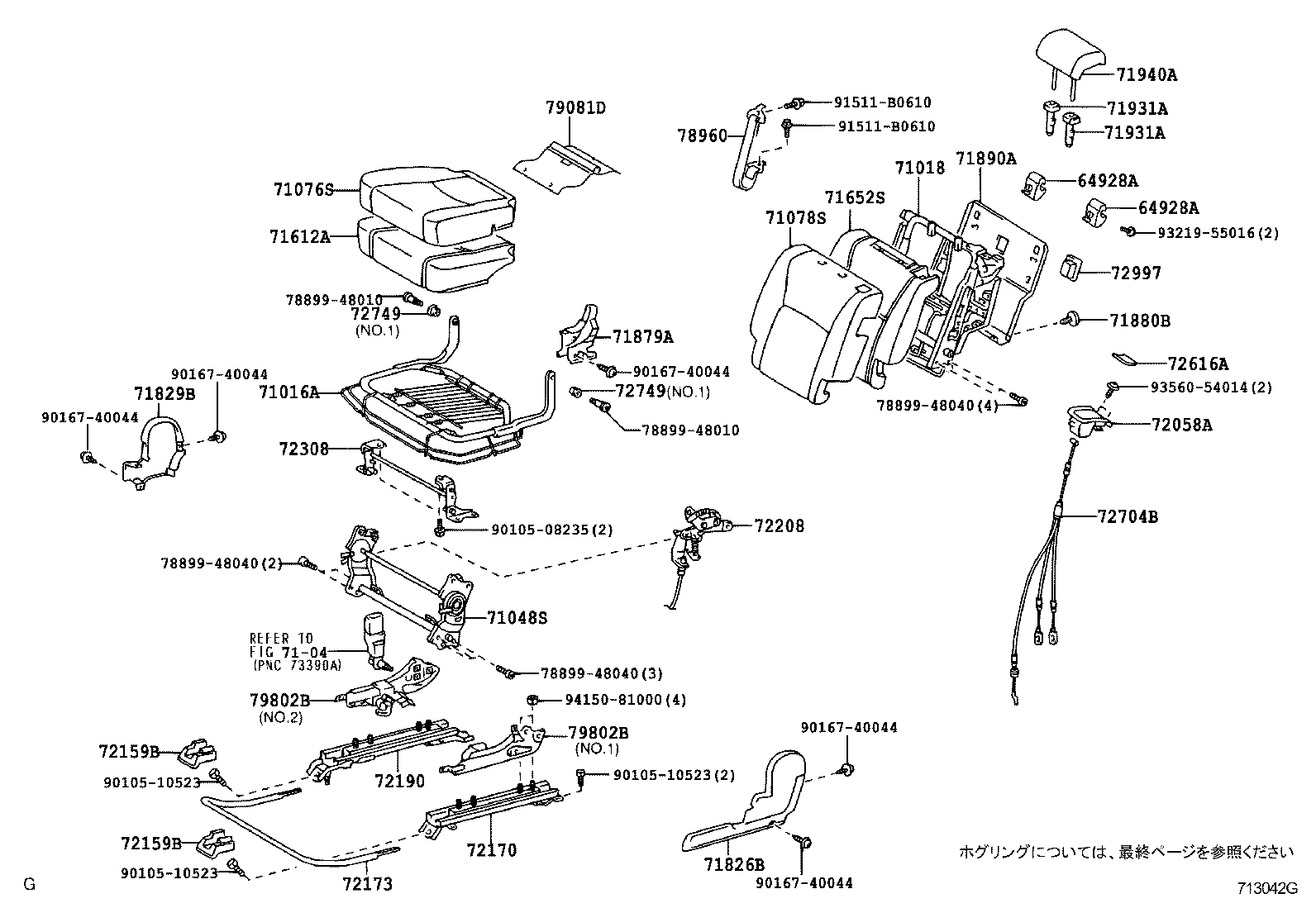

(0308- )05S
ﾘﾔ ｼ-ﾄ-ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-48010B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
4 | ||
| 64928-48010B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
4 | ||
| 64928-48010B2 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
4 | ||
| 64928-48010C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
4 | ||
| 64928A - HOLDER, TONNEAU COVER HOOK | ||||
| 64928-48010B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
4 | ||
| 64928-48010B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
4 | ||
| 64928-48010B2 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
4 | ||
| 64928-48010C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
4 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-48010 |
ACU2#,MCU2#..05S |
1 | ||
| 71016-48030 |
ACU2#,MCU2# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-48070 |
ACU2#,MCU2#..05S |
1 | ||
| 71018-48060 |
ACU2#,MCU2# |
1 | ||
| 71048S - FRAME SUB-ASSY, REAR SEAT BACK, LOWER LH | ||||
| 71048-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 71048-48010 |
ACU2#,MCU2# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-48090B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71076-48100B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71076-48080B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71076-48210B1 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ,GRAY,TRIM1# |
1 | ||
| 71076-48200C3 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71076-48200B3 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71076-48210C2 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-48120B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71078-48260B1 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ,GRAY,TRIM1# |
1 | ||
| 71078-48130B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71078-48140B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71078-48250C2 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71078-48250B3 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71078-48260C1 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
1 | ||
| 71078-48360B1 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71078-48360C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71078-48370B1 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71078-48370C0 |
ACU2#,MCU2#..05S ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-48030 |
ACU2#,MCU2# |
1 | ||
| 71612-48160 |
ACU2#,MCU2#..05S |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-48110 |
ACU2#,MCU2#..05S |
1 | ||
| 71826B - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-48010B4 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71826-48030C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71826-48030B1 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 71826-48010B5 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71829B - MOULDING, REAR SEAT CUSHION, REAR LH | ||||
| 71829-48010B4 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71829-48010B5 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71828-48060B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71828-48060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71879-48010B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-06016C0 |
ACU2#,MCU2# BLACK,TRIM14,15 |
7 | ||
| 90467-07049C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
8 | ||
| 90467-07049P6 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
8 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-48060B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ & ｸﾙﾏｲｽ ｼﾕｳﾉｳ ｿｳﾁ) & ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71890-48060B3 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ(ｼﾞﾖｼﾕｾｷ ﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ & ｸﾙﾏｲｽ ｼﾕｳﾉｳ ｿｳﾁ) & ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71890-48050B3 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71890-48050B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71890-48130B0 |
ACU2#,MCU2#..05S LT.GRAY,TRIM1# |
1 | ||
| 71890-48130C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B3 |
ACU2#,MCU2# ﾛｯｸ付,MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71956-47010B3 |
ACU2#,MCU2# ﾛｯｸ無,MD.CHARCOAL,TRIM14 |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71970-47010B2 |
ACU2#,MCU2# ﾛｯｸ付,DK.GRAY,TRIM15 |
2 | ||
| 71956-47010B2 |
ACU2#,MCU2# ﾛｯｸ無,DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B3 |
ACU2#,MCU2# ﾛｯｸ付,MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71956-47010B3 |
ACU2#,MCU2# ﾛｯｸ無,MD.CHARCOAL,TRIM14 |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71970-47010B2 |
ACU2#,MCU2# ﾛｯｸ付,DK.GRAY,TRIM15 |
2 | ||
| 71956-47010B2 |
ACU2#,MCU2# ﾛｯｸ無,DK.GRAY,TRIM15 |
2 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-48210C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 71940-48220B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ,GRAY,TRIM1# |
2 | ||
| 71940-48220C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ,BLACK,TRIM2# |
2 | ||
| 71940-48210B0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 72058A - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH | ||||
| 72057-48020B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 72058-48010B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72057-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 72058-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
4 | ||
| 72152-48020C0 |
ACU2#,MCU2# BLACK,TRIM2#,右側ｼｰﾄ |
2 | ||
| 72152-48030C0 |
ACU2#,MCU2#..05S BLACK,TRIM2#,左側ｼｰﾄ |
2 | ||
| 72152-48030B0 |
ACU2#,MCU2#..05S NEW GRAY,TRIM1#,左側ｼｰﾄ |
2 | ||
| 72152-48020B0 |
ACU2#,MCU2# NEW GRAY,TRIM1#,右側ｼｰﾄ |
2 | ||
| 72159-48010B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
4 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
4 | ||
| 72152-48020C0 |
ACU2#,MCU2# BLACK,TRIM2#,右側ｼｰﾄ |
2 | ||
| 72152-48030C0 |
ACU2#,MCU2#..05S BLACK,TRIM2#,左側ｼｰﾄ |
2 | ||
| 72152-48030B0 |
ACU2#,MCU2#..05S NEW GRAY,TRIM1#,左側ｼｰﾄ |
2 | ||
| 72152-48020B0 |
ACU2#,MCU2# NEW GRAY,TRIM1#,右側ｼｰﾄ |
2 | ||
| 72159-48010B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
4 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 72173 - HANDLE, REAR SEAT TRACK ADJUSTING | ||||
| 72173-48010 |
ACU2#,MCU2#..05S |
2 | ||
| 72173-48030 |
ACU2#,MCU2#..05S |
2 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72190-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 72208 - PLATE, SEAT TRACK STOP, LH | ||||
| 72208-48010 |
ACU2#,MCU2# |
1 | ||
| 72308 - LINK SUB-ASSY, RECLINING CONTROL, LH | ||||
| 72307-48030 |
ACU2#,MCU2# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-48010B6 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72615-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72615-48010B5 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72615-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-48010 |
ACU2#,MCU2#..05S |
1 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 72749-48010 |
ACU2#,MCU2# NO.1 |
4 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-48020 |
ACU2#,MCU2# NO.2 |
1 | ||
| 72749-48010 |
ACU2#,MCU2# NO.1 |
4 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-48030B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72996-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78950-48020 |
ACU2#,MCU2# |
1 | ||
| 78950-48030 |
ACU2#,MCU2# |
1 | ||
| 79081D - COVER, REAR SEAT, NO.2 | ||||
| 79081-48020 |
ACU2#,MCU2#..05S |
1 | ||
| 79802B - FRAME, FOLD SEAT CUSHION, NO.1 | ||||
| 79802-48020 |
ACU2#,MCU2#..05S NO.2 |
1 | ||
| 79802-48020 |
ACU2#,MCU2#..05S NO.2 |
1 | ||
| 79802-48030 |
ACU2#,MCU2# NO.1 |
1 | ||
| 79802-48030 |
ACU2#,MCU2# NO.1 |
1 | ||
| 79802B - FRAME, FOLD SEAT CUSHION, NO.1 | ||||
| 79802-48020 |
ACU2#,MCU2#..05S NO.2 |
1 | ||
| 79802-48020 |
ACU2#,MCU2#..05S NO.2 |
1 | ||
| 79802-48030 |
ACU2#,MCU2# NO.1 |
1 | ||
| 79802-48030 |
ACU2#,MCU2# NO.1 |
1 | ||
| Common parts | ||||
| 78899-48010 | ||||
| 78899-48040 | ||||
| 90105-08235 | ||||
| 90105-10523 | ||||
| 90167-40044 | ||||
| 91511-B0610 | ||||
| 93219-55016 | ||||
| 93560-54014 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
