MCU25W-BWAGK (2003)
Toyota Kluger L/V
(0308- )
ｳﾝﾃﾝｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ & ﾊﾟﾜ-ｼ-ﾄ)

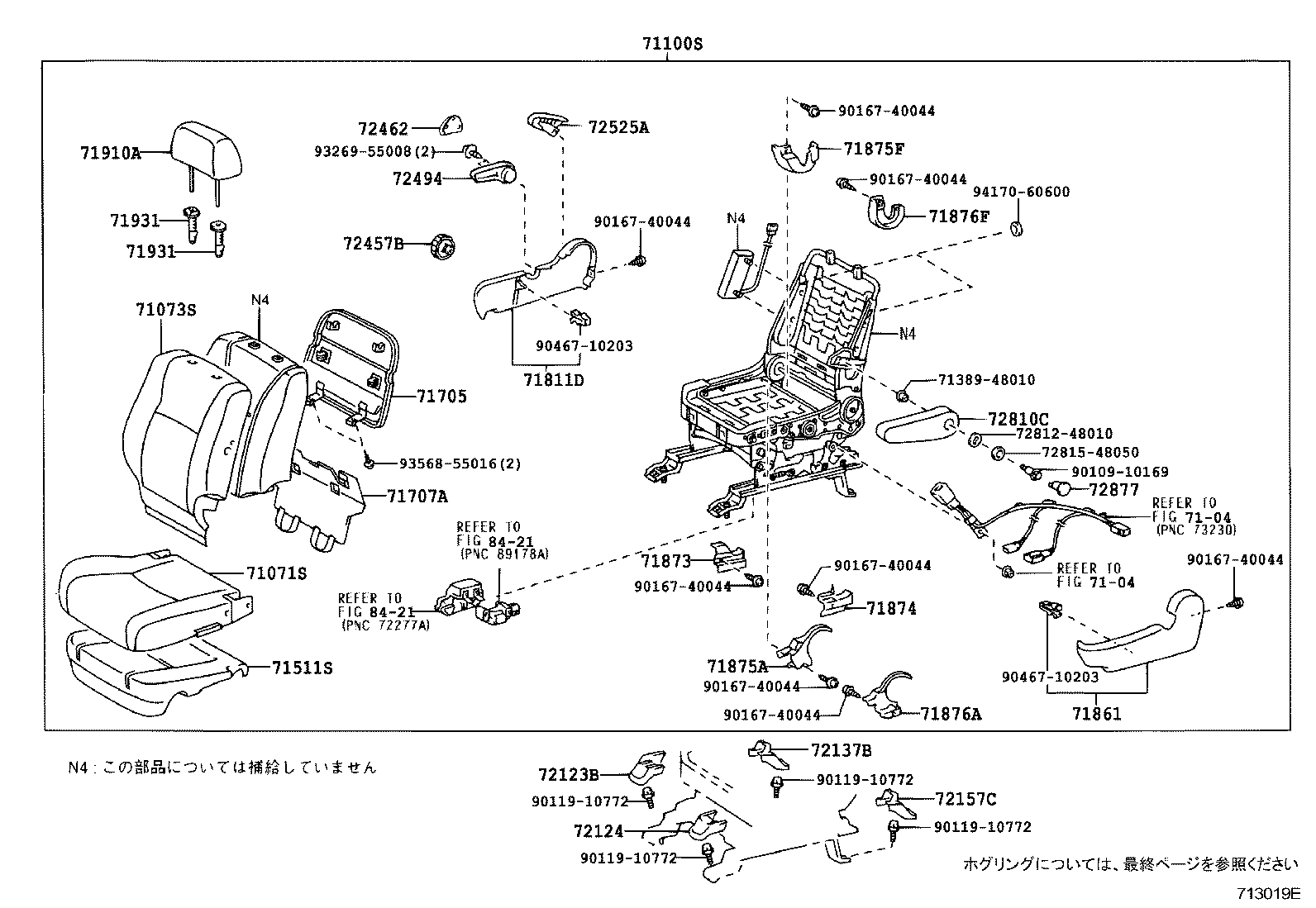

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48170B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-48160B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-48150B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71071-48320C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71071-48320B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71071-48300B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71071-48300C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48270B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71073-48230B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71073-48220B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71073-48240B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),GRAY SHADOW,TRIM1# |
1 | ||
| 71073-48450B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71073-48470B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71073-48210B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71073-48280B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71073-48470C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71073-48500B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71073-48450C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-48490B0 |
ACU2#,MCU2# ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71073-48490C0 |
ACU2#,MCU2# ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-48500C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||

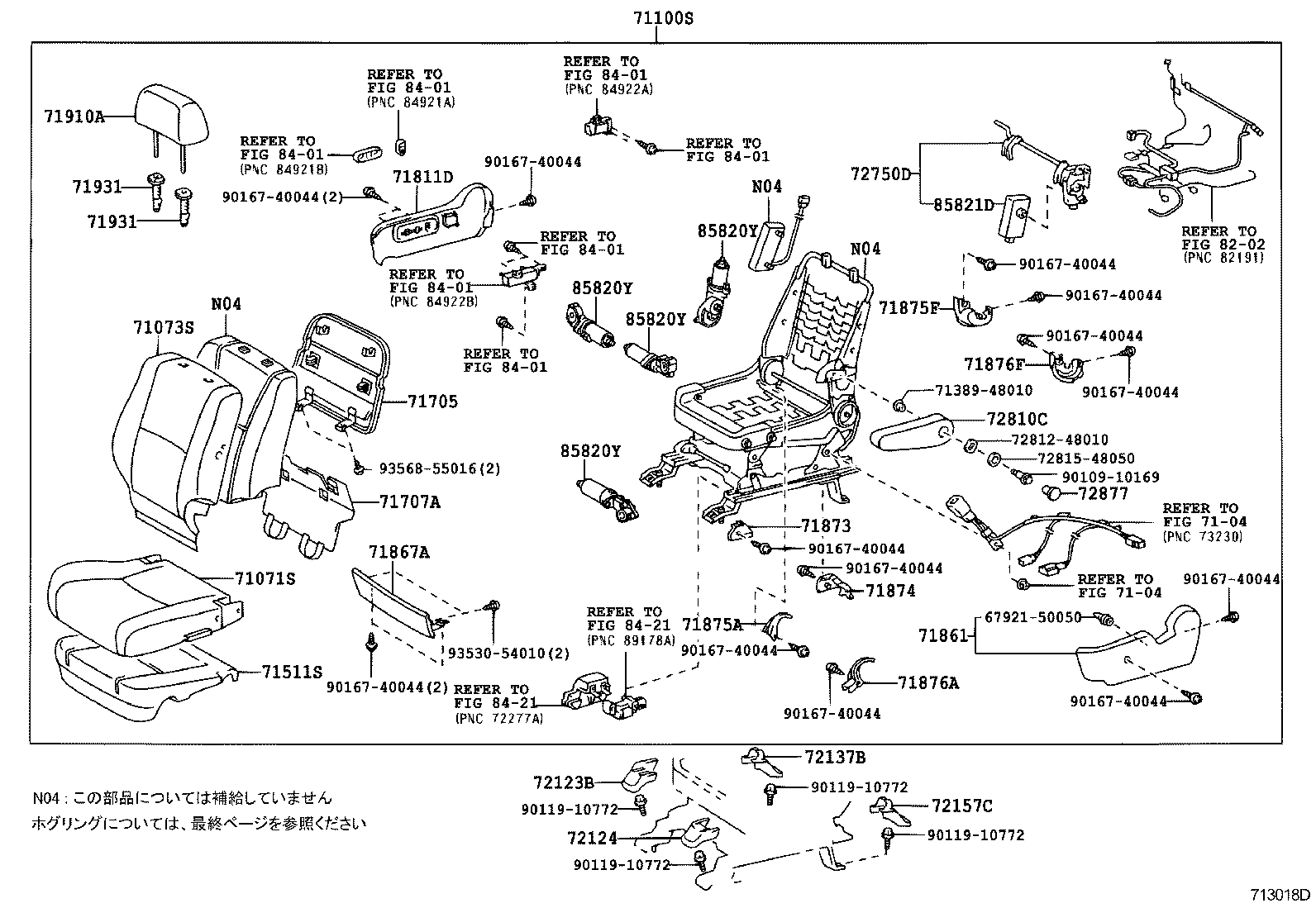

| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-48800C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71100-48B00C3 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71100-48800B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71100-48B00B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48090 |
ACU2#,MCU2# ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ & ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71511-48030 |
ACU2#,MCU2# |
1 | ||
| 71511-48220 |
ACU2#,MCU2# ｱﾘ(ﾌｧﾌﾞﾘｯｸｼｰﾄ & ﾏﾆｭｱﾙ ｼ-ﾄ) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71705-48080C3 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71705-48090B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71705-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71705-48090C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71705-48050B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71705-48080B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-48010B0 |
ACU2#,MCU2# LT.GRAY,TRIM1# |
1 | ||
| 71707-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SHADOW GRAY,TRIM1# |
1 | ||
| 71811-48090B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71811-48100C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71811-48060B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-48040B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-48090C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71811-48100B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),NEW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-48020B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71861-48030B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71861-48040B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71861-48040C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71867-48020B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71867-48030B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71867-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48010 |
ACU2#,MCU2# |
1 | ||
| 71873-48020 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48010 |
ACU2#,MCU2# |
1 | ||
| 71874-48020 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-58030C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71875-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71875-58030B5 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71875-48030B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71875-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875-58050 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71875-58060 |
ACU2#,MCU2# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-48050B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71876-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71876-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875-48050C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58060 |
ACU2#,MCU2# |
1 | ||
| 71876-58060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71876-58050 |
ACU2#,MCU2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48150B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48160B2 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S),GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48270B0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71910-48270C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 71910-48270C0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71910-48270B0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 71910-48150B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
2 | ||
| 71910-48170B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-48020B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 72123-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-48050C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72123-48050B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72123-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72123-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72124-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72127-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72123-48040B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72127-48020B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72123-48040C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 72128-48030B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72137-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72137-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72128-48030C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72137-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72137-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72157-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72138-48020C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72157-48020B1 |
ACU2#,MCU2# G ﾊﾟｯｹｰｼﾞ *G,MD.CHARCOAL,TRIM1# |
1 | ||
| 72157-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72157-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72138-48020B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30230 |
ACU2#,MCU2# |
1 | ||
| 72750-48020 |
ACU2#,MCU2# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-48100B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72810-48080B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 72810-48170C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72810-48090B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 72810-48170B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72810-48180B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,NEW GRAY,TRIM1# |
1 | ||
| 72810-48180C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72848-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72848-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72848-48020B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72848-48020B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ACU2#,MCU2# ｽﾗｲﾄﾞ |
1 | ||
| 85801-58020 |
ACU2#,MCU2# ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 85801-58030 |
ACU2#,MCU2# ﾘﾌﾀ |
1 | ||
| 85801-58040 |
ACU2#,MCU2# ﾁﾙﾄ |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ACU2#,MCU2# ｽﾗｲﾄﾞ |
1 | ||
| 85801-58020 |
ACU2#,MCU2# ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 85801-58030 |
ACU2#,MCU2# ﾘﾌﾀ |
1 | ||
| 85801-58040 |
ACU2#,MCU2# ﾁﾙﾄ |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ACU2#,MCU2# ｽﾗｲﾄﾞ |
1 | ||
| 85801-58020 |
ACU2#,MCU2# ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 85801-58030 |
ACU2#,MCU2# ﾘﾌﾀ |
1 | ||
| 85801-58040 |
ACU2#,MCU2# ﾁﾙﾄ |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ACU2#,MCU2# ｽﾗｲﾄﾞ |
1 | ||
| 85801-58020 |
ACU2#,MCU2# ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 85801-58030 |
ACU2#,MCU2# ﾘﾌﾀ |
1 | ||
| 85801-58040 |
ACU2#,MCU2# ﾁﾙﾄ |
1 | ||
| 85821D - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 67921-50050 | ||||
| 71389-48010 | ||||
| 72812-48010 | ||||
| 72815-48050 | ||||
| 90109-10169 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 93530-54010 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

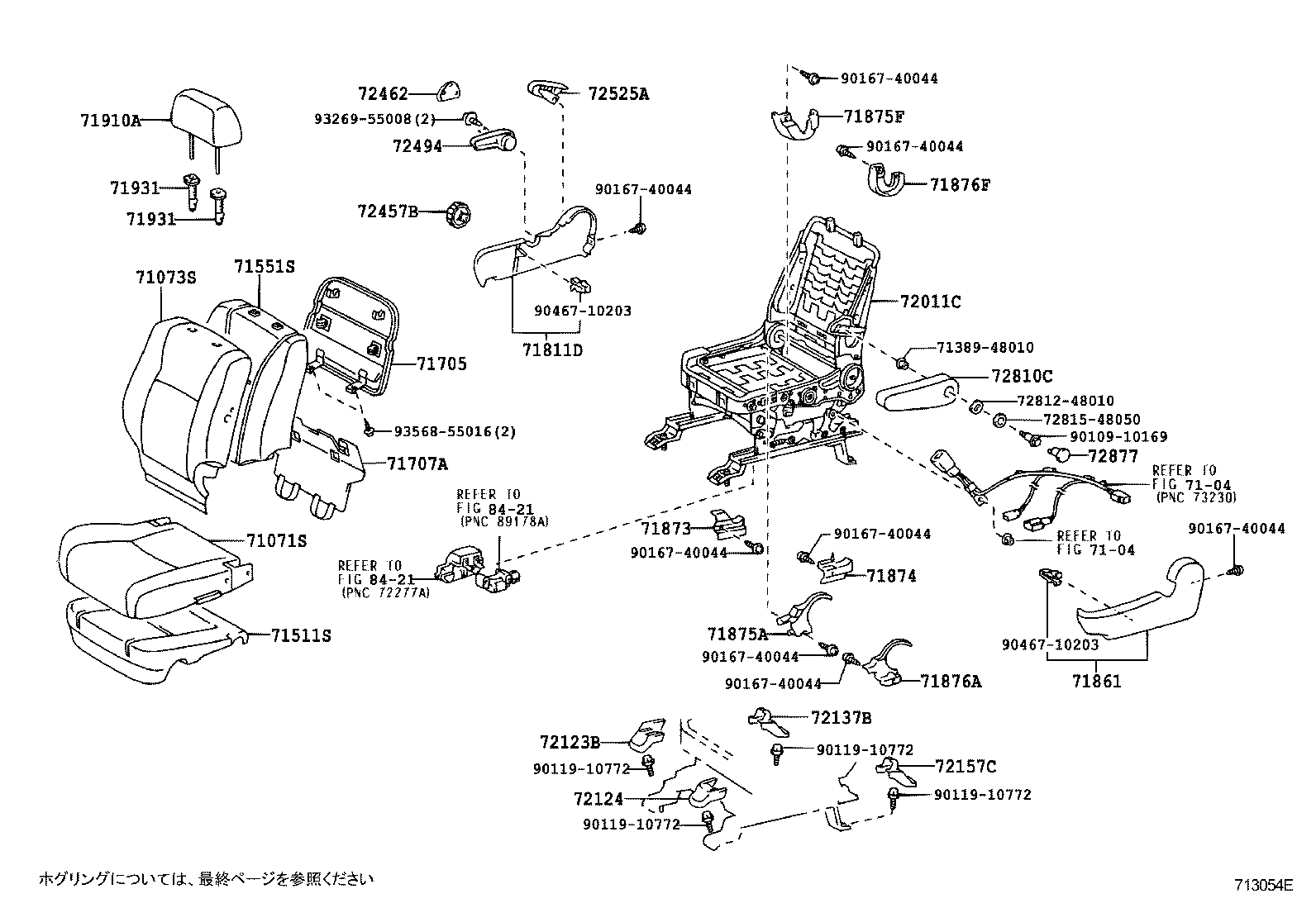

(0308- )
ｳﾝﾃﾝｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48170B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-48160B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-48150B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71071-48320C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71071-48320B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71071-48300B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71071-48300C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48270B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71073-48230B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71073-48220B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71073-48240B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),GRAY SHADOW,TRIM1# |
1 | ||
| 71073-48450B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71073-48470B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71073-48210B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71073-48280B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71073-48470C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71073-48500B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71073-48450C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-48490B0 |
ACU2#,MCU2# ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71073-48490C0 |
ACU2#,MCU2# ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-48500C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-48800C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71100-48B00C3 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71100-48800B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71100-48B00B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48090 |
ACU2#,MCU2# ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ & ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71511-48030 |
ACU2#,MCU2# |
1 | ||
| 71511-48220 |
ACU2#,MCU2# ｱﾘ(ﾌｧﾌﾞﾘｯｸｼｰﾄ & ﾏﾆｭｱﾙ ｼ-ﾄ) |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71705-48080C3 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71705-48090B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71705-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71705-48090C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71705-48050B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71705-48080B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-48010B0 |
ACU2#,MCU2# LT.GRAY,TRIM1# |
1 | ||
| 71707-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SHADOW GRAY,TRIM1# |
1 | ||
| 71811-48090B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71811-48100C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71811-48060B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-48040B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-48090C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71811-48100B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),NEW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-48020B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71861-48030B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71861-48040B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71861-48040C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48010 |
ACU2#,MCU2# |
1 | ||
| 71873-48020 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48010 |
ACU2#,MCU2# |
1 | ||
| 71874-48020 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-58030C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71875-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71875-58030B5 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71875-48030B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71875-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875-58050 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71875-58060 |
ACU2#,MCU2# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-48050B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71876-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71876-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875-48050C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58060 |
ACU2#,MCU2# |
1 | ||
| 71876-58060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71876-58050 |
ACU2#,MCU2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48150B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48160B2 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S),GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48270B0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71910-48270C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 71910-48270C0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71910-48270B0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 71910-48150B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
2 | ||
| 71910-48170B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-48020B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 72123-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-48050C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72123-48050B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72123-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72123-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72124-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72127-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72123-48040B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72127-48020B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72123-48040C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 72128-48030B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72137-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72137-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72128-48030C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72137-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72137-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72157-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72138-48020C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72157-48020B1 |
ACU2#,MCU2# G ﾊﾟｯｹｰｼﾞ *G,MD.CHARCOAL,TRIM1# |
1 | ||
| 72157-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72157-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72138-48020B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-22020P1 |
ACU2#,MCU2# DK.GRAY,TRIM1# |
2 | ||
| 72457-58010B4 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 72457-58010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72462-60010B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-60020B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72494-52010B4 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 72494-60020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72494-52010C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-32020B2 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-58030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72525-58030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-48100B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72810-48080B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 72810-48170C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72810-48090B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 72810-48170B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72810-48180B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,NEW GRAY,TRIM1# |
1 | ||
| 72810-48180C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72848-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72848-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72848-48020B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72848-48020B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| Common parts | ||||
| 71389-48010 | ||||
| 72812-48010 | ||||
| 72815-48050 | ||||
| 90109-10169 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90467-10203 | ||||
| 93269-55008 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(0308- )
ｼﾞﾖｼﾕｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00B7 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 55560-95J00C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 55560-95J00B8 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48170B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71072-48160B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71072-48350B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71072-48350C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71072-48340C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71072-48150B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71072-48340B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48210B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71074-48220B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71074-48250B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ﾅｼ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71074-48490B0 |
ACU2#,MCU2# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71074-48240B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),GRAY SHADOW,TRIM1# |
1 | ||
| 71074-48500B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71074-48490C0 |
ACU2#,MCU2# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71074-48510C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71074-48260B1 |
ACU2#,MCU2# ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),CHARCOAL,TRIM1# |
1 | ||
| 71074-48500C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71074-48520B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71074-48520C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71074-48230B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71074-48510B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-48B60B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71200-48B60C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71200-48C10C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71200-48C10B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-48100 |
ACU2#,MCU2# |
1 | ||
| 71512-48040 |
ACU2#,MCU2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71706-48040B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71705-48050B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71706-48030C3 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71706-48040C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71705-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71706-48030B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71707B - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71707-48010B0 |
ACU2#,MCU2# LT.GRAY,TRIM1# |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-26010B4 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 71750-26010C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71750-26010B5 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-48030B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71812-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SHADOW GRAY,TRIM15 |
1 | ||
| 71812-48020B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸ),MD.CHARCOAL,TRIM14 |
1 | ||
| 71812-48070B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71812-48030B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71812-48070C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-48020B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 71862-48020B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 71862-48050B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71862-48050C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-48040 |
ACU2#,MCU2# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48040 |
ACU2#,MCU2# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71875-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58060 |
ACU2#,MCU2# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71876-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71876-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58060 |
ACU2#,MCU2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48150B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48160B2 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S),GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48270B0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71910-48270C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 71910-48270C0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71910-48270B0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 71910-48150B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
2 | ||
| 71910-48170B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72124-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72124-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72128-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72128-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72128-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72158-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72137-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72137-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72158-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72157-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72138-48010B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72157-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72526-58040B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-48080B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 72820-48180C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 72820-48100B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 72820-48170C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72820-48180B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,NEW GRAY,TRIM1# |
1 | ||
| 72820-48090B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72820-48170B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72848-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72848-48020B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72848-48020B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72848-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 71389-48010 | ||||
| 72812-48010 | ||||
| 72815-48050 | ||||
| 82666-58030 | ||||
| 90109-10169 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90168-40093 | ||||
| 90467-10203 | ||||
| 93568-55016 | ||||
| 94170-60600 | ||||
| Linked diagrams | ||||

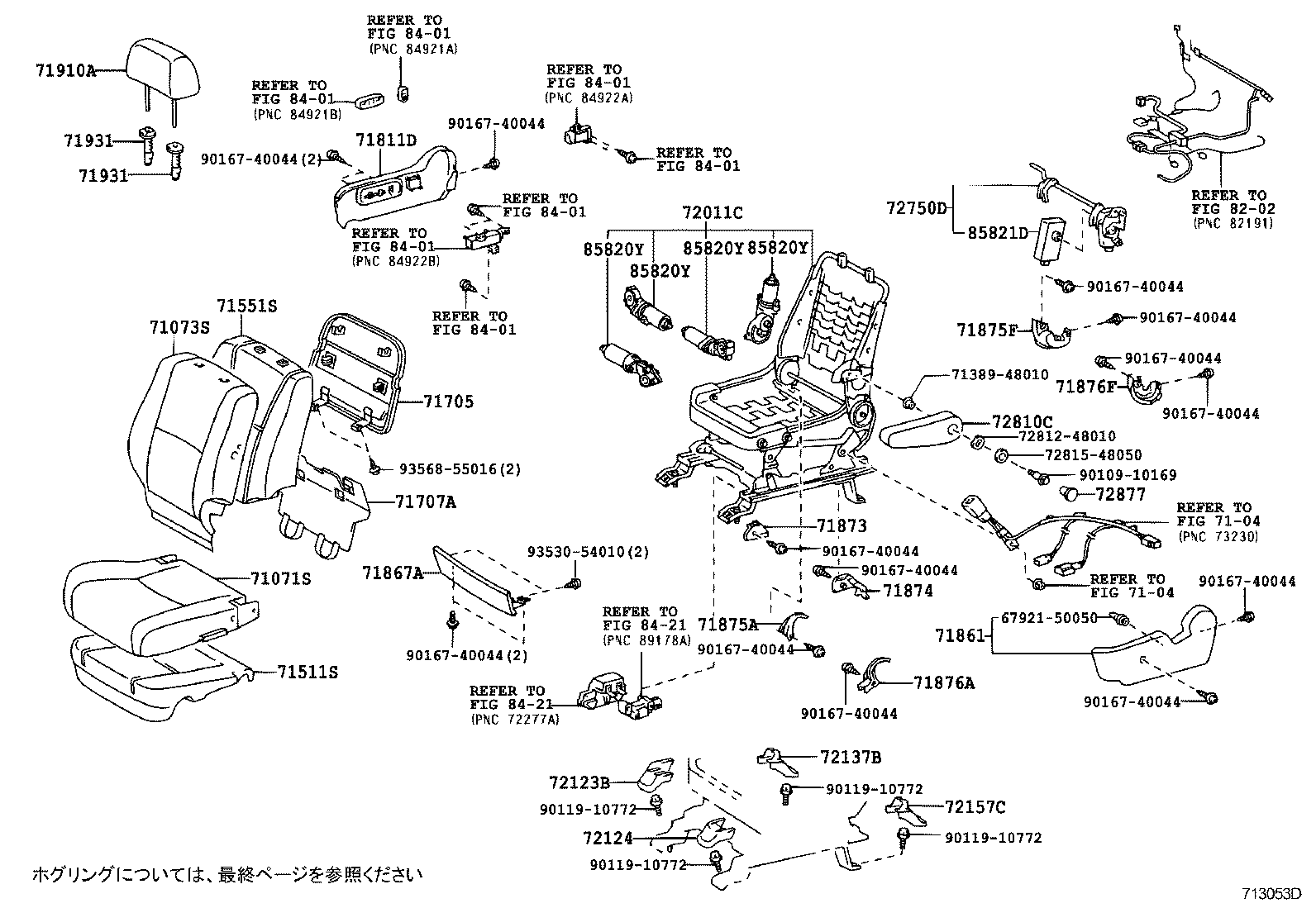

| 7104 | ||||
(0308- )
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48170B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-48160B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-48150B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71071-48320C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71071-48320B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71071-48300B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71071-48300C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48270B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71073-48230B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71073-48220B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71073-48240B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),GRAY SHADOW,TRIM1# |
1 | ||
| 71073-48450B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71073-48470B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71073-48210B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71073-48280B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71073-48470C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71073-48500B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71073-48450C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-48490B0 |
ACU2#,MCU2# ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71073-48490C0 |
ACU2#,MCU2# ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-48500C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48090 |
ACU2#,MCU2# ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ & ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71511-48030 |
ACU2#,MCU2# |
1 | ||
| 71511-48220 |
ACU2#,MCU2# ｱﾘ(ﾌｧﾌﾞﾘｯｸｼｰﾄ & ﾏﾆｭｱﾙ ｼ-ﾄ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48030 |
ACU2#,MCU2# |
1 | ||
| 71551-48080 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71551-48120 |
ACU2#,MCU2# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71705-48080C3 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71705-48090B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71705-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71705-48090C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71705-48050B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71705-48080B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-48010B0 |
ACU2#,MCU2# LT.GRAY,TRIM1# |
1 | ||
| 71707-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SHADOW GRAY,TRIM1# |
1 | ||
| 71811-48090B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71811-48100C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71811-48060B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-48040B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-48090C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71811-48100B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),NEW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-48020B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71861-48030B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71861-48040B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71861-48040C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71867-48020B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71867-48030B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71867-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48010 |
ACU2#,MCU2# |
1 | ||
| 71873-48020 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48010 |
ACU2#,MCU2# |
1 | ||
| 71874-48020 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-58030C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71875-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71875-58030B5 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71875-48030B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71875-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875-58050 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71875-58060 |
ACU2#,MCU2# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-48050B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71876-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71876-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875-48050C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58060 |
ACU2#,MCU2# |
1 | ||
| 71876-58060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71876-58050 |
ACU2#,MCU2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48150B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48160B2 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S),GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48270B0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71910-48270C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 71910-48270C0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71910-48270B0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 71910-48150B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
2 | ||
| 71910-48170B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-48010 |
ACU2#,MCU2# |
1 | ||
| 71110-48060 |
ACU2#,MCU2# |
1 | ||
| 71110-48070 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-48020B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 72123-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-48050C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72123-48050B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72123-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72123-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72124-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72127-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72123-48040B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72127-48020B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72123-48040C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 72128-48030B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72137-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72137-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72128-48030C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72137-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72137-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72157-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72138-48020C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72157-48020B1 |
ACU2#,MCU2# G ﾊﾟｯｹｰｼﾞ *G,MD.CHARCOAL,TRIM1# |
1 | ||
| 72157-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72157-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72138-48020B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-30230 |
ACU2#,MCU2# |
1 | ||
| 72750-48020 |
ACU2#,MCU2# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-48100B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72810-48080B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 72810-48170C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72810-48090B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 72810-48170B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72810-48180B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,NEW GRAY,TRIM1# |
1 | ||
| 72810-48180C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72848-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72848-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72848-48020B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72848-48020B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ACU2#,MCU2# ｽﾗｲﾄﾞ |
1 | ||
| 85801-58020 |
ACU2#,MCU2# ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 85801-58030 |
ACU2#,MCU2# ﾘﾌﾀ |
1 | ||
| 85801-58040 |
ACU2#,MCU2# ﾁﾙﾄ |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ACU2#,MCU2# ｽﾗｲﾄﾞ |
1 | ||
| 85801-58020 |
ACU2#,MCU2# ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 85801-58030 |
ACU2#,MCU2# ﾘﾌﾀ |
1 | ||
| 85801-58040 |
ACU2#,MCU2# ﾁﾙﾄ |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ACU2#,MCU2# ｽﾗｲﾄﾞ |
1 | ||
| 85801-58020 |
ACU2#,MCU2# ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 85801-58030 |
ACU2#,MCU2# ﾘﾌﾀ |
1 | ||
| 85801-58040 |
ACU2#,MCU2# ﾁﾙﾄ |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ACU2#,MCU2# ｽﾗｲﾄﾞ |
1 | ||
| 85801-58020 |
ACU2#,MCU2# ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 85801-58030 |
ACU2#,MCU2# ﾘﾌﾀ |
1 | ||
| 85801-58040 |
ACU2#,MCU2# ﾁﾙﾄ |
1 | ||
| 85821D - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 67921-50050 | ||||
| 71389-48010 | ||||
| 72812-48010 | ||||
| 72815-48050 | ||||
| 90109-10169 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 93530-54010 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(0308- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-48170B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-48160B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71071-48150B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71071-48320C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71071-48320B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71071-48300B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71071-48300C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-48270B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71073-48230B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71073-48220B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71073-48240B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),GRAY SHADOW,TRIM1# |
1 | ||
| 71073-48450B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71073-48470B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71073-48210B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71073-48280B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71073-48470C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71073-48500B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71073-48450C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-48490B0 |
ACU2#,MCU2# ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71073-48490C0 |
ACU2#,MCU2# ｱﾘ(SRS ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-48500C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-48090 |
ACU2#,MCU2# ｱﾘ(ﾎﾝｶﾞﾜｼ-ﾄ & ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71511-48030 |
ACU2#,MCU2# |
1 | ||
| 71511-48220 |
ACU2#,MCU2# ｱﾘ(ﾌｧﾌﾞﾘｯｸｼｰﾄ & ﾏﾆｭｱﾙ ｼ-ﾄ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-48030 |
ACU2#,MCU2# |
1 | ||
| 71551-48080 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71551-48120 |
ACU2#,MCU2# |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71705-48080C3 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71705-48090B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71705-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71705-48090C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71705-48050B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71705-48080B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71707A - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-48010B0 |
ACU2#,MCU2# LT.GRAY,TRIM1# |
1 | ||
| 71707-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-48010B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SHADOW GRAY,TRIM1# |
1 | ||
| 71811-48090B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71811-48100C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71811-48060B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-48040B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71811-48090C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71811-48100B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),NEW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71861-48020B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71861-48030B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71861-48040B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71861-48040C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-48010 |
ACU2#,MCU2# |
1 | ||
| 71873-48020 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48010 |
ACU2#,MCU2# |
1 | ||
| 71874-48020 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-48010B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 71875-58030C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71875-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71875-58030B5 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71875-48030B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 71875-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-58060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875-58050 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71875-58060 |
ACU2#,MCU2# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-48050B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 71876-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71876-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875-48050C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-58060 |
ACU2#,MCU2# |
1 | ||
| 71876-58060C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71876-58050 |
ACU2#,MCU2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48150B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48160B2 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S),GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48270B0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71910-48270C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 71910-48270C0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71910-48270B0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 71910-48150B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
2 | ||
| 71910-48170B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-48010 |
ACU2#,MCU2# |
1 | ||
| 71110-48060 |
ACU2#,MCU2# |
1 | ||
| 71110-48070 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-48020B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 72123-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 72123-48050C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72123-48050B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72123-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72123-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72124-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72127-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72123-48040B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72127-48020B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72123-48040C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 72128-48030B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72137-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72137-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72128-48030C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72137-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72137-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72157C - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72157-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72138-48020C0 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),BLACK,TRIM2# |
1 | ||
| 72157-48020B1 |
ACU2#,MCU2# G ﾊﾟｯｹｰｼﾞ *G,MD.CHARCOAL,TRIM1# |
1 | ||
| 72157-48030B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72157-48030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72138-48020B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),GRAY,TRIM1# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-22020P1 |
ACU2#,MCU2# DK.GRAY,TRIM1# |
2 | ||
| 72457-58010B4 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 72457-58010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72462-60010B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-60020B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72494-52010B4 |
ACU2#,MCU2#..05S GRAY,TRIM1# |
1 | ||
| 72494-60020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72494-52010C0 |
ACU2#,MCU2#..05S BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-32020B2 |
ACU2#,MCU2# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-58030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72525-58030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72810C - ARMREST ASSY, FRONT SEAT, CENTER | ||||
| 72810-48100B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72810-48080B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 72810-48170C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72810-48090B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 72810-48170B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72810-48180B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,NEW GRAY,TRIM1# |
1 | ||
| 72810-48180C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72848-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72848-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72848-48020B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72848-48020B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| Common parts | ||||
| 71389-48010 | ||||
| 72812-48010 | ||||
| 72815-48050 | ||||
| 90109-10169 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90467-10203 | ||||
| 93269-55008 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(0308- )
ｼﾞﾖｼﾕｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00B7 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 55560-95J00C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 55560-95J00B8 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-48170B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71072-48160B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71072-48350B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71072-48350C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71072-48340C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71072-48150B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71072-48340B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-48210B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71074-48220B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71074-48250B1 |
ACU2#,MCU2# ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) & ﾅｼ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),CHARCOAL,TRIM1# |
1 | ||
| 71074-48490B0 |
ACU2#,MCU2# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71074-48240B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),GRAY SHADOW,TRIM1# |
1 | ||
| 71074-48500B0 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71074-48490C0 |
ACU2#,MCU2# ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71074-48510C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71074-48260B1 |
ACU2#,MCU2# ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),CHARCOAL,TRIM1# |
1 | ||
| 71074-48500C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71074-48520B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71074-48520C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71074-48230B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71074-48510B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ),GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-48100 |
ACU2#,MCU2# |
1 | ||
| 71512-48040 |
ACU2#,MCU2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-48030 |
ACU2#,MCU2# |
1 | ||
| 71552-48080 |
ACU2#,MCU2# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 71706-48040B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
1 | ||
| 71705-48050B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM14 |
1 | ||
| 71706-48030C3 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71706-48040C2 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 71705-48050B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71706-48030B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71707B - COVER SUB-ASSY, FRONT SEAT BACK BOARD | ||||
| 71707-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71707-48010B0 |
ACU2#,MCU2# LT.GRAY,TRIM1# |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-26010B4 |
ACU2#,MCU2# MD.CHARCOAL,TRIM1# |
1 | ||
| 71750-26010C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71750-26010B5 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-48030B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM15 |
1 | ||
| 71812-48020B1 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SHADOW GRAY,TRIM15 |
1 | ||
| 71812-48020B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104 & ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸ),MD.CHARCOAL,TRIM14 |
1 | ||
| 71812-48070B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71812-48030B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM14 |
1 | ||
| 71812-48070C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-48020B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 71862-48020B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 71862-48050B0 |
ACU2#,MCU2# NEW GRAY,TRIM1# |
1 | ||
| 71862-48050C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-48040 |
ACU2#,MCU2# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-48040 |
ACU2#,MCU2# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71875-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-58060 |
ACU2#,MCU2# |
1 | ||
| 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH | ||||
| 71876-52030B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 71876-52030C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-58060 |
ACU2#,MCU2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-48150B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ & ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
1 | ||
| 71910-48130B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48160B2 |
ACU2#,MCU2# S ﾊﾟﾂｹ-ｼﾞ *(S),GRAY SHADOW,TRIM1# |
2 | ||
| 71910-48270B0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71910-48270C0 |
ACU2#,MCU2# BLACK,TRIM2# |
2 | ||
| 71910-48270C0 |
ACU2#,MCU2# ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71910-48270B0 |
ACU2#,MCU2# GRAY,TRIM1# |
2 | ||
| 71910-48150B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280B0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,GRAY,TRIM1# |
2 | ||
| 71910-48170B2 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
2 | ||
| 71910-48280C0 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),GRAY,TRIM1# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71930-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM14 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),GRAY,TRIM1# |
2 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,MD.CHARCOAL,TRIM14 |
1 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM2# |
2 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM2# |
2 | ||
| 71931-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM15 |
2 | ||
| 71931-42020B7 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,GRAY,TRIM1# |
1 | ||
| 71930-42020C0 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM2# |
1 | ||
| 71930-42020B4 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,DK.GRAY,TRIM15 |
1 | ||
| 71931-42020B1 |
ACU2#,MCU2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM14 |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-48110 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ & ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ) |
1 | ||
| 71120-48080 |
ACU2#,MCU2# |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72124-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72124-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72128-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72128-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72128-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72158-48020B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72137-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72137-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72158-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-48010C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72157-48010B1 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72138-48010B1 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72157-48010B2 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72526-58040B5 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-48080B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE B-*104,CHARCOAL,TRIM1# |
1 | ||
| 72820-48180C1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLACK,TRIM2# |
1 | ||
| 72820-48100B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE A-*104,CHARCOAL,TRIM1# |
1 | ||
| 72820-48170C2 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| 72820-48180B1 |
ACU2#,MCU2# ﾎﾝｶﾞﾜ ｼ-ﾄ,NEW GRAY,TRIM1# |
1 | ||
| 72820-48090B0 |
ACU2#,MCU2# ｼ-ﾄ = TYPE C-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 72820-48170B2 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72848-48020B1 |
ACU2#,MCU2# MD.CHARCOAL,TRIM14 |
1 | ||
| 72848-48020B0 |
ACU2#,MCU2# SHADOW GRAY,TRIM15 |
1 | ||
| 72848-48020B3 |
ACU2#,MCU2# GRAY,TRIM1# |
1 | ||
| 72848-48020C0 |
ACU2#,MCU2# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 71389-48010 | ||||
| 72812-48010 | ||||
| 72815-48050 | ||||
| 82666-58030 | ||||
| 90109-10169 | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90168-40093 | ||||
| 90467-10203 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
