MCU25W-BWAGK (2003)
Toyota Kluger L/V

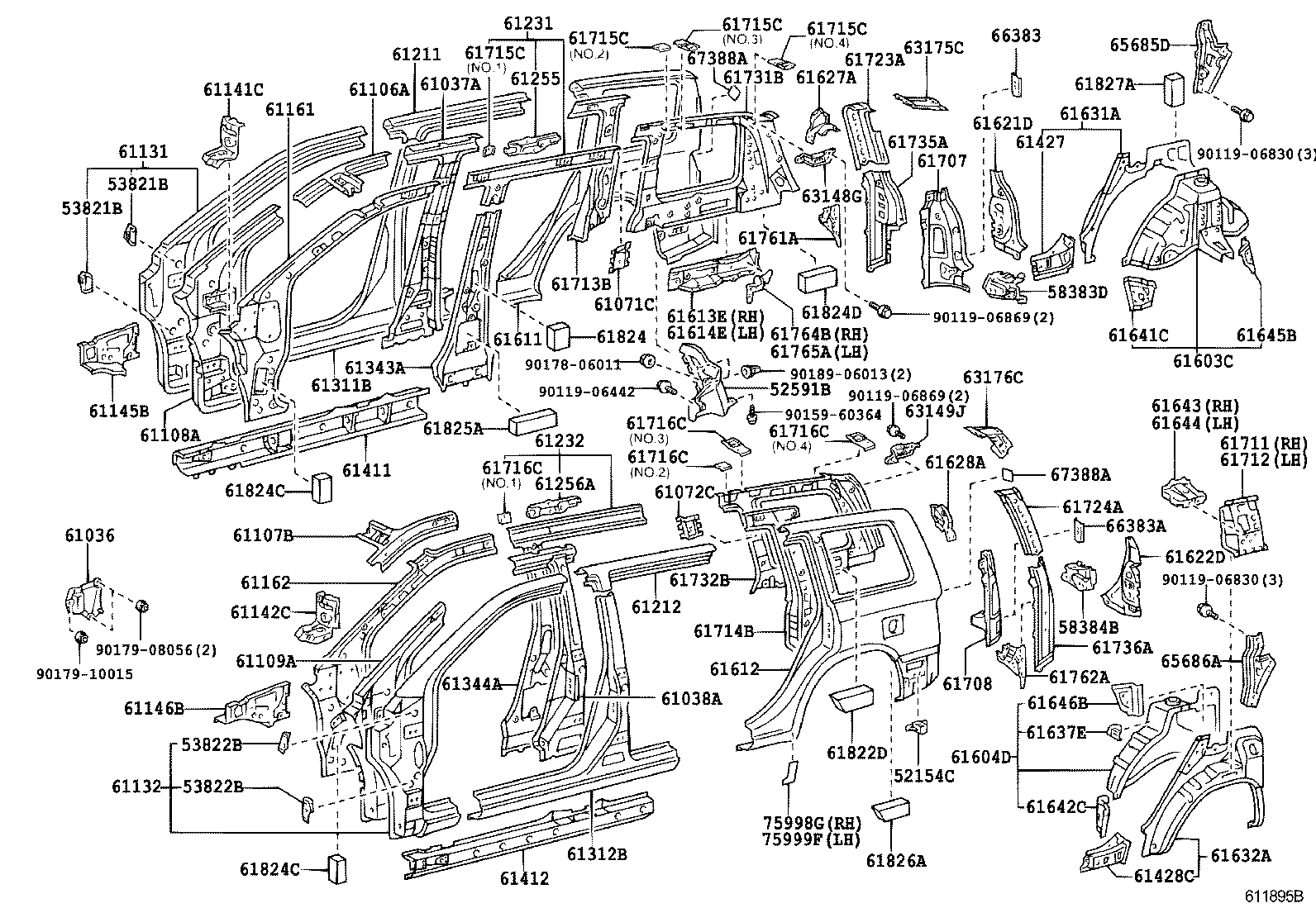

ILLUST NO. 1 OF 2(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52154C - SUPPORT, REAR BUMPER, NO.1 | ||||
| 52154-48010 |
ACU2#,MCU2# |
2 | ||
| 52154-48010 |
ACU2#,MCU2# |
2 | ||
| 52591B - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-48040 |
ACU2#,MCU2# |
1 | ||
| 52591-48070 |
ACU2#,MCU2# |
1 | ||
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-48010 |
ACU2#,MCU2# |
2 | ||
| 53821-48010 |
ACU2#,MCU2# |
2 | ||
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-48010 |
ACU2#,MCU2# |
2 | ||
| 53821-48010 |
ACU2#,MCU2# |
2 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-48010 |
ACU2#,MCU2# |
2 | ||
| 53822-48010 |
ACU2#,MCU2# |
2 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-48010 |
ACU2#,MCU2# |
2 | ||
| 53822-48010 |
ACU2#,MCU2# |
2 | ||
| 58383D - REINFORCEMENT, BODY LOWER BACK, NO.2 RH | ||||
| 58305-48020 |
ACU2#,MCU2# |
1 | ||
| 58384B - REINFORCEMENT, BODY LOWER BACK, NO.2 LH | ||||
| 58384-48010 |
ACU2#,MCU2# |
1 | ||
| 61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-48020 |
ACU2#,MCU2# |
1 | ||
| 61166-48020 |
ACU2#,MCU2# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-48040 |
ACU2#,MCU2# |
1 | ||
| 61037-48020 |
ACU2#,MCU2# |
1 | ||
| 61037-48060 |
ACU2#,MCU2# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-48020 |
ACU2#,MCU2# |
1 | ||
| 61038-48040 |
ACU2#,MCU2# |
1 | ||
| 61038-48060 |
ACU2#,MCU2# |
1 | ||
| 61071C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH | ||||
| 61071-48020 |
ACU2#,MCU2# |
1 | ||
| 61071-48020 |
ACU2#,MCU2# |
1 | ||
| 61072C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH | ||||
| 61072-48020 |
ACU2#,MCU2# |
1 | ||
| 61072-48020 |
ACU2#,MCU2# |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-48040 |
ACU2#,MCU2# |
1 | ||
| 61106-48020 |
ACU2#,MCU2# |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-48020 |
ACU2#,MCU2# |
1 | ||
| 61107-48040 |
ACU2#,MCU2# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-48030 |
ACU2#,MCU2# |
1 | ||
| 61108-48030 |
ACU2#,MCU2# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-48030 |
ACU2#,MCU2# |
1 | ||
| 61109-48030 |
ACU2#,MCU2# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-48020 |
ACU2#,MCU2# |
1 | ||
| 61131-48021 |
ACU2#,MCU2# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-48020 |
ACU2#,MCU2# |
1 | ||
| 61132-48021 |
ACU2#,MCU2# |
1 | ||
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-48020 |
ACU2#,MCU2# |
1 | ||
| 61141-48020 |
ACU2#,MCU2# |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-48020 |
ACU2#,MCU2# |
1 | ||
| 61142-48020 |
ACU2#,MCU2# |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-48010 |
ACU2#,MCU2# |
1 | ||
| 61145-48010 |
ACU2#,MCU2# |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-48010 |
ACU2#,MCU2# |
1 | ||
| 61146-48010 |
ACU2#,MCU2# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-48060 |
ACU2#,MCU2# |
1 | ||
| 61161-48040 |
ACU2#,MCU2# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-48040 |
ACU2#,MCU2# |
1 | ||
| 61162-48060 |
ACU2#,MCU2# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61213-48010 |
ACU2#,MCU2# |
1 | ||
| 61213-48010 |
ACU2#,MCU2# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61214-48010 |
ACU2#,MCU2# |
1 | ||
| 61214-48010 |
ACU2#,MCU2# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-48030 |
ACU2#,MCU2# |
1 | ||
| 61231-48040 |
ACU2#,MCU2# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-48030 |
ACU2#,MCU2# |
1 | ||
| 61232-48040 |
ACU2#,MCU2# |
1 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-48010 |
ACU2#,MCU2# |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-48010 |
ACU2#,MCU2# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-48020 |
ACU2#,MCU2# |
1 | ||
| 61311-48020 |
ACU2#,MCU2# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-48020 |
ACU2#,MCU2# |
1 | ||
| 61312-48020 |
ACU2#,MCU2# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-48040 |
ACU2#,MCU2# |
1 | ||
| 61343-48020 |
ACU2#,MCU2# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-48020 |
ACU2#,MCU2# |
1 | ||
| 61344-48040 |
ACU2#,MCU2# |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-48010 |
ACU2#,MCU2# |
1 | ||
| 61401-48010 |
ACU2#,MCU2# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-48010 |
ACU2#,MCU2# |
1 | ||
| 61402-48010 |
ACU2#,MCU2# |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-48040 |
ACU2#,MCU2# |
1 | ||
| 61427-48020 |
ACU2#,MCU2# |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-48020 |
ACU2#,MCU2# |
1 | ||
| 61428-48040 |
ACU2#,MCU2# |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-48904 |
ACU2#,MCU2# |
1 | ||
| 61603-48900 |
ACU2#,MCU2# |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-48900 |
ACU2#,MCU2# |
1 | ||
| 61604-48904 |
ACU2#,MCU2# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-48030 |
ACU2#,MCU2# |
1 | ||
| 61611-48030 |
ACU2#,MCU2# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-48030 |
ACU2#,MCU2# |
1 | ||
| 61612-48031 |
ACU2#,MCU2# |
1 | ||
| 61612-48030 |
ACU2#,MCU2# |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-48040 |
ACU2#,MCU2# |
1 | ||
| 61613-48020 |
ACU2#,MCU2# |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-48040 |
ACU2#,MCU2# |
1 | ||
| 61614-48020 |
ACU2#,MCU2# |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-48020 |
ACU2#,MCU2# |
1 | ||
| 61621-48020 |
ACU2#,MCU2# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-48020 |
ACU2#,MCU2# |
1 | ||
| 61622-48020 |
ACU2#,MCU2# |
1 | ||
| 61627A - EXTENSION, QUARTER PANEL, LOWER RH | ||||
| 61601-48010 |
ACU2#,MCU2# |
1 | ||
| 61601-48010 |
ACU2#,MCU2# |
1 | ||
| 61628A - EXTENSION, QUARTER PANEL, LOWER LH | ||||
| 61602-48010 |
ACU2#,MCU2# |
1 | ||
| 61602-48010 |
ACU2#,MCU2# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-48900 |
ACU2#,MCU2# |
1 | ||
| 61631-48902 |
ACU2#,MCU2# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-48900 |
ACU2#,MCU2# |
1 | ||
| 61632-48901 |
ACU2#,MCU2# |
1 | ||
| 61637E - BRACKET, QUARTER WHEEL HOUSE | ||||
| 61637-32020 |
ACU2#,MCU2# |
1 | ||
| 61637-32020 |
ACU2#,MCU2# |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-48010 |
ACU2#,MCU2# |
1 | ||
| 61641-48010 |
ACU2#,MCU2# |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-48010 |
ACU2#,MCU2# |
1 | ||
| 61642-48010 |
ACU2#,MCU2# |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-48010 |
ACU2#,MCU2# |
1 | ||
| 61643-48010 |
ACU2#,MCU2# |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61644-48010 |
ACU2#,MCU2# |
1 | ||
| 61644-48010 |
ACU2#,MCU2# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-48010 |
ACU2#,MCU2# |
1 | ||
| 61645-48020 |
ACU2#,MCU2# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-48010 |
ACU2#,MCU2# |
1 | ||
| 61646-48010 |
ACU2#,MCU2# |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61707-48010 |
ACU2#,MCU2# |
1 | ||
| 61733-48040 |
ACU2#,MCU2# |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61708-48010 |
ACU2#,MCU2# |
1 | ||
| 61734-48040 |
ACU2#,MCU2# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-48020 |
ACU2#,MCU2# |
1 | ||
| 61711-48020 |
ACU2#,MCU2# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-48020 |
ACU2#,MCU2# |
1 | ||
| 61712-48020 |
ACU2#,MCU2# |
1 | ||
| 61713B - REINFORCE, ROOF SIDE, OUTER RH | ||||
| 61713-48010 |
ACU2#,MCU2# |
1 | ||
| 61713-48011 |
ACU2#,MCU2# |
1 | ||
| 61714B - REINFORCE, ROOF SIDE, OUTER LH | ||||
| 61714-48010 |
ACU2#,MCU2# |
1 | ||
| 61714-48011 |
ACU2#,MCU2# |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 61715-48010 |
ACU2#,MCU2# |
3 | ||
| 61715-48010 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61716-48020 |
ACU2#,MCU2# NO.4 |
1 | ||
| 61715-48011 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61715-48030 |
ACU2#,MCU2# NO.3 |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 61715-48010 |
ACU2#,MCU2# |
3 | ||
| 61715-48010 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61716-48020 |
ACU2#,MCU2# NO.4 |
1 | ||
| 61715-48011 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61715-48030 |
ACU2#,MCU2# NO.3 |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 61715-48010 |
ACU2#,MCU2# |
3 | ||
| 61715-48010 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61716-48020 |
ACU2#,MCU2# NO.4 |
1 | ||
| 61715-48011 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61715-48030 |
ACU2#,MCU2# NO.3 |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 61715-48010 |
ACU2#,MCU2# |
3 | ||
| 61715-48010 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61716-48020 |
ACU2#,MCU2# NO.4 |
1 | ||
| 61715-48011 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61715-48030 |
ACU2#,MCU2# NO.3 |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 61715-48010 |
ACU2#,MCU2# |
3 | ||
| 61715-48011 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61716-48020 |
ACU2#,MCU2# NO.4 |
1 | ||
| 61715-48010 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61715-48030 |
ACU2#,MCU2# NO.3 |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 61715-48010 |
ACU2#,MCU2# |
3 | ||
| 61715-48011 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61716-48020 |
ACU2#,MCU2# NO.4 |
1 | ||
| 61715-48010 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61715-48030 |
ACU2#,MCU2# NO.3 |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 61715-48010 |
ACU2#,MCU2# |
3 | ||
| 61715-48011 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61716-48020 |
ACU2#,MCU2# NO.4 |
1 | ||
| 61715-48010 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61715-48030 |
ACU2#,MCU2# NO.3 |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 61715-48010 |
ACU2#,MCU2# |
3 | ||
| 61715-48011 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61716-48020 |
ACU2#,MCU2# NO.4 |
1 | ||
| 61715-48010 |
ACU2#,MCU2# NO.1 OR NO.2 |
1 | ||
| 61715-48030 |
ACU2#,MCU2# NO.3 |
1 | ||
| 61723A - REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 | ||||
| 61723-48040 |
ACU2#,MCU2# |
1 | ||
| 61723-48020 |
ACU2#,MCU2# |
1 | ||
| 61724A - REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 | ||||
| 61724-48040 |
ACU2#,MCU2# |
1 | ||
| 61724-48020 |
ACU2#,MCU2# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-48020 |
ACU2#,MCU2# |
1 | ||
| 61731-48040 |
ACU2#,MCU2# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-48020 |
ACU2#,MCU2# |
1 | ||
| 61732-48040 |
ACU2#,MCU2# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-48020 |
ACU2#,MCU2# |
1 | ||
| 61735-48021 |
ACU2#,MCU2# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-48021 |
ACU2#,MCU2# |
1 | ||
| 61736-48020 |
ACU2#,MCU2# |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-48010 |
ACU2#,MCU2# |
1 | ||
| 61762A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH | ||||
| 61762-48010 |
ACU2#,MCU2# |
1 | ||
| 61764B - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61764-48010 |
ACU2#,MCU2# |
1 | ||
| 61765A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61765-48010 |
ACU2#,MCU2# |
1 | ||
| 61822D - PLATE, NOISE CONTROL, LH | ||||
| 61822-48010 |
ACU2#,MCU2# |
1 | ||
| 61822-48010 |
ACU2#,MCU2# |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-30050 |
ACU2#,MCU2# |
2 | ||
| 61826-48010 |
ACU2#,MCU2# |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-17010 |
ACU2#,MCU2# |
2 | ||
| 61824-17010 |
ACU2#,MCU2# |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-17010 |
ACU2#,MCU2# |
2 | ||
| 61824-17010 |
ACU2#,MCU2# |
2 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-48010 |
ACU2#,MCU2# |
2 | ||
| 61824-48010 |
ACU2#,MCU2# |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-48010 |
ACU2#,MCU2# |
2 | ||
| 61825-48010 |
ACU2#,MCU2# |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-48020 |
ACU2#,MCU2# |
1 | ||
| 61826-48020 |
ACU2#,MCU2# |
1 | ||
| 61827A - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-48011 |
ACU2#,MCU2# |
1 | ||
| 61827-48010 |
ACU2#,MCU2# |
1 | ||
| 63148G - REINFORCEMENT, ROOF PANEL SIDE | ||||
| 63148-48030 |
ACU2#,MCU2# |
1 | ||
| 63149J - REINFORCEMENT, ROOF PANEL SIDE, LH | ||||
| 63149-48030 |
ACU2#,MCU2# |
1 | ||
| 63175C - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 61703-48010 |
ACU2#,MCU2# |
1 | ||
| 63175-48020 |
ACU2#,MCU2# |
1 | ||
| 63176C - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 61704-48010 |
ACU2#,MCU2# |
1 | ||
| 63176-48020 |
ACU2#,MCU2# |
1 | ||
| 65685D - BRACE, WHEEL HOUSE, RH | ||||
| 65685-48010 |
ACU2#,MCU2# |
1 | ||
| 65686A - BRACE, WHEEL HOUSE, LH | ||||
| 65686-48010 |
ACU2#,MCU2# |
1 | ||
| 66383 - BRACKET, ROPE HOOK BAR, NO.1 RH | ||||
| 66383-12010 |
ACU2#,MCU2# |
1 | ||
| 66383A - BRACKET, ROPE HOOK BAR, NO.1 LH | ||||
| 66383-12010 |
ACU2#,MCU2# |
1 | ||
| 67388A - PROTECTOR, BACK DOOR EDGE | ||||
| 67388-48010 |
ACU2#,MCU2# |
2 | ||
| 67388-48010 |
ACU2#,MCU2# |
2 | ||
| 67388A - PROTECTOR, BACK DOOR EDGE | ||||
| 67388-48010 |
ACU2#,MCU2# |
2 | ||
| 67388-48010 |
ACU2#,MCU2# |
2 | ||
| 75998G - STRIPE, QUARTER, LOWER RH | ||||
| 75998-48010 |
ACU2#,MCU2# |
1 | ||
| 75998-48010 |
ACU2#,MCU2# |
1 | ||
| 75999F - STRIPE, QUARTER, LOWER LH | ||||
| 75999-48010 |
ACU2#,MCU2# |
1 | ||
| 75999-48010 |
ACU2#,MCU2# |
1 | ||
| Common parts | ||||
| 90119-06442 | ||||
| 90119-06830 | ||||
| 90119-06869 | ||||
| 90159-60364 | ||||
| 90178-06011 | ||||
| 90179-08056 | ||||
| 90179-10015 | ||||
| 90189-06013 | ||||

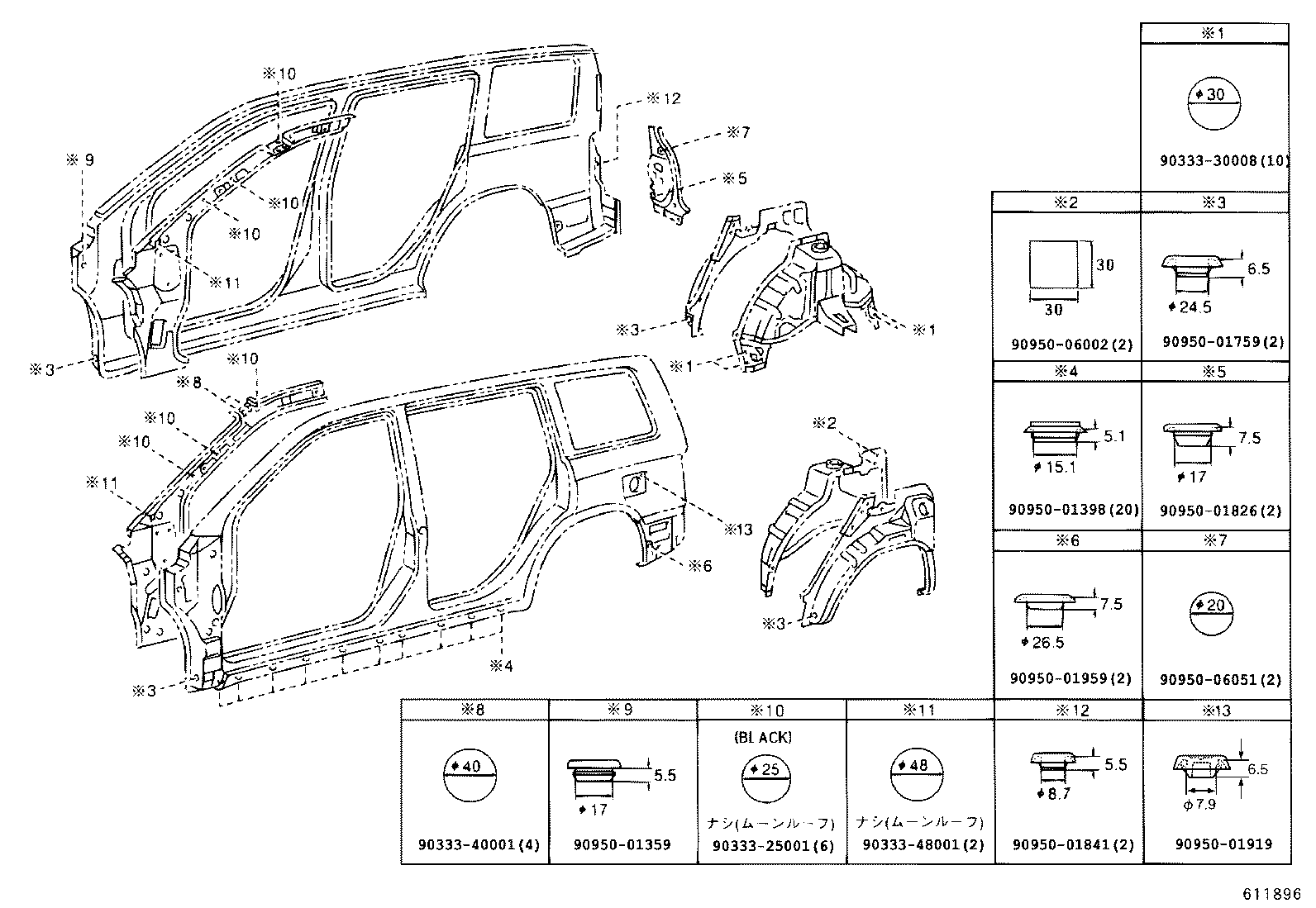

ILLUST NO. 2 OF 2(0308- )
ﾌﾟﾗｸﾞﾎ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90333-40001 | ||||
| 90333-48001 | ||||
| 90950-01359 | ||||
| 90950-01398 | ||||
| 90950-01759 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01919 | ||||
| 90950-01959 | ||||
| 90950-06002 | ||||
| 90950-06051 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
