MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )

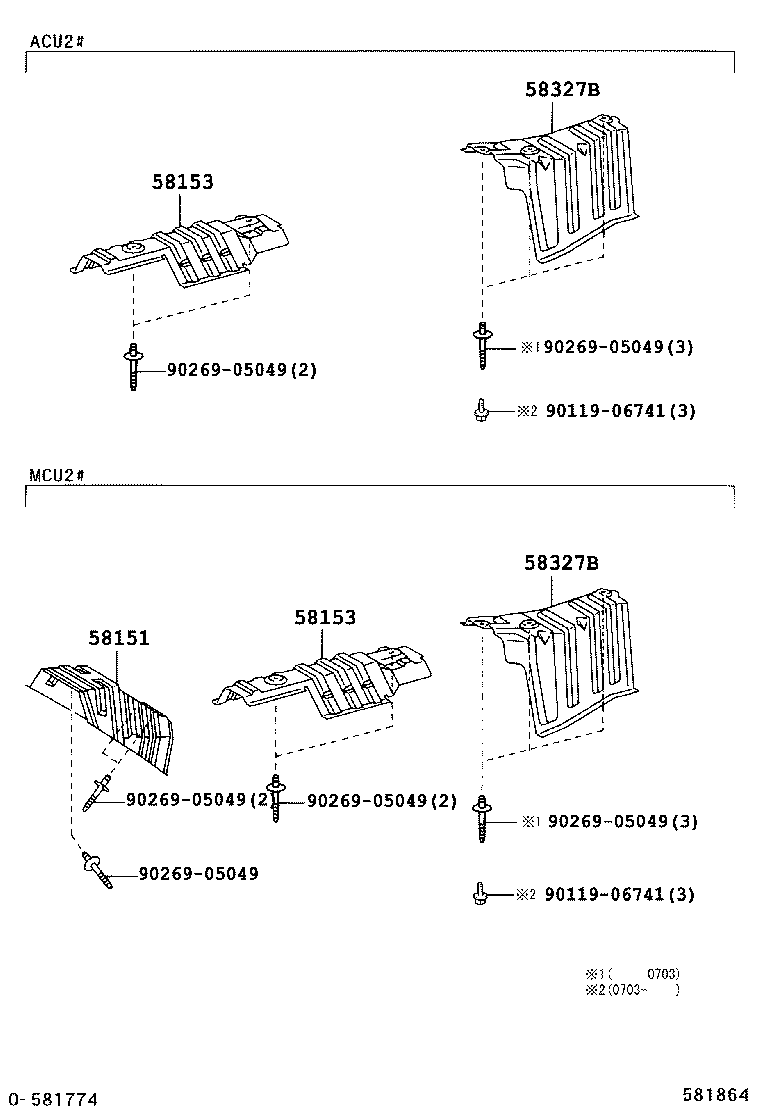

Click highlighted areas on diagram

diagram 58151 58153 58153 58327B 58327B 9011906741 9011906741 9026905049 9026905049 9026905049 9026905049 9026905049 9026905049
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-48020

MCU2#

 1
58151-48030

MCU2#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-48010

ACU2#,MCU2#

 1
58153-48020

ACU2#,MCU2#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-48010

ACU2#,MCU2#

 1
58153-48020

ACU2#,MCU2#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-48010

ACU2#,MCU2#

 1
58327-48030

ACU2#,MCU2#

 1
58327-48031

ACU2#,MCU2#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-48010

ACU2#,MCU2#

 1
58327-48030

ACU2#,MCU2#

 1
58327-48031

ACU2#,MCU2#

 1
Common parts
90119-06741
90269-05049
