MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

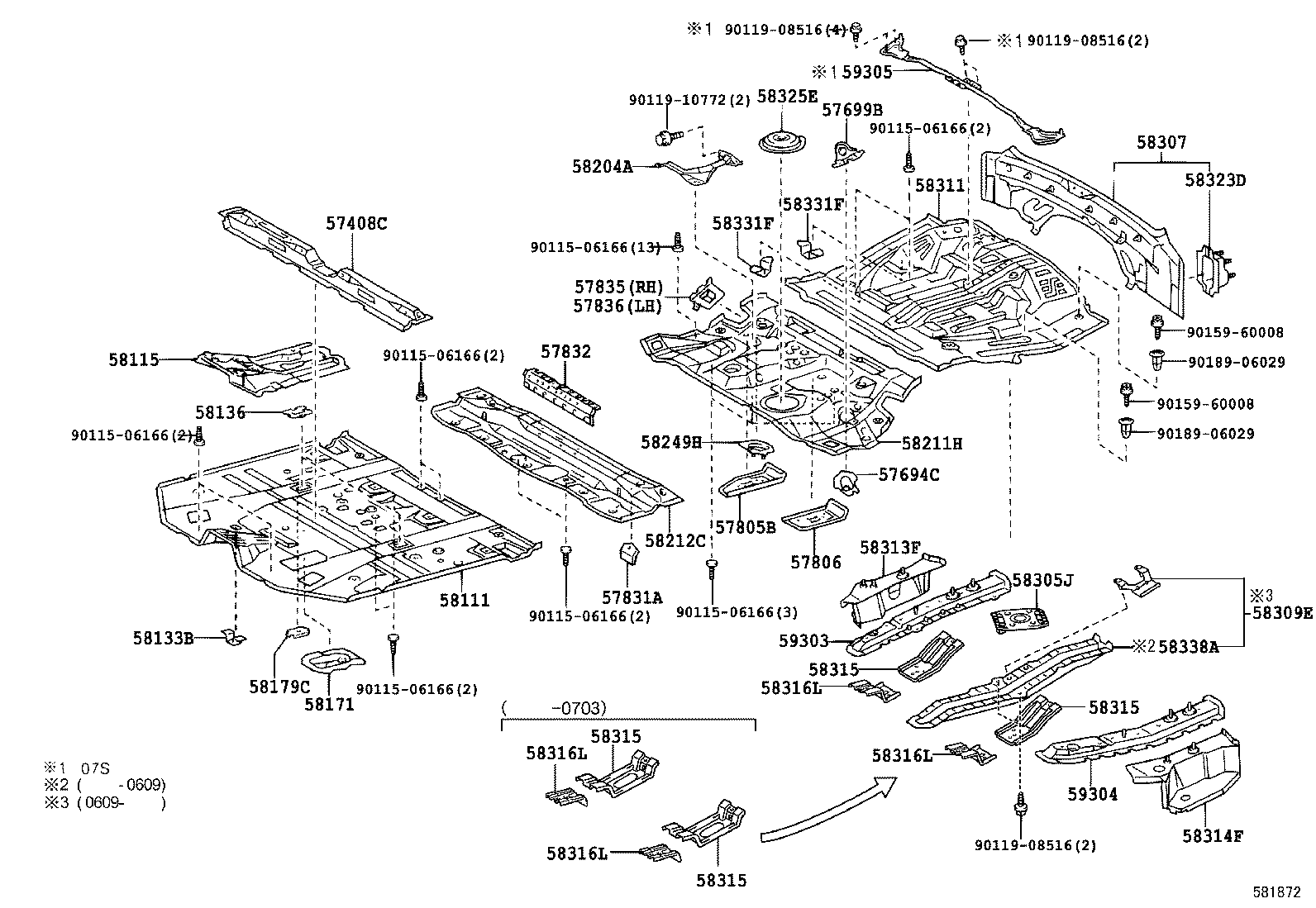

ILLUST NO. 1 OF 2(0308- )

Click highlighted areas on diagram

diagram 57408C 57694C 57699B 57805B 57806 57831A 57832 57835 57836 58111 58115 58133B 58136 58171 58179C 58204A 58211H 58212C 58249H 58305J 58307 58309E 58311 58313F 58314F 58315 58315 58315 58315 58316L 58316L 58316L 58316L 58323D 58325E 58331F 58331F 58338A 59303 59304 59305 9011506166 9011506166 9011506166 9011506166 9011506166 9011506166 9011506166 9011908516 9011908516 9011908516 9011910772 9015960008 9015960008 9018906029 9018906029
Part # Description Qty Price
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57451-48901

ACU2#,MCU2#

 1
58013-48010

ACU2#,MCU2#

 1
57694C - REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57693-48010

ACU2#,MCU2#

 1
57699B - REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57699-48010

ACU2#,MCU2#

 1
57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57805-48030

ACU2#,MCU2#

 1
57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57806-48010

ACU2#,MCU2#

 1
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-48010

ACU2#,MCU2#

 2
57831-48010

ACU2#,MCU2#

 2
57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57832-48020

ACU2#,MCU2#

 1
57832-48010

ACU2#,MCU2#

 1
57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57835-48020

ACU2#,MCU2#

 1
57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57836-48020

ACU2#,MCU2#

 1
58111 - PAN, FRONT FLOOR
58111-48907

ACU25,MCU25

 1
58111-48900

ACU2#,MCU2#

 1
58111-48912

ACU25,MCU25

 1
58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58115-48040

ACU2#,MCU2#

 1
58115-48030

ACU2#,MCU2#

 1
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-22040

ACU2#,MCU2#

ｾﾝﾀ

 1
58133-22040

ACU2#,MCU2#

 1
58133-22040

ACU2#,MCU2#

ﾘﾔ

 3
58136 - COVER, FRONT FLOOR HOLE
58136-48020

ACU2#,MCU2#

 2
58136-48030

ACU2#,MCU2#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-48010

ACU2#,MCU2#

 1
58171-48030

ACU2#,MCU2#

 1
58179C - BRACKET, CLAMP FLOOR
58179-48010

ACU2#,MCU2#

 1
58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58204-48020

ACU2#,MCU2#

 1
58204-48030

ACU2#,MCU2#

 1
58211H - PAN, CENTER FLOOR
58211-48903

ACU2#,MCU2#

 1
58211-48908

ACU2#,MCU2#

 1
58212C - PAN, CENTER FLOOR, FRONT
58212-48903

ACU2#,MCU2#

 1
58212-48904

ACU2#,MCU2#

 1
58249H - BRACKET, CENTER FLOOR BOARD SUPPORT
58249-48010

ACU2#,MCU2#

 1
58305J - BRACKET, SPARE WHEEL CARRIER
58305-48010

ACU2#,MCU2#

 1
58305-48011

ACU2#,MCU2#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-48040

ACU2#,MCU2#

 1
58307-48080

ACU2#,MCU2#

 1
58309E - PLATE SUB-ASSY, REAR FLOOR
58309-48010

ACU2#,MCU2#

 1
58309-48010

ACU2#,MCU2#

 1
58311 - PAN, REAR FLOOR
58311-48901

ACU2#,MCU2#

 1
58311-48905

ACU2#,MCU2#

 1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-48010

ACU2#,MCU2#

 1
58313-48050

ACU2#,MCU2#

 1
58313-48050

ACU2#,MCU2#

 1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-48010

ACU2#,MCU2#

 1
58314-48030

ACU2#,MCU2#

 1
58314-48030

ACU2#,MCU2#

 1
58315 - EXTENSION, REAR FLOOR PANEL
58315-48020

ACU2#,MCU2#

 2
58315-48011

ACU2#,MCU2#

 2
58315 - EXTENSION, REAR FLOOR PANEL
58315-48020

ACU2#,MCU2#

 2
58315-48011

ACU2#,MCU2#

 2
58315 - EXTENSION, REAR FLOOR PANEL
58315-48020

ACU2#,MCU2#

 2
58315-48011

ACU2#,MCU2#

 2
58315 - EXTENSION, REAR FLOOR PANEL
58315-48020

ACU2#,MCU2#

 2
58315-48011

ACU2#,MCU2#

 2
58316L - EXTENSION, REAR FLOOR SIDE PANEL, REAR
58316-48010

ACU2#,MCU2#

 2
58316-48020

ACU2#,MCU2#

 2
58316L - EXTENSION, REAR FLOOR SIDE PANEL, REAR
58316-48010

ACU2#,MCU2#

 2
58316-48020

ACU2#,MCU2#

 2
58316L - EXTENSION, REAR FLOOR SIDE PANEL, REAR
58316-48010

ACU2#,MCU2#

 2
58316-48020

ACU2#,MCU2#

 2
58316L - EXTENSION, REAR FLOOR SIDE PANEL, REAR
58316-48010

ACU2#,MCU2#

 2
58316-48020

ACU2#,MCU2#

 2
58323D - REINFORCEMENT, REAR BUMPER ARM SUPPORT
58324-48030

ACU2#,MCU2#

左側

 1
58323-48050

ACU2#,MCU2#

 2
58323-48040

ACU2#,MCU2#

右側

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-48010

ACU2#,MCU2#

 1
58325-48020

ACU2#,MCU2#

 1
58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58331-10011

ACU2#,MCU2#

 2
58331-10010

ACU2#,MCU2#

 2
58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58331-10011

ACU2#,MCU2#

 2
58331-10010

ACU2#,MCU2#

 2
58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2
58339-48010

ACU2#,MCU2#

 1
59303 - PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, RH
59303-48010

ACU2#,MCU2#

 1
59303-48010

ACU2#,MCU2#

 1
59304 - PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, LH
59304-48010

ACU2#,MCU2#

 1
59304-48010

ACU2#,MCU2#

 1
Common parts
90115-06166
90119-08516
90119-10772
90159-60008
90189-06029

ILLUST NO. 2 OF 2(0308- )

Click highlighted areas on diagram

ﾌﾟﾗｸﾞﾎ-ﾙ

diagram 8712848100 8712848100 9033320001 9033320001 9033320001 9095001808 9095001808 9095001813 9095001813 9095001833 9095001833 9095001901 9095001901 9095001901 9095001901 9095001901 9095001936 9095001936 9095001936 9095001948 9095001948 9095001948 9095001948 9095001948 9095001948 9095001948 9095001948 9095001948 9095001955 9095001955 9095001955 9095001957 9095001957 9095001958 9095001958 9095001958 9095001958 9095001959 9095001959 9095001959 9095001959 9095001959 9095001959 9095001959 9095001959 9095001959 9095001959
Part # Description Qty Price
Common parts
87128-48100
90333-20001
90950-01808
90950-01813
90950-01833
90950-01901
90950-01936
90950-01948
90950-01955
90950-01957
90950-01958
90950-01959
