MCU25W-BWAGK (2003)

Toyota Kluger L/V

Production Aug 2003 - May 2007
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

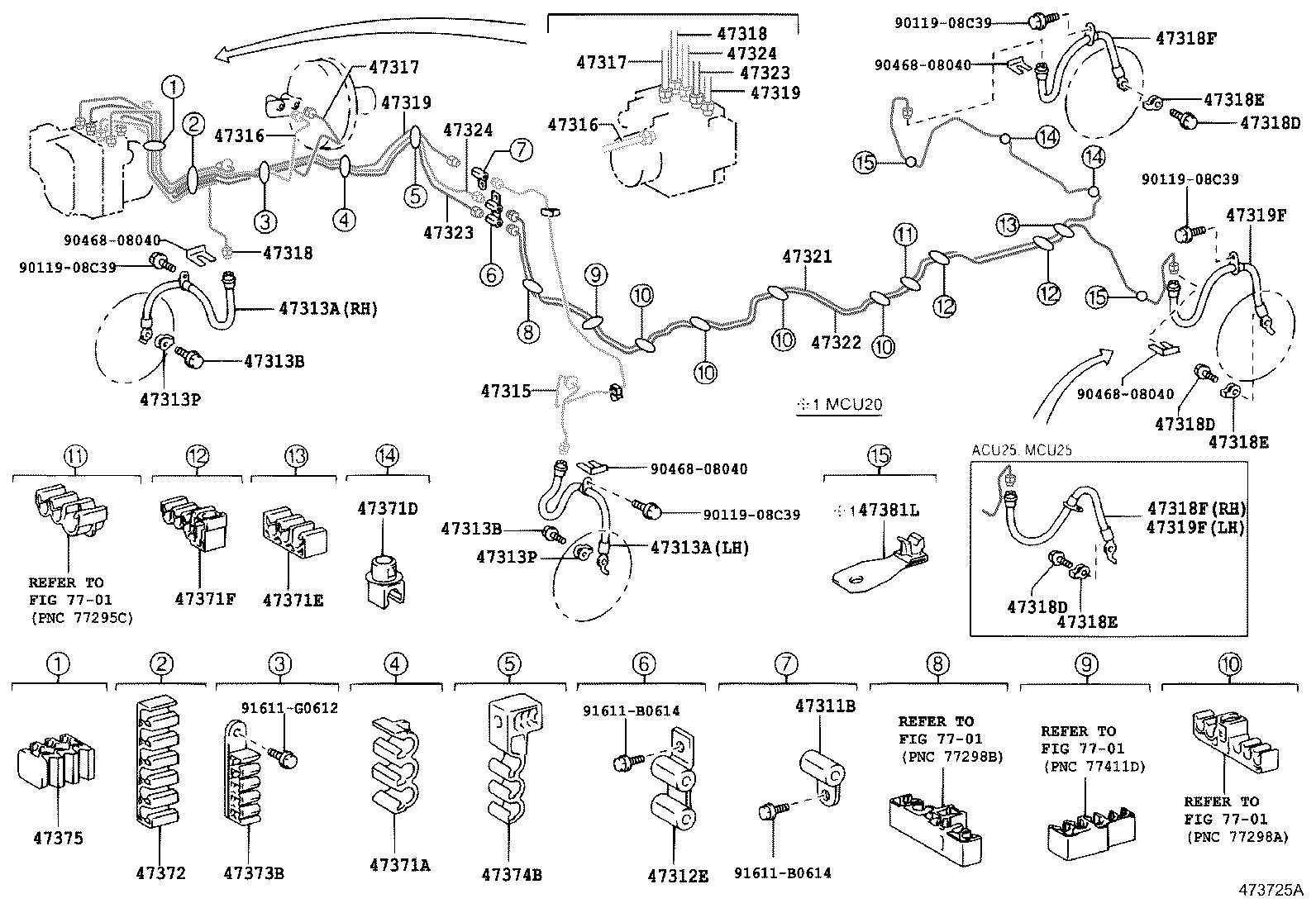

ILLUST NO. 1 OF 2(0308- )

Click highlighted areas on diagram

diagram 47311B 47312E 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47316 47317 47317 47318 47318 47318D 47318D 47318D 47318E 47318E 47318E 47318F 47318F 47319 47319 47319F 47319F 47321 47322 47323 47323 47324 47324 47371A 47371D 47371E 47371F 47372 47373B 47374B 47375 47375 47381L 7701 7701 7701 7701 9011908C39 9011908C39 9011908C39 9011908C39 9046808040 9046808040 9046808040 9046808040 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

ACU2#,MCU2#

 1
90412-10213

ACU2#,MCU2#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10246

ACU2#,MCU2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D50

ACU2#,MCU2#

右側

 1
90947-02A51

ACU2#,MCU2#

右側

 1
90947-02C60

ACU2#,MCU2#

左側

 1
90947-02D51

ACU2#,MCU2#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D50

ACU2#,MCU2#

右側

 1
90947-02A51

ACU2#,MCU2#

右側

 1
90947-02C60

ACU2#,MCU2#

左側

 1
90947-02D51

ACU2#,MCU2#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48040

ACU2#,MCU2#

 1
47315-48090

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48190

MCU2#

ｱﾘ(VSC)

 1
47316-48120

MCU2#

ｱﾘ(VSC)

 1
47316-48110

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48190

MCU2#

ｱﾘ(VSC)

 1
47316-48120

MCU2#

ｱﾘ(VSC)

 1
47316-48110

ACU2#,MCU2#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48120

MCU2#

ｱﾘ(VSC)

 1
47317-48190

MCU2#

ｱﾘ(VSC)

 1
47317-48110

ACU2#,MCU2#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48120

MCU2#

ｱﾘ(VSC)

 1
47317-48190

MCU2#

ｱﾘ(VSC)

 1
47317-48110

ACU2#,MCU2#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48050

ACU2#,MCU2#

 1
47318-48060

MCU2#

ｱﾘ(VSC)

 1
47318-48140

MCU2#

ｱﾘ(VSC)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48050

ACU2#,MCU2#

 1
47318-48060

MCU2#

ｱﾘ(VSC)

 1
47318-48140

MCU2#

ｱﾘ(VSC)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
90947-02D55

ACU25,MCU25

 1
90947-02E16

ACU25,MCU25

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
90947-02D55

ACU25,MCU25

 1
90947-02E16

ACU25,MCU25

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48170

MCU2#

ｱﾘ(VSC)

 1
47319-48100

MCU2#

ｱﾘ(VSC)

 1
47319-48090

ACU2#,MCU2#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48170

MCU2#

ｱﾘ(VSC)

 1
47319-48100

MCU2#

ｱﾘ(VSC)

 1
47319-48090

ACU2#,MCU2#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
90947-02D56

ACU25,MCU25

 1
90947-02E17

ACU25,MCU25

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
90947-02D56

ACU25,MCU25

 1
90947-02E17

ACU25,MCU25

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48020

ACU2#,MCU2#

 1
47321-48040

ACU2#,MCU2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48050

ACU2#,MCU2#

 1
47322-48030

ACU2#,MCU2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48110

ACU2#,MCU2#

 1
47323-48120

MCU2#

ｱﾘ(VSC)

 1
47323-48190

MCU2#

ｱﾘ(VSC)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48110

ACU2#,MCU2#

 1
47323-48120

MCU2#

ｱﾘ(VSC)

 1
47323-48190

MCU2#

ｱﾘ(VSC)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48120

MCU2#

ｱﾘ(VSC)

 1
47324-48110

ACU2#,MCU2#

 1
47324-48190

MCU2#

ｱﾘ(VSC)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48120

MCU2#

ｱﾘ(VSC)

 1
47324-48110

ACU2#,MCU2#

 1
47324-48190

MCU2#

ｱﾘ(VSC)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00778

ACU2#,MCU2#

 1
47371-48100

ACU2#,MCU2#

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90469-07017

ACU2#,MCU2#

 2
47371E - CLAMP, BRAKE TUBE, NO.9
90464-00857

ACU2#,MCU2#

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D05

ACU2#,MCU2#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01C85

ACU2#,MCU2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-48040

ACU2#,MCU2#

 1
47371-48040

ACU2#,MCU2#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D02

ACU2#,MCU2#

 1
47371-48050

ACU2#,MCU2#

 2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-33010

MCU2#

 1
90949-01969

ACU2#,MCU2#

 1
90949-01969

MCU2#

ｱﾘ(VSC)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47372-33010

MCU2#

 1
90949-01969

ACU2#,MCU2#

 1
90949-01969

MCU2#

ｱﾘ(VSC)

 1
Common parts
90119-08C39
90468-08040
91611-B0614
91611-G0612
Linked diagrams
7701

ILLUST NO. 1 OF 2(0308- )MCU2#

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 47311B 47312E 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47316 47317 47317 47318 47318 47318D 47318D 47318D 47318E 47318E 47318E 47318F 47318F 47319 47319 47319F 47319F 47321 47322 47323 47323 47324 47324 47371A 47371D 47371E 47371F 47372 47373B 47374B 47375 47381L 7701 7701 7701 7701 9011908C39 9011908C39 9011908C39 9011908C39 9046808040 9046808040 9046808040 9046808040 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10213

ACU2#,MCU2#

 1
90412-10213

ACU2#,MCU2#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10246

ACU2#,MCU2#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D50

ACU2#,MCU2#

右側

 1
90947-02A51

ACU2#,MCU2#

右側

 1
90947-02C60

ACU2#,MCU2#

左側

 1
90947-02D51

ACU2#,MCU2#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02D50

ACU2#,MCU2#

右側

 1
90947-02A51

ACU2#,MCU2#

右側

 1
90947-02C60

ACU2#,MCU2#

左側

 1
90947-02D51

ACU2#,MCU2#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-48040

ACU2#,MCU2#

 1
47315-48090

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48190

MCU2#

ｱﾘ(VSC)

 1
47316-48120

MCU2#

ｱﾘ(VSC)

 1
47316-48110

ACU2#,MCU2#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-48190

MCU2#

ｱﾘ(VSC)

 1
47316-48120

MCU2#

ｱﾘ(VSC)

 1
47316-48110

ACU2#,MCU2#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48120

MCU2#

ｱﾘ(VSC)

 1
47317-48190

MCU2#

ｱﾘ(VSC)

 1
47317-48110

ACU2#,MCU2#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-48120

MCU2#

ｱﾘ(VSC)

 1
47317-48190

MCU2#

ｱﾘ(VSC)

 1
47317-48110

ACU2#,MCU2#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48050

ACU2#,MCU2#

 1
47318-48060

MCU2#

ｱﾘ(VSC)

 1
47318-48140

MCU2#

ｱﾘ(VSC)

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-48050

ACU2#,MCU2#

 1
47318-48060

MCU2#

ｱﾘ(VSC)

 1
47318-48140

MCU2#

ｱﾘ(VSC)

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ACU2#,MCU2#

 2
90401-10058

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ACU2#,MCU2#

 2
47389-50020

ACU2#,MCU2#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
90947-02D55

ACU25,MCU25

 1
90947-02E16

ACU25,MCU25

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02970

ACU25,MCU25

 1
90947-02D55

ACU25,MCU25

 1
90947-02E16

ACU25,MCU25

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48170

MCU2#

ｱﾘ(VSC)

 1
47319-48100

MCU2#

ｱﾘ(VSC)

 1
47319-48090

ACU2#,MCU2#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47319-48170

MCU2#

ｱﾘ(VSC)

 1
47319-48100

MCU2#

ｱﾘ(VSC)

 1
47319-48090

ACU2#,MCU2#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
90947-02D56

ACU25,MCU25

 1
90947-02E17

ACU25,MCU25

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02971

ACU25,MCU25

 1
90947-02D56

ACU25,MCU25

 1
90947-02E17

ACU25,MCU25

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-48020

ACU2#,MCU2#

 1
47321-48040

ACU2#,MCU2#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-48050

ACU2#,MCU2#

 1
47322-48030

ACU2#,MCU2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48110

ACU2#,MCU2#

 1
47323-48120

MCU2#

ｱﾘ(VSC)

 1
47323-48190

MCU2#

ｱﾘ(VSC)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-48110

ACU2#,MCU2#

 1
47323-48120

MCU2#

ｱﾘ(VSC)

 1
47323-48190

MCU2#

ｱﾘ(VSC)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48120

MCU2#

ｱﾘ(VSC)

 1
47324-48110

ACU2#,MCU2#

 1
47324-48190

MCU2#

ｱﾘ(VSC)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-48120

MCU2#

ｱﾘ(VSC)

 1
47324-48110

ACU2#,MCU2#

 1
47324-48190

MCU2#

ｱﾘ(VSC)

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00778

ACU2#,MCU2#

 1
47371-48100

ACU2#,MCU2#

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90469-07017

ACU2#,MCU2#

 2
47371E - CLAMP, BRAKE TUBE, NO.9
90464-00857

ACU2#,MCU2#

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01D05

ACU2#,MCU2#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01C85

ACU2#,MCU2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-48040

ACU2#,MCU2#

 1
47371-48040

ACU2#,MCU2#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D02

ACU2#,MCU2#

 1
47371-48050

ACU2#,MCU2#

 2
47375 - CLAMP, BRAKE TUBE, NO.5
47372-33010

MCU2#

 1
90949-01969

ACU2#,MCU2#

 1
90949-01969

MCU2#

ｱﾘ(VSC)

 1
Common parts
90119-08C39
90468-08040
91611-B0614
91611-G0612
Linked diagrams
7701

ILLUST NO. 2 OF 2(0308- )MCU2#

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 44540 44545D 44545D 44546A 44546A 44546A 44590 9009905277 9009905277 9017908249 9164180818
Part # Description Qty Price
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-48120

MCU25

 1
44050-48030

MCU2#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ACU2#,MCU2#

 2
44545-42020

MCU2#

ｱﾘ(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

ACU2#,MCU2#

 2
44545-42020

MCU2#

ｱﾘ(VSC)

 2
44545-42090

ACU2#,MCU2#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

ACU2#,MCU2#

 3
44546-42090

ACU2#,MCU2#

 3
44546-42020

MCU2#

ｱﾘ(VSC)

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-48030

ACU2#,MCU2#

 1
44590-48110

MCU2#

ｱﾘ(VSC)

 1
44590-48050

MCU2#

ｱﾘ(VSC)

 1
Common parts
90099-05277
90179-08249
91641-80818
